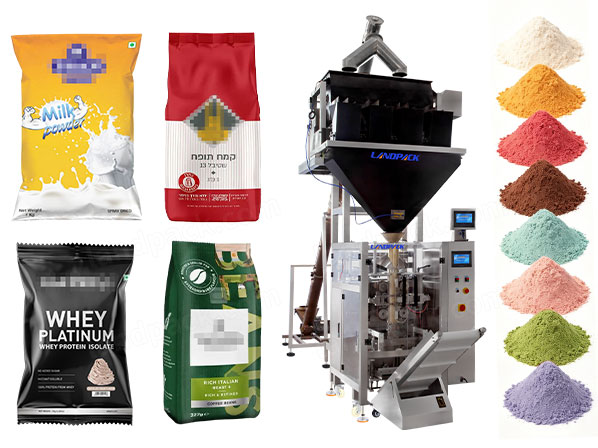

Automatic Powder Pouch VFFS Packing Machine Linear Weigher Weighing Packing Machine

Description:

This Powder Pouch Packing Machine is suitable for soybean powder, almond powder, protein powder, collagen powder, coffee powder, cocoa powder, nutritional powder, meal replacement powder, peanut powder, grain powder, oat powder, plant protein powder, seasoning powder, herbal powder, pharmaceutical powder, and other fine or semi-free-flowing powder materials.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This Powder Pouch Packing Machine is suitable for pillow bags, back-seal bags, gusset bags, quad-seal bags, block bottom bags, powder sachets, retail powder pouches, nutritional supplement packaging bags, coffee powder bags, protein powder bags, and customized laminated film packaging formats.

Machine Details:

Working Process

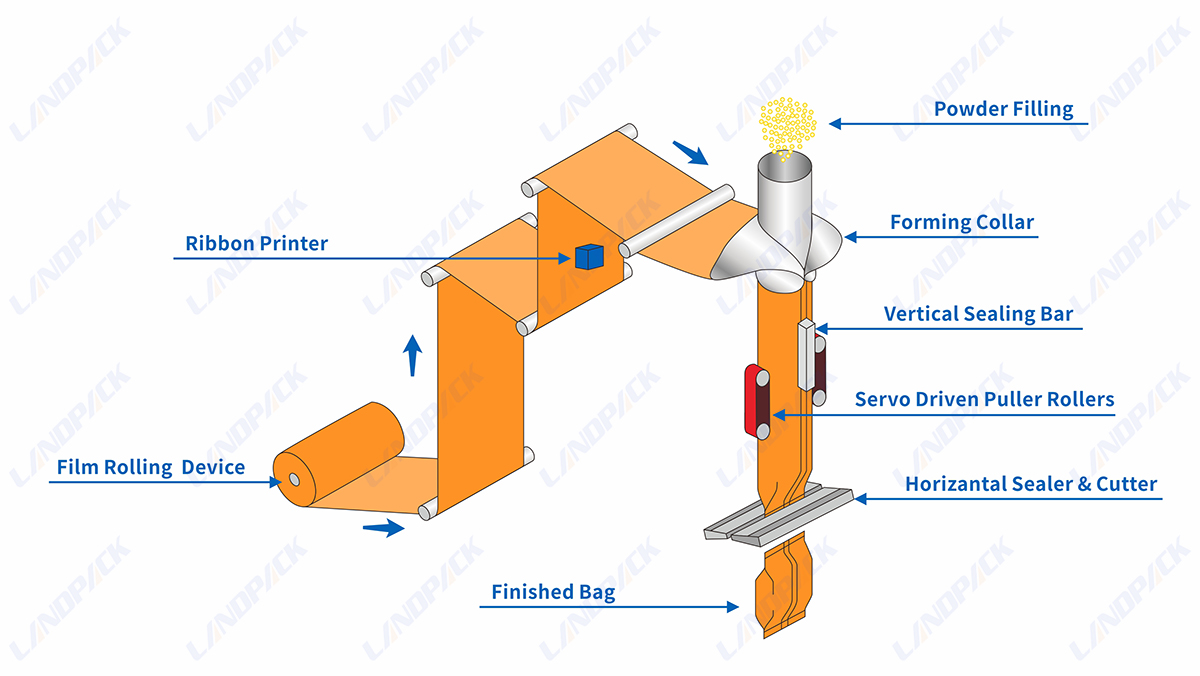

1. Automatic Screw Feeding → Dual-Auger Linear Weighing → Film Feeding & Bag Forming → Gusset Forming → Powder Filling → Heat Sealing → Cutting → Finished Product Output

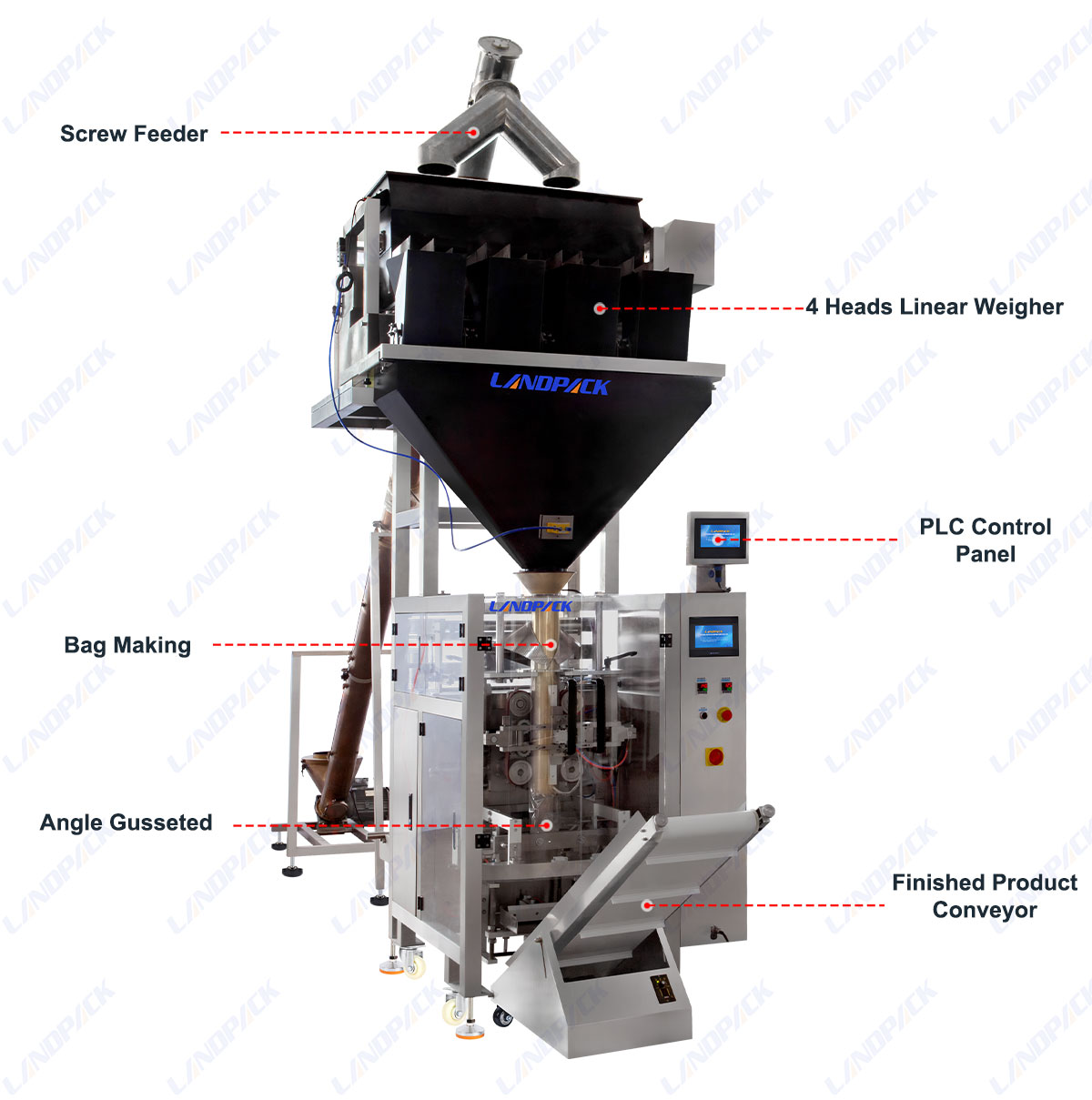

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Model	LD-420AS	LD-520AS	LD-620AS	LD-720AS
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Packaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30bag/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW

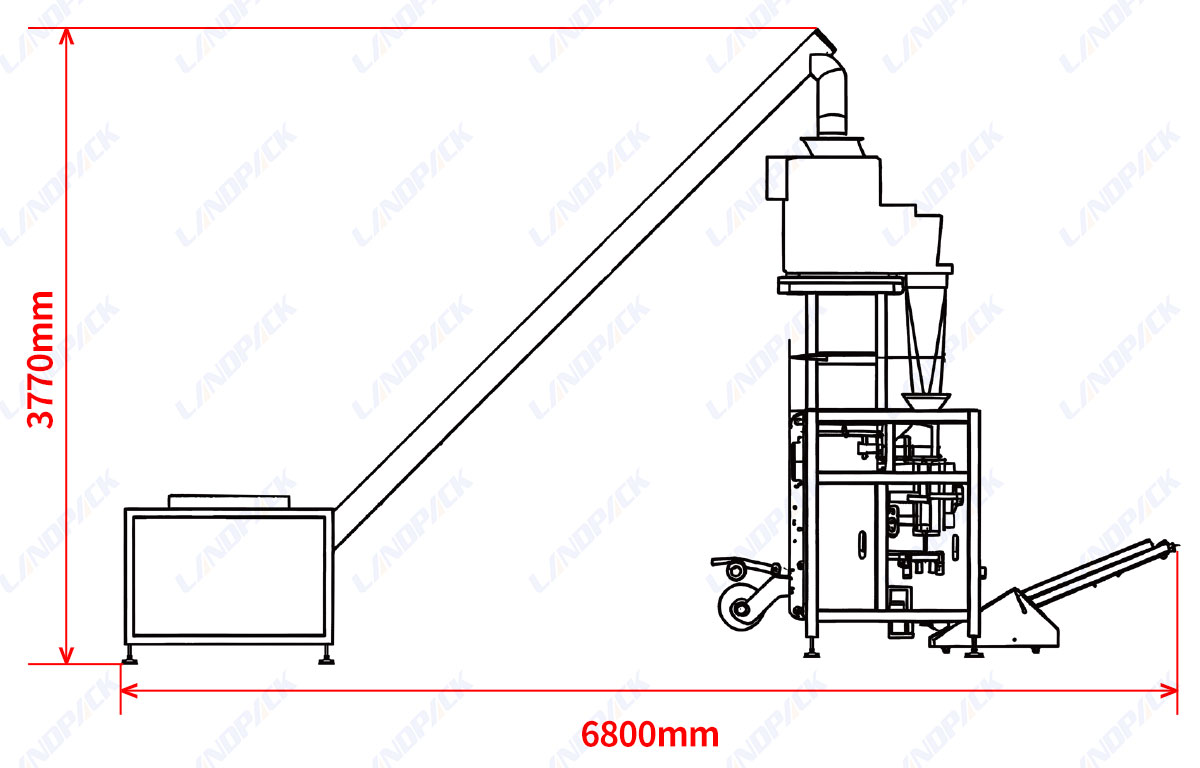

Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)

Features:

1. Open-cover screw conveyor design allows quick cleaning and convenient maintenance.

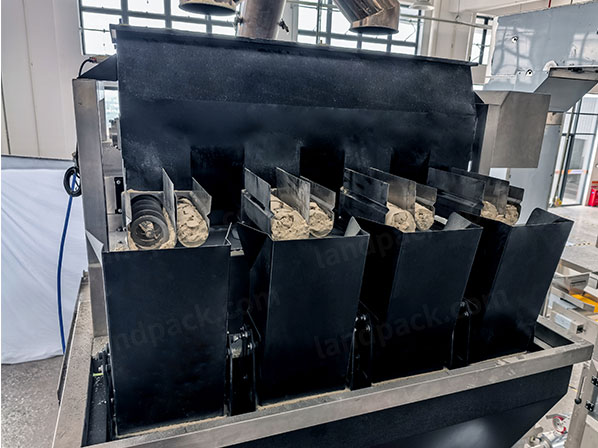

2. Customized dual-auger linear weigher provides accurate weighing performance for soybean powder, almond powder, and other fine powders.

3. All product contact parts are coated with food-grade Teflon to reduce powder adhesion and improve weighing consistency.

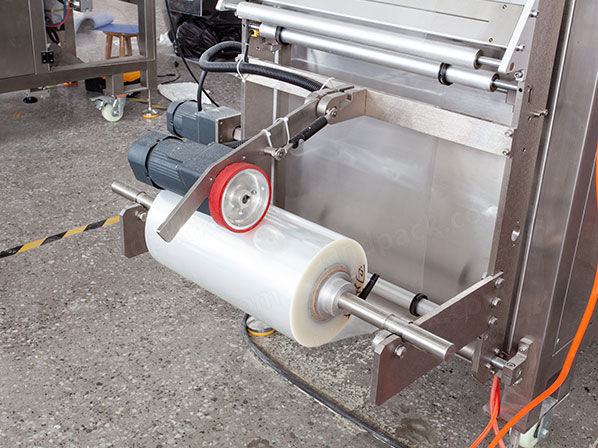

4. Servo-driven film pulling system ensures stable operation and accurate bag length control.

5. Gusseted pillow bag design creates attractive retail packaging with improved bag capacity.

6. Automatic bag forming, filling, sealing, and cutting are completed in one continuous process.

7. Independent temperature-controlled sealing system delivers clean and reliable seals for powder packaging.

8. PLC touchscreen control system supports easy operation, recipe management, and parameter adjustment.
