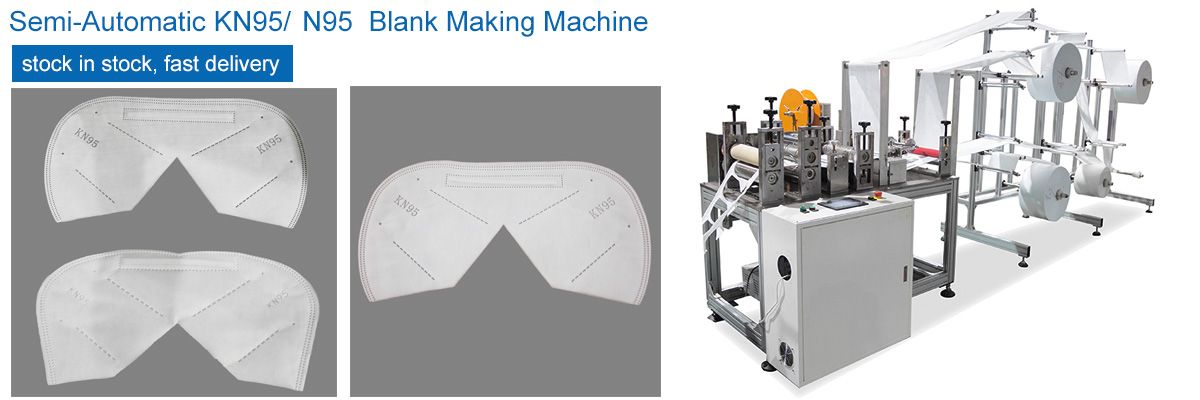

Multifunction N95 Mask Blank Making Machine

Multifunction N95/ KN95 Mask Blank Making Machine

Application:
This machine is mainly used for the automatic forming of face masks.

Details:

Capacity：50-80 pcs/min

PP nonwovens size：260mm width * 40g; 600mm reel length

Cotton filter size：：260mm width * 25g; 600mm reel length

Melt-brown fabric size：260mm width * 25g; 600mm reel length

Nonwoven size：260mm width * 40g; 600mm reel length

Ear loop size：3-5mm width

Nose bridge：Dual-core metal strip 5mm

Power supply：220V 50/60Hz, 8.5KW

Air pressure：0.6-0.8 MPA

Features:

Machine PLC control

The production capacity reaches 50-80 tablets per minute

The folding position can be adjusted, and the fold shape can be changed the guide device

The machine structure is all aluminum alloy

Can produce3~ 5 layers of non-woven Blank mask

Automatic function of nonwoven feeding, nose bridge inserting, pattern welding, ear loop welding, mask fabric forming & folding and mask shape cutting.

Adopting advanced brand components in pneumatic parts and electric parts, which ensure machine performance.

Mask shape can be customized per client's sample.

Simple structure in linear type ,easy in installation and maintainance. Machine stable performance and constant operation is available with over 99% qualified mask output.

Application:

This machine is mainly used for the automatic forming of face masks.

The entire roll of fabric is driven by rollers after unwinding. The fabric is automatic bending, hemming, the nose strip is cut automatic and then passed through the ultrasonic sealing fabric. The mask fabric with nose strip sealing parts will be cut and formed by a cutter. The whole process is automatically controlled. Only one person is required to operate this machine.

The scientific and reasonable mechanical transmission configuration makes this machine extremely efficient. The special welding wheel and cutter wheel design have good abrasion resistance and greatly increase the service life of the product.

Samples:

Specification:

Capacity	50-60 pcs/min
PP nonwovens size	260mm width * 40g; 600mm reel length
Cotton filter size	260mm width * 25g; 600mm reel length
Melt-brown fabric size	260mm width * 25g; 600mm reel length
Nonwoven size	260mm width * 40g; 600mm reel length
Ear loop size	3-5mm width
Nose bridge	Dual-core metal strip 5mm
Power supply	220V 50/60Hz, 8.5KW
Air pressure	0.6-0.8 MPA

Advantage:

Automatic feeding

Welding the edges of the mask

Automatic upper bridge line

Ultrasonic fusion
