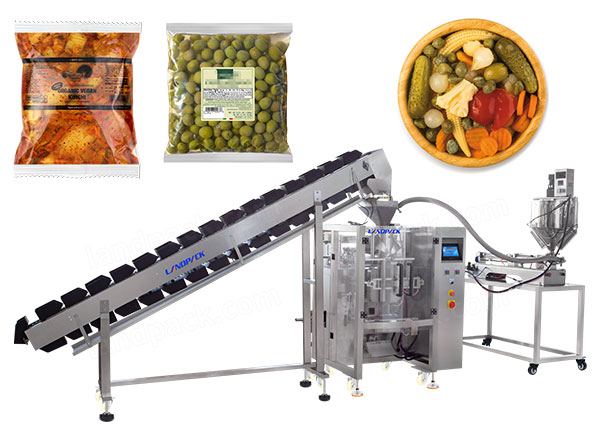

Pickles Packing machine | Vertical Form Fill Seal

Application:

The vertical packing machine is designed to pack products that combine solid pieces and liquid in one pouch, making it ideal for pickled vegetables in brine, mixed fruit in syrup, olives with marinade, diced mango or pineapple in sugar syrup.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

The pickles packing machine supports back sealing pouches, pillow pouches, and gusset pouches, all formed from roll film for stable and continuous production. These pouch types are well suited for products containing both solid particles and liquid sauces.

Wide Application Range

The VFFS machine integrates dual dosing systems for solids and liquids, allowing fruits and syrups to be filled into the same pouch with high accuracy and no cross-contamination.

Food Industry

• fruit-in-syrup packs (pineapple chunks, peach slices, mixed fruit), pickled vegetables (cucumbers, olives, kimchi portions), beans or chickpeas in sauce, ready-to-eat vegetable mixes with dressing.

Condiment & Sauce Industry

• solid ingredients with liquid bases such as chili pieces in oil, garlic in vinegar, herb blends in marinade.

Processed & Convenience Foods

• pre-cooked meal components, soup ingredients with broth, instant side dishes combining solids and liquids.

Machine Details:

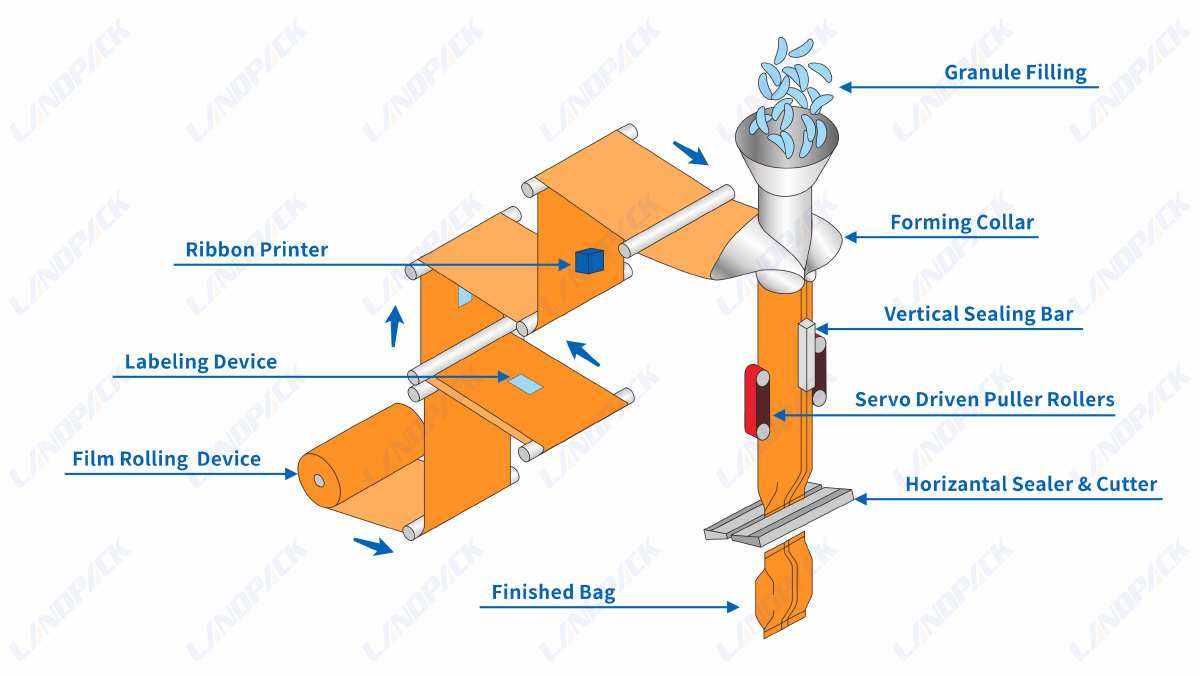

Working Process

1. Granule Feeding → 2. Liquid Dosing → 3. Bag Forming & Filling → 4. Sealing & Cutting → 5. Output

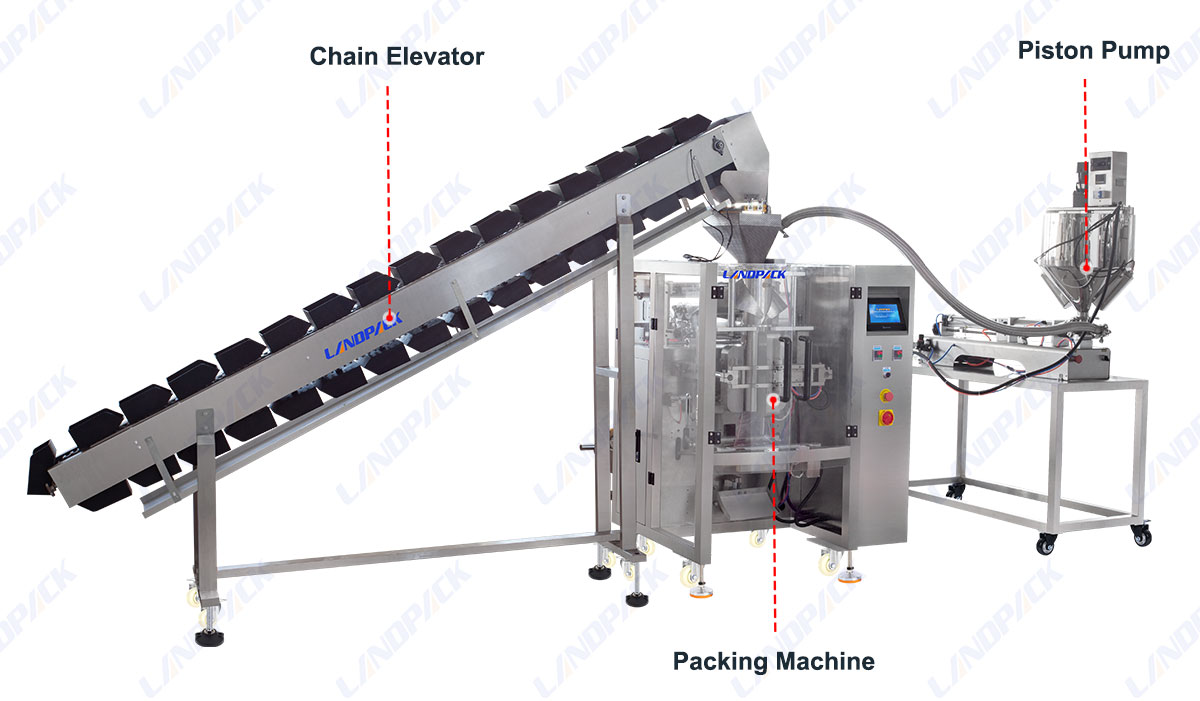

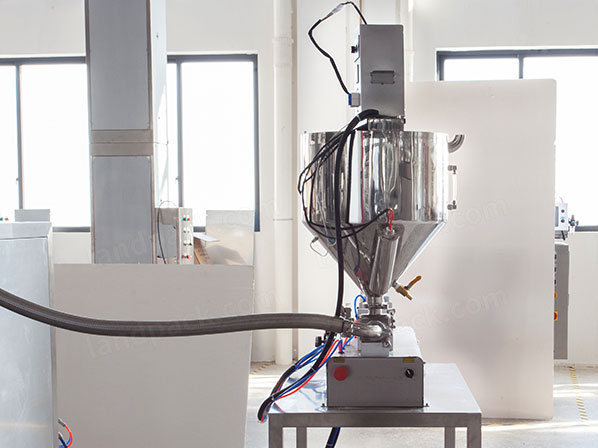

Key Component

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

Machine Image	Benefits

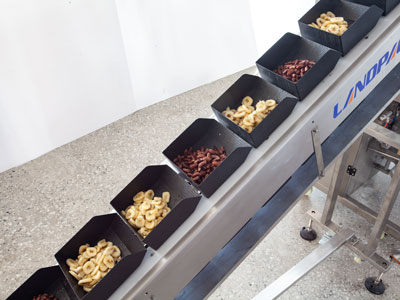

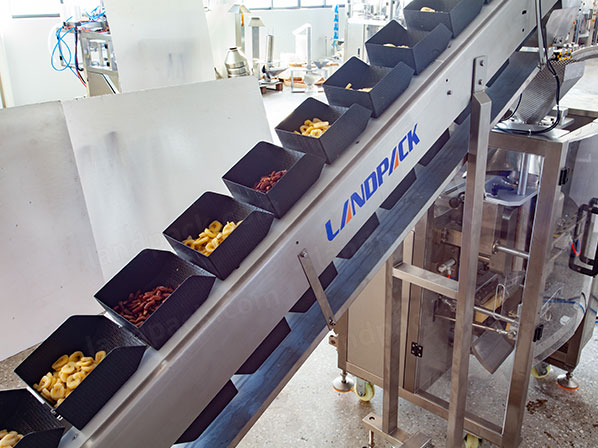

	Teflon Patterned Plate Bucket Teflon-coated patterned chain bucket keeps sticky substances and fruits from sticking, which ensures an easy discharge and steady feeding.

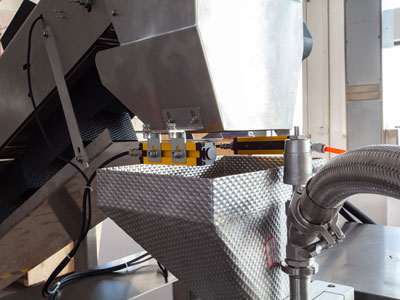

	Clean Tray Feeder design with Syrup Collection. A baffle is placed under the tray feeder in order to store syrup leftover from fruit to keep the machine clean and ensuring a clean work environment.

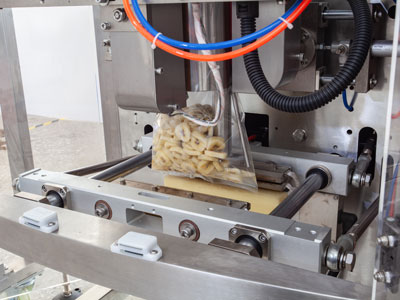

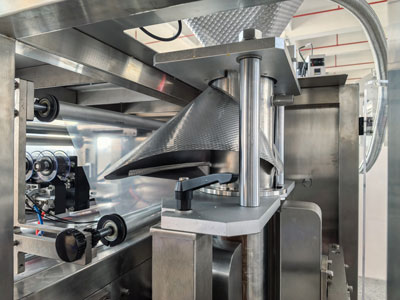

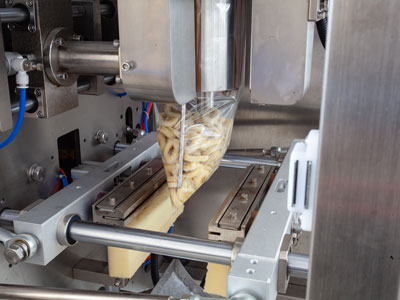

	Secondary Structure for Film Pulling Double film pulling reduces syrup splashing when filling, significantly increasing sealing quality.
	Secure Solid-Liquid Packaging Capability It is designed to handle granules and other particles, when combined with brine or syrup. The machine guarantees an even filling process and consistent packaging in every bag.

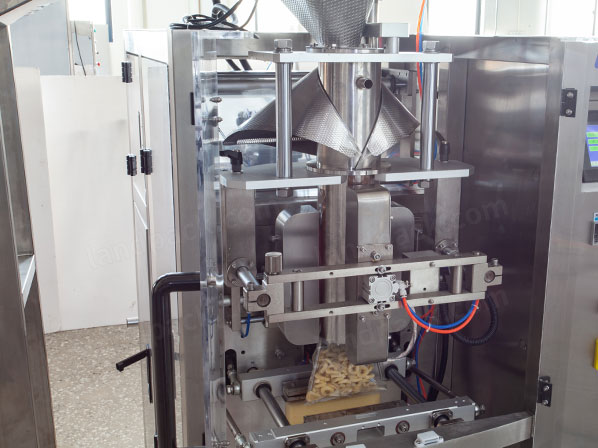

	Stable Vertical Packing Operations The specially designed vertical form-fill seal structure ensures a uniform bag shape precise positioning and constant running, even when working with fluids that are viscous or uneven materials
	Easy maintenance and high adaptability Modular components and an open functional design make this machine a good fit for a variety of recipes. It is also easy for cleaning, adjusting as well as maintain over the long term use.
