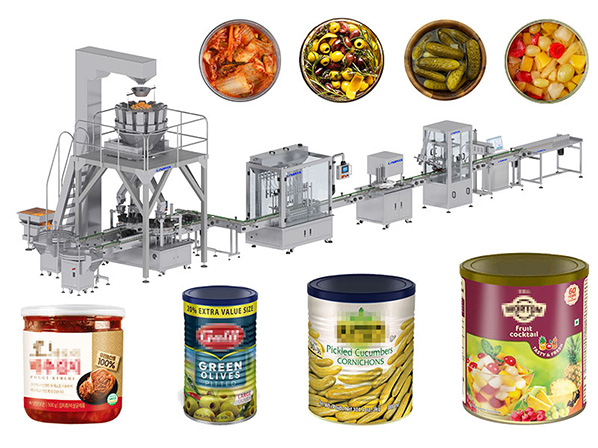

Automatic Can Filling Line Pickle Kimchi Archar Pickle Filling Machine Line

Application:

In addition to fruit canning, this pickle filling machine is also well suited for pickled products that require combined solid and liquid filling. Typical applications include a wide range of pickled vegetables, such as kimchi (napa cabbage kimchi, radish kimchi, cucumber kimchi), pickled mustard greens, pickled cabbage, pickled turnips, pickled carrots.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This filling line supports a wide range of metal cans, aluminum cans, and tin, jars, suitable for kimchi, pickled cucumbers, pickled cabbage, pickled radish, mixed pickles

Wide Application Range

The pickled fruit canning filling line combines bottle unscrambling, 14-head combination weigher, dual rotary granule filling machine, 10 heads liquid filling, can sealing, capping, coding, and finished product collection into a fully automated system. It is specially designed for:

Fruit canned products

• Canned peaches, pineapples, pears, lychees, mangoes, and fruit cocktails

Vegetables in brine or sauce

• Pickled bamboo shoots, pickled peppers, olives, and mixed pickles

Solid–liquid combination foods

• Preserved vegetables in sauce, marinated side dishes, and ready-to-eat fermented food packs

Machine Details:

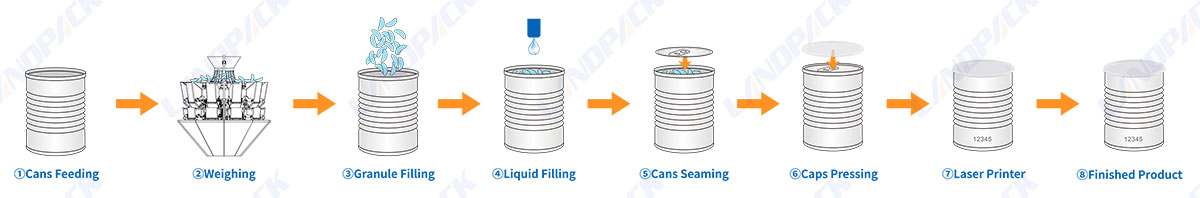

Working Process

1. Cans Feeding → 2. Weighing → 3. Granule Filling → 4. Liquid Filling → 5. Cans Seaming → 6. Cap Pressing→ 7. Laser Printer→ 8. Finished Product Output

Key Component

Specification

Automatic Bottle Feeder

Machine Model LD-LP800N

Power Supply 220V/110V, 50-60Hz, 200W

Turntable Diameter 800mm

Suitable Bottle Diameter 20-100mm

Suitable Bottle Height 30-320mm

Working Speed 40-60 bottles/min (depending on bottle size)

Package Size 1230*1010*1260 mm

Gross Weight 141kg

Automatic Grunale Filling Machine

Model LF-ZP-10

Output 20-30 bottles/min

Bottle diameter Ф30mm-Ф135mm (customizable)

Bottle height 40mm-200mm (customizable)

Power 750W, 220V, 50Hz

Weight 200kg

Automatic Liquid Pump Filling Machine

Model LD-YTZL4A

Filling head 10 Heads

Air pressure 0.5-0.8MPa

Liquid level accuracy ±1mm

Viscosity range <20Cps (static viscosity)

Working speed 30-60 Bottles/Min

Machine size About 1600*1150*1530mm

Machine weight About 298kg

Package size About 1660*1310*1670mm

Automatic Can Sealing Machine

Number of sealed cans 1

Sealing speed 15-24 bottles/min

Can sealing height 50-200mm

Applicable bottle diameter 50-126mm

Power 0.55KW

Weight 130KG

Size 400*600*1450mm

Voltage 220V, 50/60Hz

Automatic Plastic Lids Pressing Machine

Seal Can diameter φ40-φ130mm (can be customised)

Bottle's height 60-300mm(can be customized)

Cap's height 5-15mm

Speed 30-50 Cans/min (can be customised)

Storage can cover about 100pcs

Machine Size 1900x800x1700 mm

Power 220V/380V, 0.68KW

Air Pressure 0.6MPa

Laser Printer

Print range 100*100mm

Positioning way Infrared focusing

Focuslens focal length 150mm

Speed Max10000mm/s (can be customised)

Laser fiber laser generator

Machine voltage 220V (can be customised)

Machine size 825*545*1425mm

Machine weight 60kg

Features:

Machine Image	Benefits

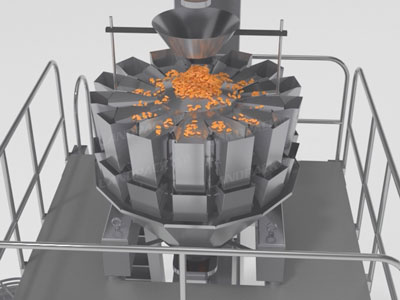

	14-Head Combination Weigher for Solids Provides highly accurate measurements for fruits, vegetables, or other solid ingredients to guarantee consistent portion sizes. Minimize material waste during high-speed production to preserve product appearance.

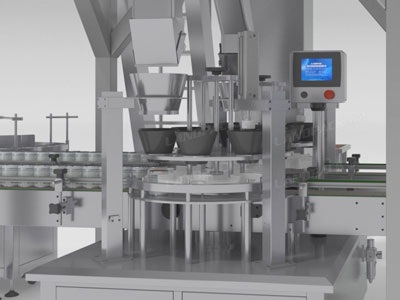

	Dual Rotary Filling Machines for Solids Fills pickle products efficiently and gently into containers without crushing or damaging delicate items, supporting simultaneous operation to increase throughput while still maintaining uniform presentation and weight accuracy.

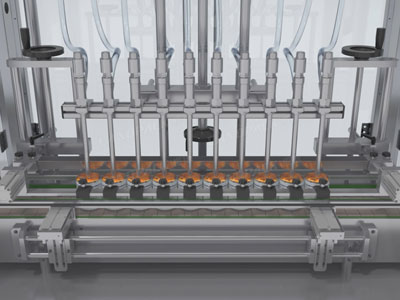

	10-Head Liquid Filling System Precisely dispense brines, or other liquids with high consistency and maintaining the ideal solid-to-liquid ratio in each container.

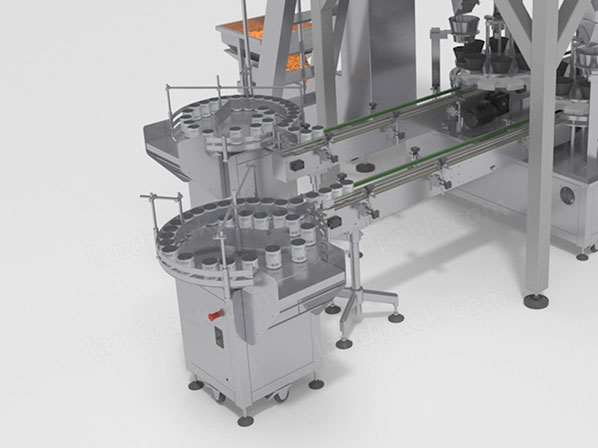

	Automatic Can/Glass Arranging and Feeding Automatically organizes and feeds containers onto the production line, eliminating misalignment and blockages and minimizing manual labor needs

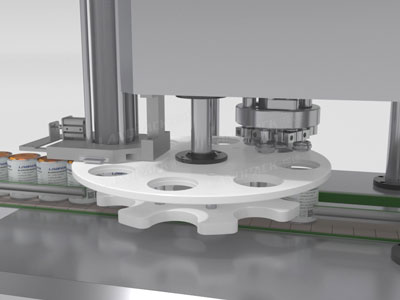

	Sealing and Capping Mechanisms Secure, leakproof sealing and capping solutions for cans, jars and bottles of various container types are provided here to preserve hygiene, preserve freshness and extend shelf life effectively.

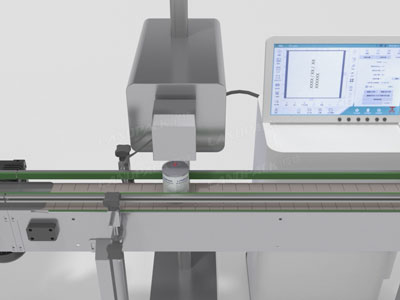

	Integrated Coding System Accurately prints batch numbers, production dates, and expiration dates on every container to improve traceability, support quality control, and meet regulatory standards.
