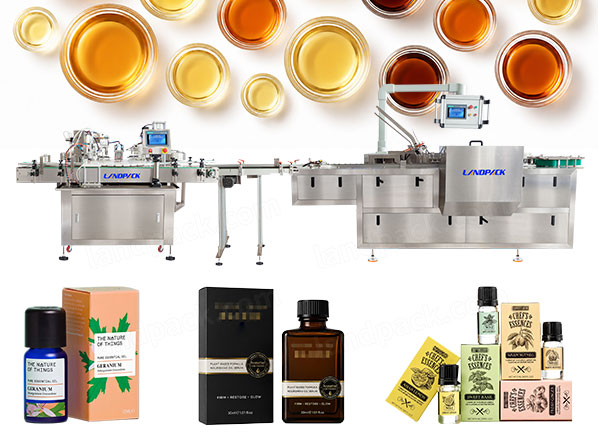

Automatic Essential Oil Perfume Vials Eyedrop Dropper Bottles Liquid Filling Capping Cartoning Machine Line

Application:

The Automatic Essential Oil Filling Capping Machine is suitable for Essential oil bottles, aromatherapy oil, massage oil, plant extract oil, Serum bottles, facial oil, beauty essence, skincare liquid, Eye drops, oral liquid, herbal extract, small-dose medicinal liquid, Perfume vials, fragrance liquid, concentrated liquid products.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Automatic Essential Oil Filling Capping Machine is suitable for glass vials, dropper bottles, perfume bottles, PET bottles and small cosmetic containers.Compatible with different closures including dropper caps, pipette caps, screw caps and customized bottle lids.

Videos Introduction:

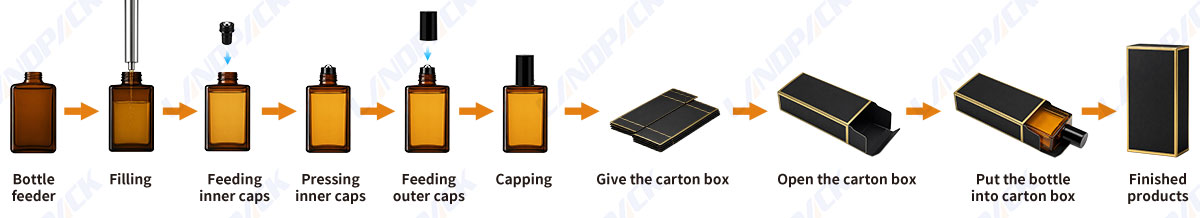

Working Process

1. Bottle Feeding → Liquid Filling → Cap Feeding → Capping → Carton Forming → Bottle Loading → Carton Sealing → Finished Product Output

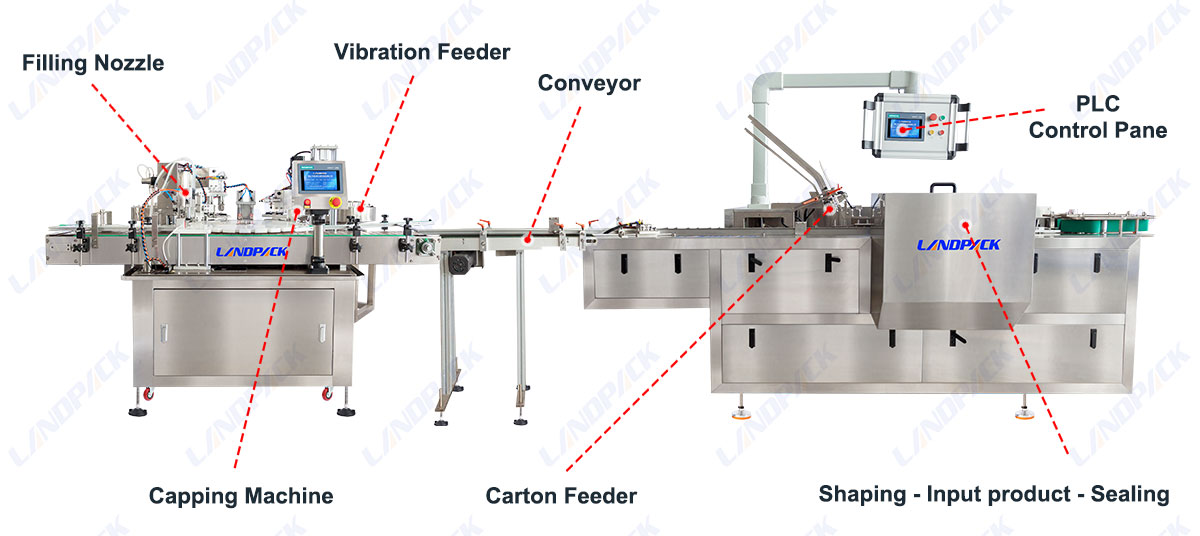

Key Component

Specification

Item	Specification
Filling Method	Magnetic Drive Pump Filling
Filling Heads	2 Heads
Filling Range	5–100 ml
Filling Accuracy	±1%
Production Speed	30–50 Bottles/Min
Applicable Products	Essential Oil, Perfume Oil, Serum and Other Low-Viscosity Liquids
Control System	PLC with Touch Screen
Contact Material	SS316 Stainless Steel
Power Supply	220V / 50Hz

Model		LD-80A	LD-80L
Cartoning speed		30-70 Cartons/min	20-60 Cartons/min
Carton	Quality requirement	250-450g/m2(According to box dimensions)
	Dimension range (LxWxH)	L:90-250mm W:50-200mm H:20-80mm	L:120-360mm W:50-260mm H:20-90mm
Compressed air	Working pressure	≥0.6Mpa
	Air consumption	20m'
Power supply		220V/50HZ
Motor Power		8kw
Machine dimension(Lx Wx H)		5970mm x 1610mm x 2262mm	6236mm x 1867mm x 2262mm
Machine weight		1800kg	2000kg

Features:

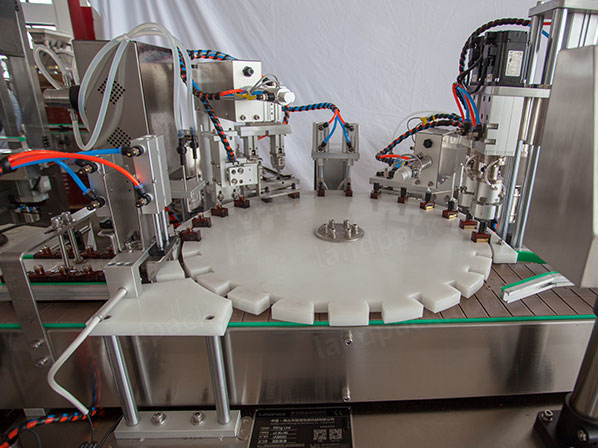

1. Rotary filling and capping integrated machine saves production space and improves packaging efficiency.

2. Magnetic pump filling system provides high accuracy with low maintenance requirements.

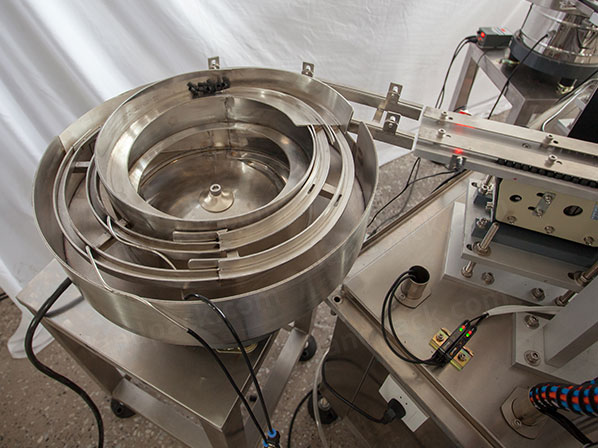

3. Automatic inner and outer cap feeding reduces manual operation and improves automation.

4. Double-head working stations increase production speed and packaging capacity.

5. Automatic connection with cartoning machine enables continuous bottle packaging production.

6. Touchscreen control panel displays production data clearly and supports multilingual operation.

7. Customized star wheel and electric eye detection ensure stable bottle transfer and accurate positioning.

8. Adjustable filling nozzles and torque-controlled capping system adapt to different bottle and cap specifications.
