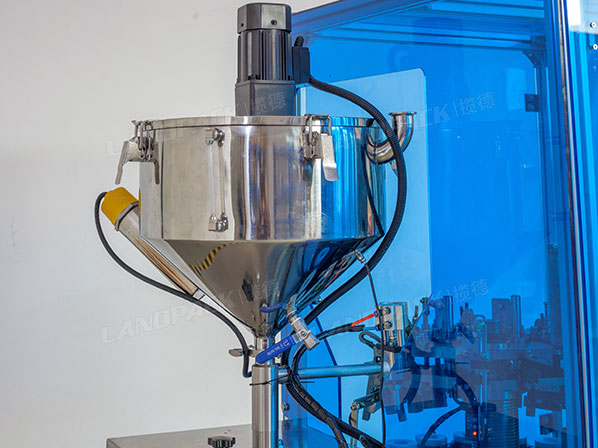

Automatic Paste Aluminium Tube Filling And Sealing Machine With Dust Cover

Application:

The automatic aluminum tube filling machine is suitable for paste materials, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid. The outrigger mechanism of the machine is made of aluminum alloy and stainless steel, equipped with dust cover.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Process:
Inquiry
Features:

1.Compact design and auto tube feed. Driving part fully-closed.

2.All conducted by a fully auto control system.

3.Tube washing and feeding conducted pneumatically, accurate and reliable.

4.Auto picketage affected by photoelectric inductance.

5.Easy adjustment and dismantling.

6.With easy and quick adjustment, it is suitable for using multiple kinds of soft tubes for filling.

7.The part contacting materials is made of 316L stainless steel, clean, sanitary and conforming to CMP for medicine manufacture.

8.With safety device, the machine is shut down when the door is opened and filling carried out only with tubes fed. Overload protection provided.
Application:

The automatic aluminum tube filling machine is suitable for paste materials, ointment, adhesive, AB glue, epoxy glue, skin cream, hair dye, shoe polish, toothpaste and other liquid. The outrigger mechanism of the machine is made of aluminum alloy and stainless steel, equipped with dust cover.
Videos Introduction:
Specification:
Model
LFF-ZWS-008
Tube material Aluminum / Metal tube
Tube diameter
φ15—φ70
Tube length 50—180(customizable)
Filling volume
40—60ml/pcs(adjustable)
Filling accuracy ≤±1%
Product capacity
3600—43600 pcs/h(adjustable)
Working pressure
0.55—0.65Mpa
Motor power
2KW (380V/220V 50Hz/60Hz, three phase)
Working Position
10Automatic Aluminum Tube Filling And Sealing Machine with Cover Pcs
Process:

1.Tube washing.

2.Feeding marking identification.

3.Filling.

4.Folding.

5.Sealing.

6.Code printing.

7.Finished product output.
