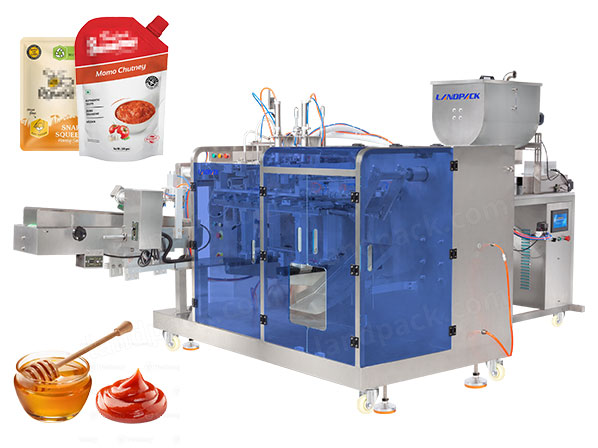

Mayonnaise Packing Machine | Spout Pouch Filling Sealing Machine

Application:

This spout pouch filling machine is ideal for handling thick, viscous condiments such as mayonnaise, salad dressings, cheese sauces, and flavored pastes, while also supporting broader categories like sauces & condiments, ready-to-eat food, and processed food ingredients.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine supports a wide range of premade pouch types commonly used for viscous sauces and pastes, including stand-up pouches, spout pouches, zipper pouches, flat pouches, doypacks, and custom-shaped premade bags.

Wide Application Range

A horizontal premade pouch packing machine, equipped with dual filling nozzles and a 50L U-shaped hopper, is designed for clean, precise, and efficient filling of viscous sauces：

Condiments & Sauces

• mayonnaise, salad dressing, mustard, ketchup, garlic paste

Thick Food Pastes

• peanut butter, tahini, cheese spread, chocolate paste

Cooking & Prepared Ingredient Pastes

• soybean paste, chili paste, curry paste, seasoning paste

Machine Details:

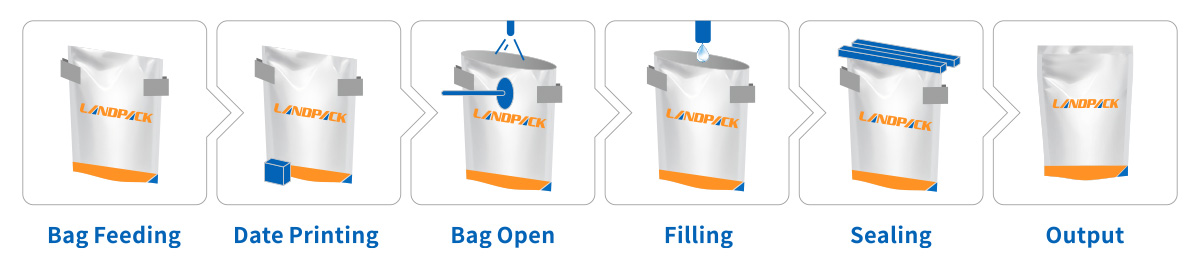

Working Process

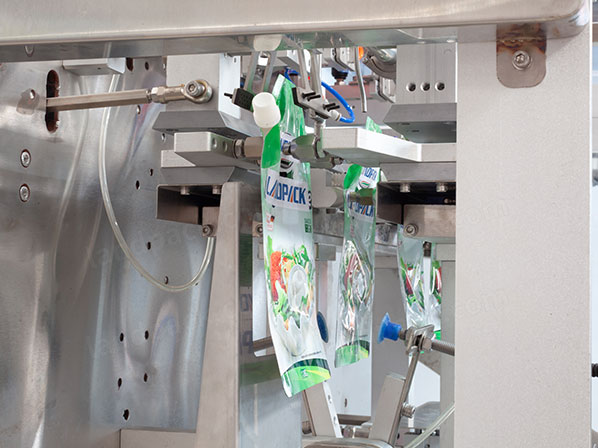

1. Horizontal type empty bags feeding mechanism → 2. Opening the top and bottom of the bags → 3. Filling nozzle 1 → 4. Filling nozzle 2 → 5. Hot sealing 1 → 6. Hot sealing 2→ 7. Outlet

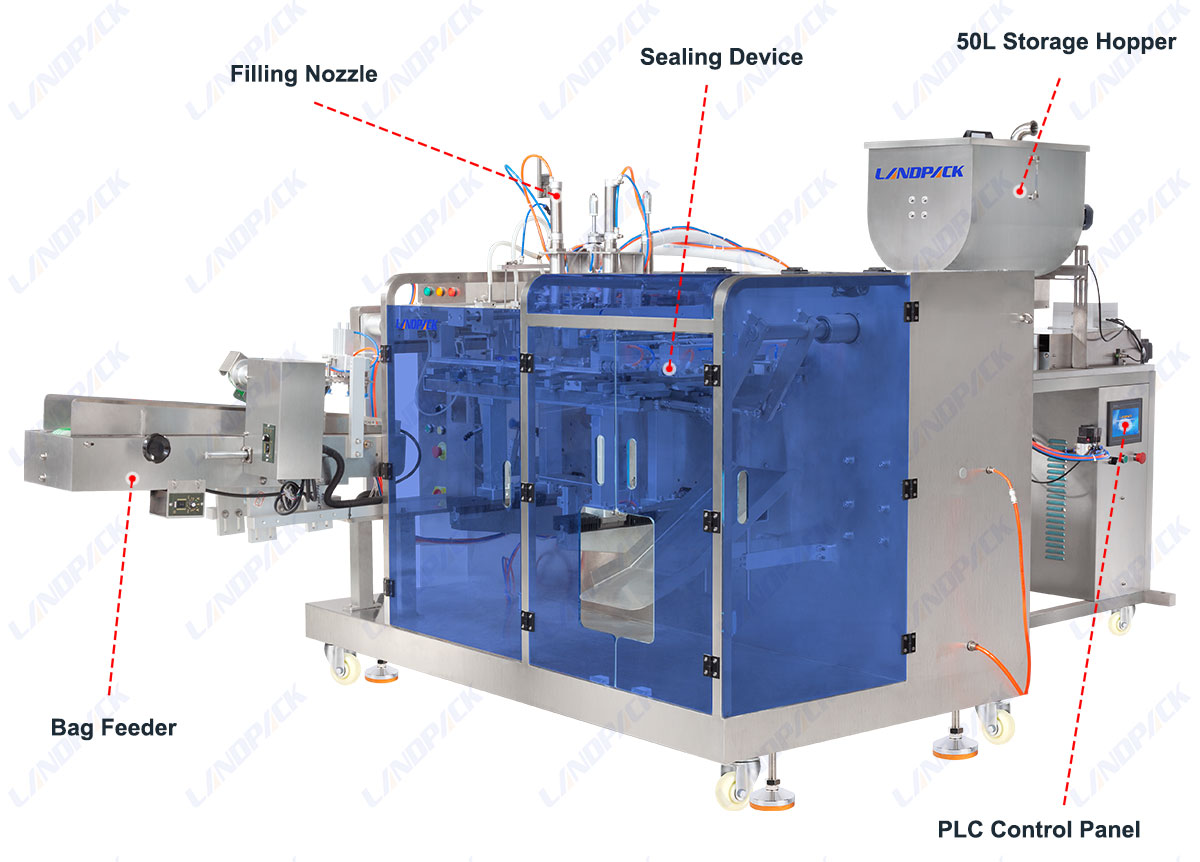

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Type LDSP-160 LDSP-160Y LDSP-210 LDSP-260

Bag Type 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.

Bag Size 110-230mm*80-160mm(L*W) 70-100mm*110-230(L*W) 100-210mm/110-320mm（L*W） 100-260mm/110-320mm（L*W）

Filling Range 10g-100g 10g-100g 10g-1kg 10g-3kg

Packing Speed 20-45bags/min(speed is determined
by the product filling quantity) 25-50bags/min(speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity) 20-50bags/min (speed is determined
by the product filling quantity)

Machine weight 800KG 800KG 900KG 1000KG

Total Power 2.0KW 2.0KW 2.0KW 2.0KW

Work Flow 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling
5.Heating sealing 6.Output of product

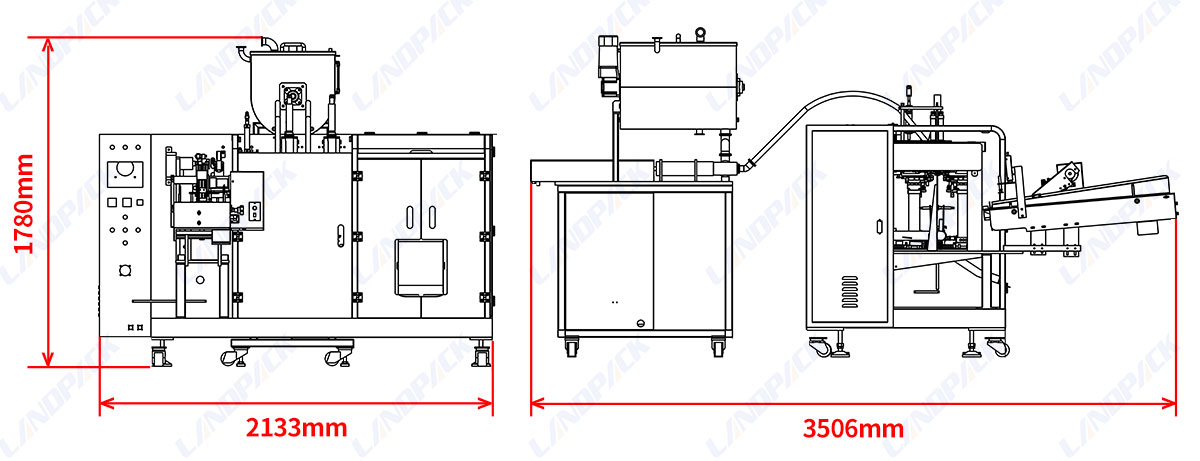

Dimensions 1750mm X 1285mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H) 2140mm X 1366mm X 1360mm(L*W*H)

Collocation Screw metering,screw elevator

Features:

Machine Image	Benefits

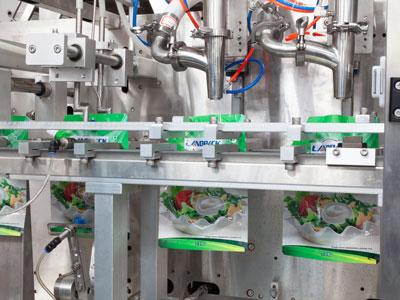

	Dual Filing Nozzles to Maximize Throughput Equipped with two synchronized filling nozzles, this machine can fill two pouches simultaneously for increased throughput; perfect for viscous products like mayonnaise and sauces.

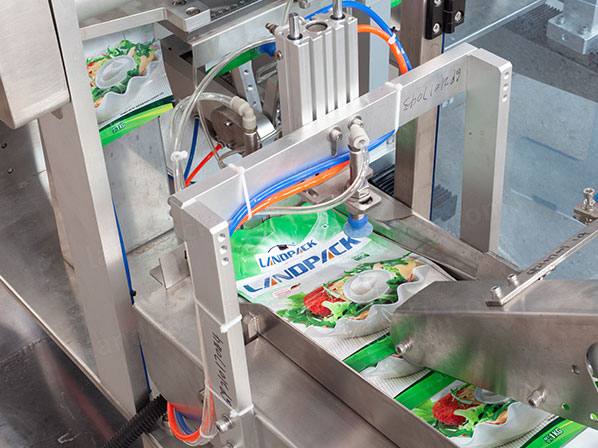

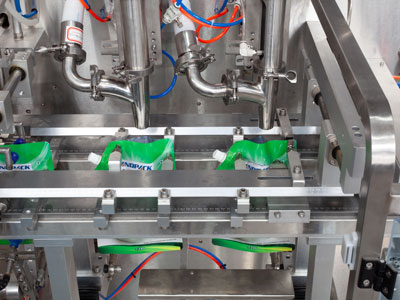

	Anti-Drip Air-Blowing Function for Clean Filling Each nozzle incorporates an anti-drip air-blowing system which prevents post-fill dripping to ensure clean pouch mouths

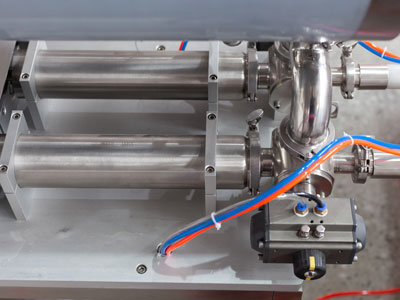

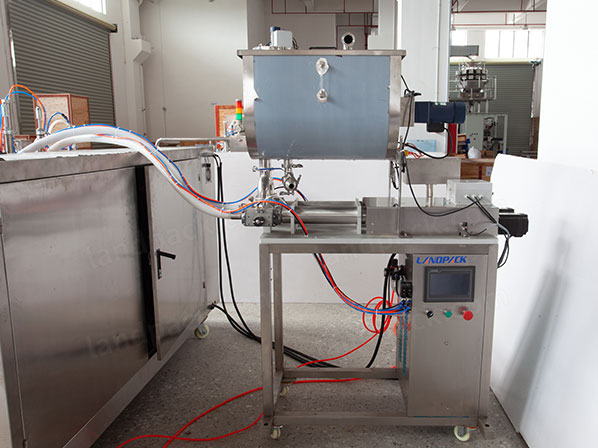

	Filling System with Servo-Driven Piston Pump To achieve high accuracy and easy adjustment, our filling system utilizes a servo-controlled piston pump, offering precise dosing with smooth operation and simple viscosity adjustment

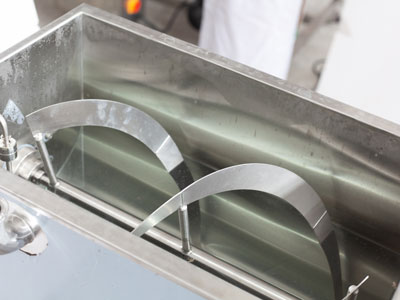

	50L U-Shaped Hopper with Stable Feeding of Thick Products Our 50L U-shaped storage hopper allows for consistent feeding of thick liquids and pastes, reducing refill frequency.

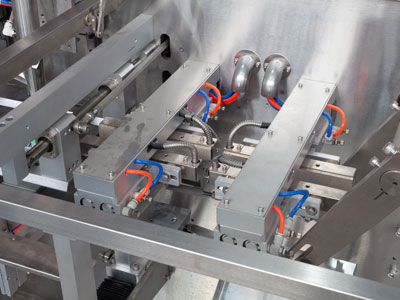

	Double Heat Sealing Structure for Robust Seals Our machine employs a two-stage heat sealing process which produces firm, uniform seals with no leakages

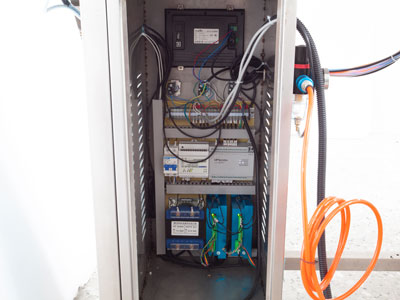

	Branded Components for Long-term Stability All electrical and control components come from trusted international brands to increase the durability, stability, and service life.

Learn More:

1.If you need more Mayonnaise Filling Machine for your product , read our-- Mayonnaise Filling Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator
