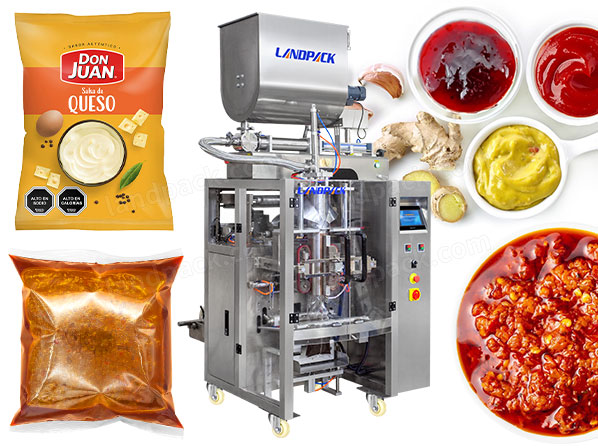

Automatic Ginger Garlic Chili Paste Sauce Pillow Bag Vertical Packing Machine

Application:

This vertical bagging packing machine is used for filling and packing detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Working Process:

Features:

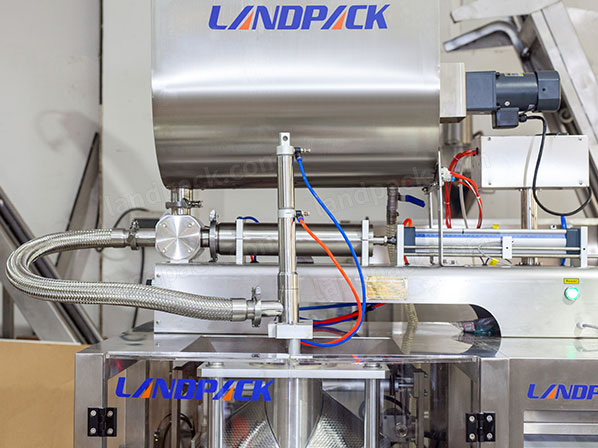

1.LD-420L high temperature hot sauce filling machine.

2.Stainless Steel 304 Stroge Hopper.

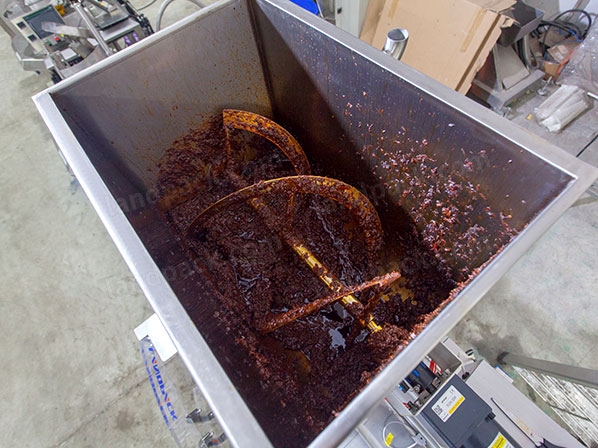

3.Thermal device & Stirring Device.

4.Ribbon Code Printer.

5.Food grade high temperature durable tube.

6.Chain Bag device can flexible change quanitity.

7.Protect Cover to ensure worker safety.

Application:

This vertical bagging packing machine is used for filling and packing detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste.

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Working Process:

1. Weighing

2. Measuring

3. Bag making

4. Filling

5. Sealing

6. Cutting

7. Product conveyance
