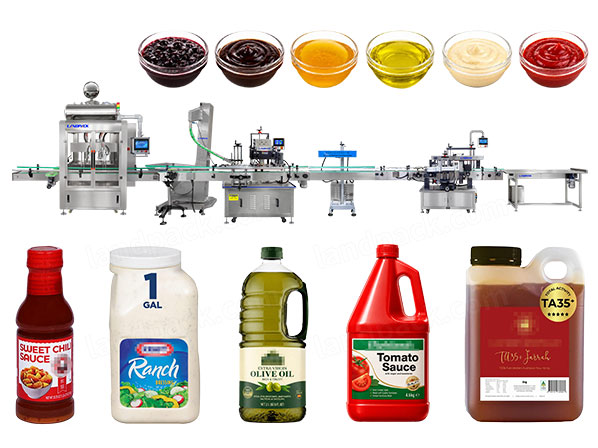

Fully Automatic Chili Sauce Filling Capping Sealing Labeling Machine With CIP System

Application:

This Chili Sauce Filling machine is suitable for various viscous sauces and semi-liquid products containing particles. It is widely used for chili sauce, garlic chili sauce, hot sauce, salsa sauce, chili oil sauce, curry sauce, bean paste, mushroom sauce, seafood sauce, seasoning sauce, cooking sauce, dipping sauce, barbecue sauce.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This Chili Sauce Filling machine is suitable for glass bottles, PET bottles, HDPE bottles, sauce jars, plastic containers, condiment bottles, wide-mouth jars, round bottles, square bottles, and custom food containers. The finished products can be equipped with screw caps, foil seals, pressure-sensitive labels, wrap-around labels, and customized retail packaging solutions.

Machine Details:

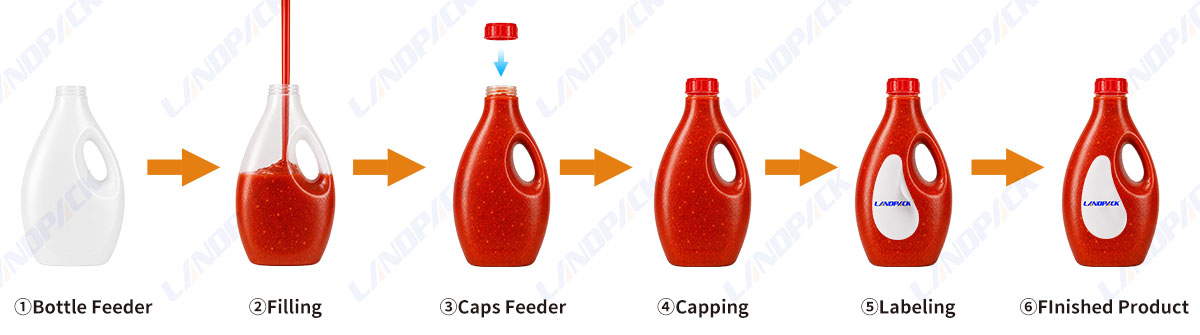

Working Process

1. Bottle Feeding → Servo Tracking Filling → Photoelectric Detection → Automatic Cap Feeding → Four-Wheel Capping → Aluminum Foil Sealing → Double-Side Labeling → Finished Product Collection

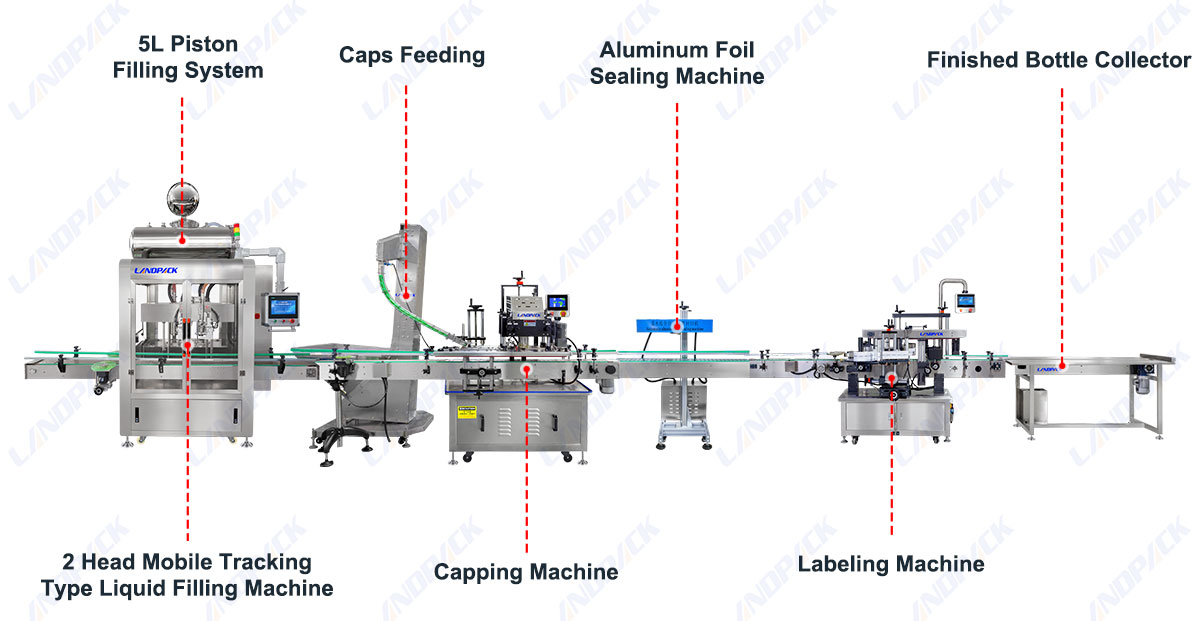

Key Component

Specification

Model	LD-ALT01
Filling Range	200-10000ml (Customizable)
Filling Speed	80-100 bottles/min
Filling Type	Servo high-precision quantitative filling
Measurement Accuracy	±1%
Power	About 10KW/380v three-phase five-wire
Working Power Supply	220V, 50Hz
Program control	PLC+touch screen
Weight	900kg
Size	210012501900 (mm)
Material	Materials for liquid-contact parts such as filling nozzles and troughs: 316# stainless steel, PVC and POM

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Aluminum foil sealing machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Automatic Labeling Machine
Model	LFT-LG-100(Low speed labeling)	LFT-GS-100(High speed labeling)
Label length	20mm～300mm	20mm～300mm
Label width/height	20mm～200mm(can be customized)	20mm～200mm(can be customized)
Bottle width	30-150mm(can be customized)	30-150mm(can be customized)
Roll Label outer diameter	300mm	300mm
Roll Label inner diameter	76mm	76mm
Accuracy	±1mm	±1mm
Label speed	40-100pcs/min	60-120pcs/min
Conveyor speed	5～25m/min	15～20m/min
Suitable label type	Adhesive sticker label(transparent label need customized)	Adhesive sticker label(transparent label need customized)
Working air pressure	0.4-0.6Mpa	0.4-0.6Mpa
Voltage	220V can be customized 4KW	220V can be customized 4KW
Weight	350KG	450KG
Overall dimension	3000mm×1450mm×1950mm	3050mm×1550mm×1950mm

Features:

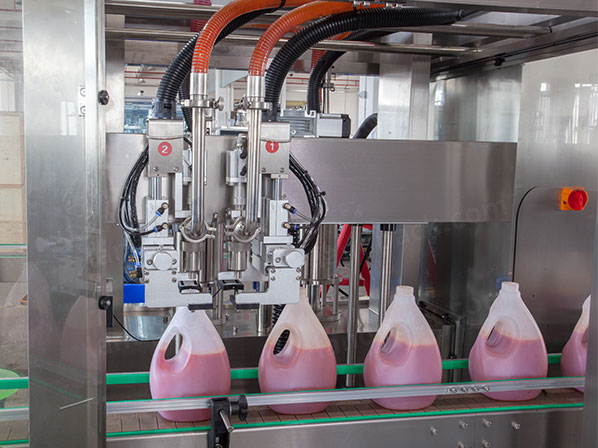

1. Dual-head servo tracking filling system follows bottle movement during filling, improving production efficiency and reducing waiting time.

2. Large 5L piston filling cylinders support filling volumes from 500ml to 5000ml, with production speeds up to 15 bottles/minute for 5L containers.

3. Intelligent two-stage or three-stage filling control reduces foaming and prevents liquid splashing during high-volume filling.

4. Automatic photoelectric detection enables no bottle, no filling operation to reduce product waste.

5. Filling system is compatible with various bottle sizes and container shapes with quick adjustment.

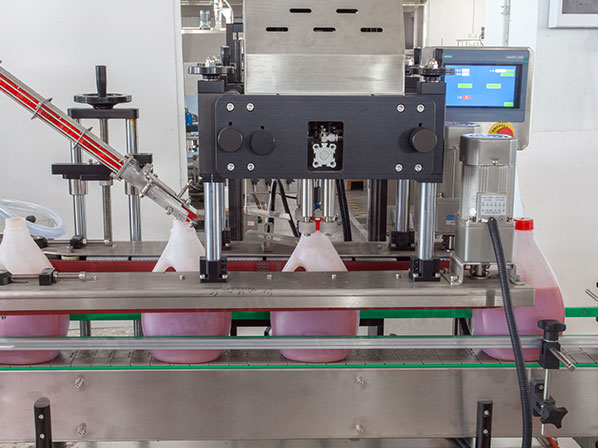

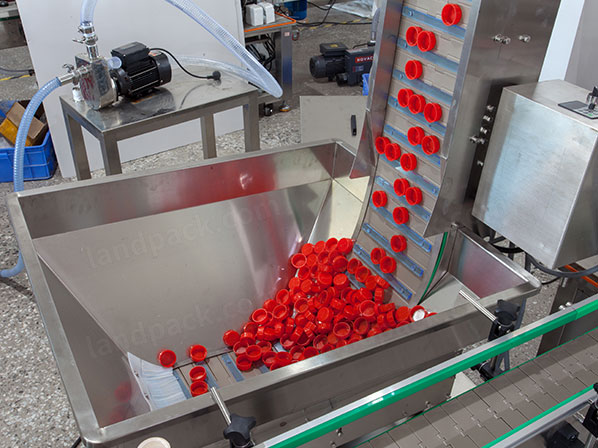

6. Automatic cap feeding and four-wheel capping machine support different screw cap specifications.

7. Double-side labeling machine is suitable for both round bottles and square bottles with single-label or wrap-around labeling.

8. PLC touchscreen control supports storage of 10 production recipes for fast product changeover.
