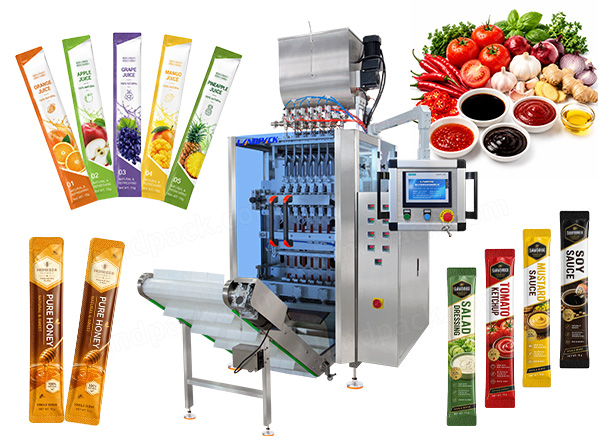

High Speed 6 Lanes Ketchup 3/ 4 Sides Sealing Bag Tomato Sauce Packaging Machine

Application:

The Tomato Sauce Packaging Machine is suitable for tomato sauce, ketchup, chili sauce, barbecue sauce, salad dressing, mayonnaise, Soy sauce, vinegar, cooking sauce, seasoning liquid, hot sauce, shampoo sachet, shower gel, hand sanitizer, liquid detergent.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

Application:

The Tomato Sauce Packaging Machine is suitable for 3-side sealing bags, 4-side sealing bags, flat sachets, stick-style sachets and customized laminated film pouches.Compatible with packaging films including PET/PE, PET/AL/PE, BOPP/CPP, NY/PE and other composite liquid packaging materials.

Videos Introduction:

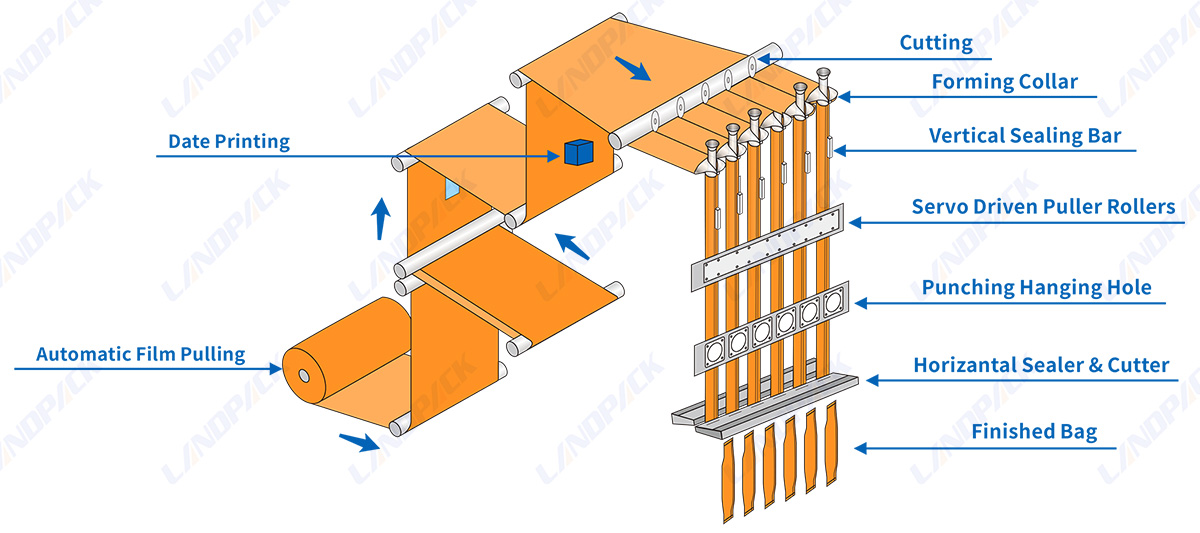

Working Process

1. Film Feeding → Bag Forming → Liquid Filling → Sealing → Corner Cutting → Easy Tear Notching → Date Coding → Finished Bag Output

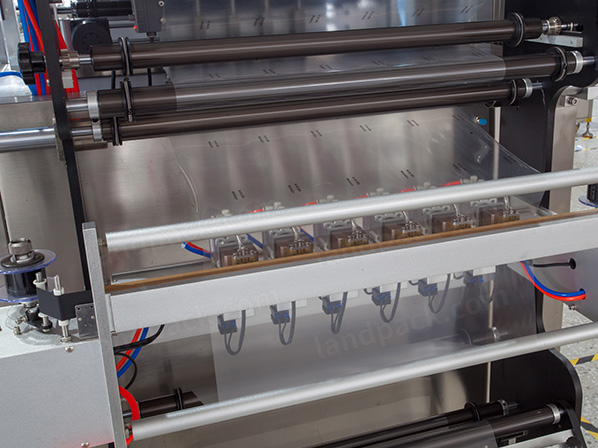

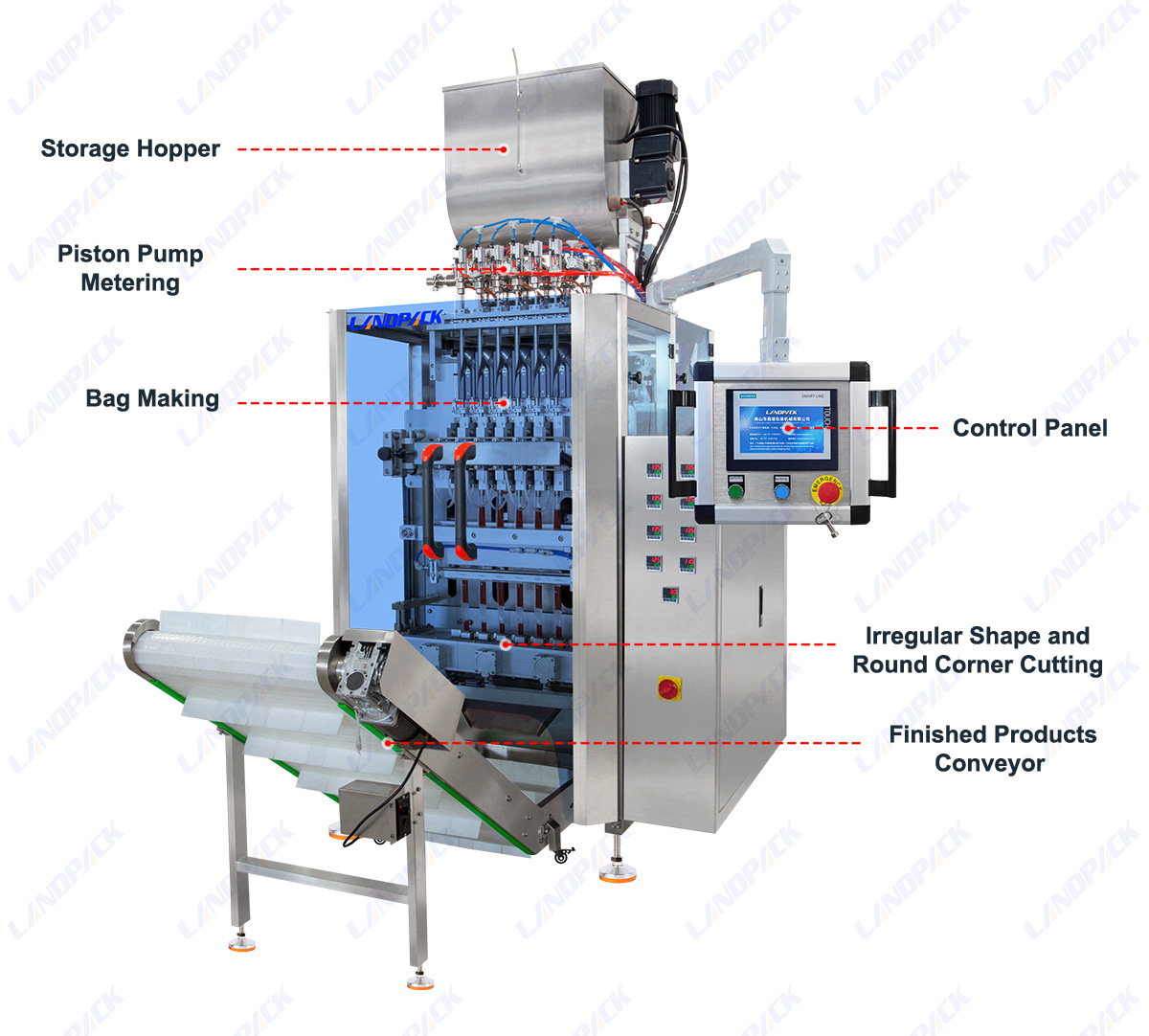

Key Component

Specification

Model	LD-480Y	LD-720Y	LD-960Y
Track Number	4-6 Track	4-10 Track	4-12 Track
Filling Method	1.Piston pump; 2.Peristaltic Pump
Capacity	Max.40 cycle/min
Sachet Size	L: 45-120mm; W: 35-60mm	L: 45-120mm; W: 35-90mm	L: 45-120mm; W: 35-120mm
Film Width & Thickness	Max.480mm; 0.07-0.1mm	Max.720mm; 0.07-0.1mm	Max.960mm; 0.07-0.1mm
Sealing Type	3/4 sides sealing	3/4 sides sealing	3/4 sides sealing
Cutting Type	1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting
Air & Power	0.8 mpa, 0.8m³/min; 2.8kw	0.8 mpa, 0.8m³/min; 4.1kw	0.8 mpa, 0.8m³/min; 5.5kw

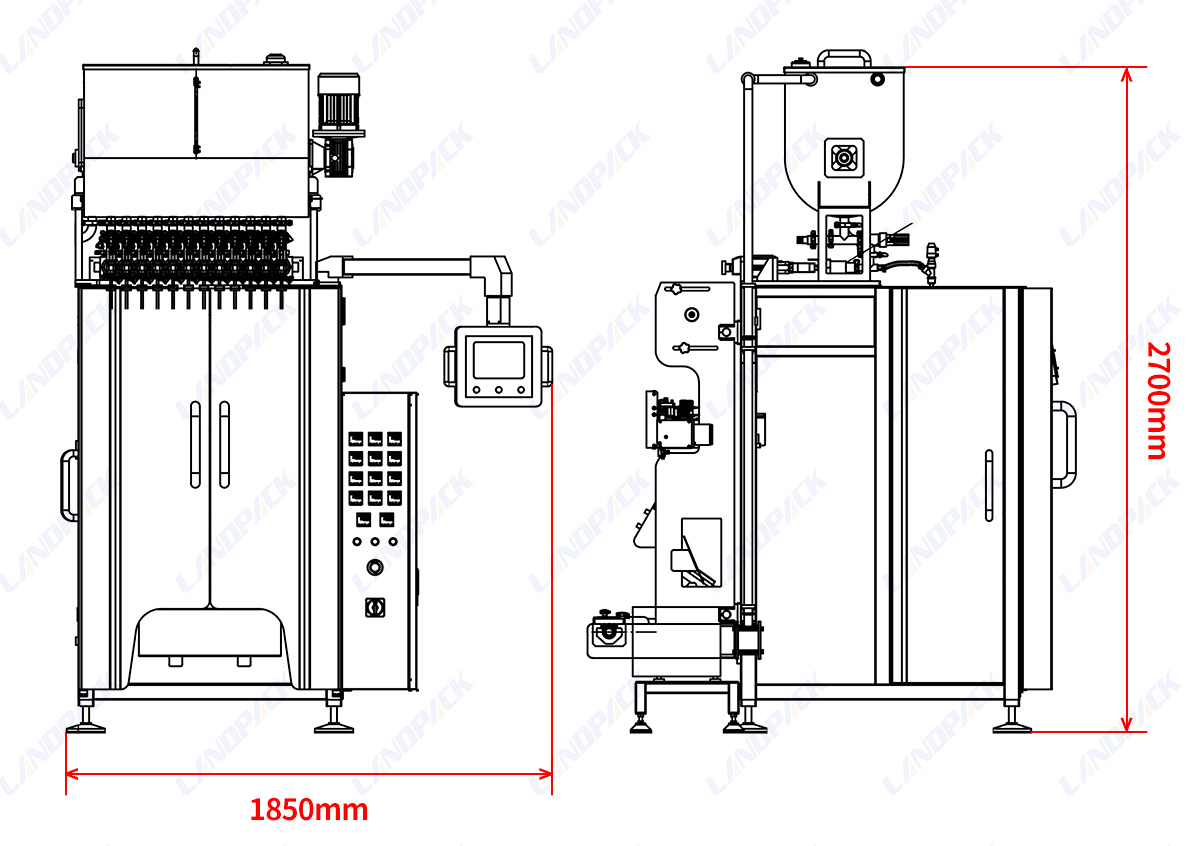

DIM & WT	95014701750mm; 300kg	115316541750mm; 400kg	141516862130mm; 500kg

Features:

1. Full machine adopts SS304 stainless steel structure, meeting food safety and hygiene standards.

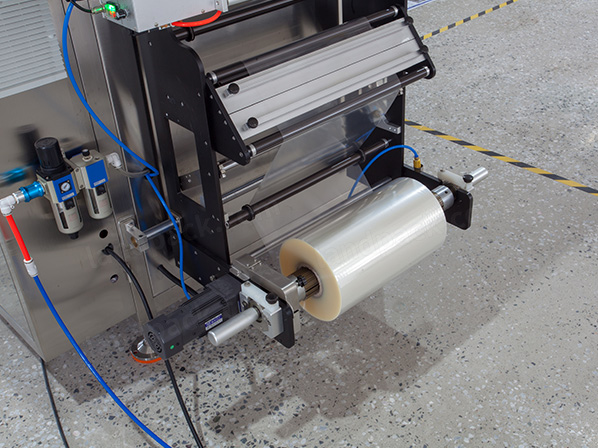

2. Servo-driven film pulling system ensures stable operation and accurate bag forming.

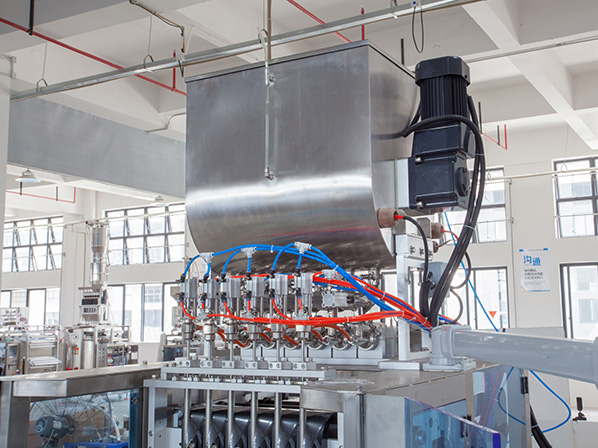

3. Independent piston pump filling system provides precise liquid metering control.

4. Automatic film roll forming, heat sealing and cutting achieve continuous packaging production.

5. Customized irregular shape and round corner cutting meet different package design requirements.

6. High-precision sealing and cutting system creates smooth edges and attractive finished bags.

7. Flexible adjustment of coding, bag length and film position improves operation convenience.

8. Safety protection devices and servo control components ensure reliable and stable machine performance.
