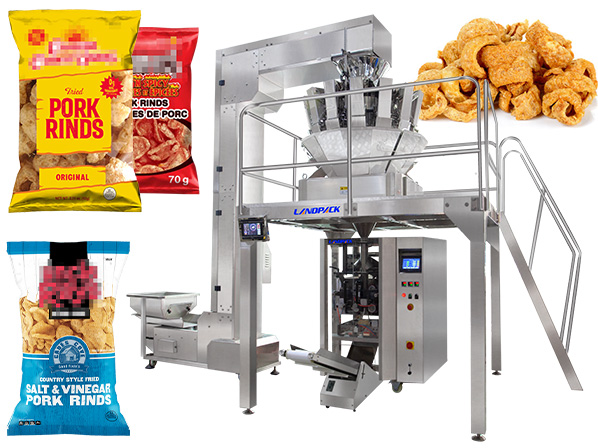

Fully Automatic Pork Rinds Snacks VFFS Weighing Packing Machine

Application:

Designed for automatic snack packaging, the machine is widely used for pork skin snacks, crispy pork rinds, seasoned meat bites, fried snack pieces, and similar irregular snack products. It handles dry, oily, and seasoned materials with stable weighing, smooth filling, and neat sealing

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This pork rinds packing machine supports back sealing pouch, pillow pouch, and gusset pouch, meeting common snack packaging requirements for retail and bulk formats.

Wide Application Range

Used in efficient packaging of irregular, lightweight, and oily snack materials, the LD-420A vertical packing machine ensures stable weighing, smooth filling, and clean sealing even for seasoned or fragile products.

Meat Snacks

• pork skin snacks, pork rinds, crispy pork cracklings, fried meat bites, seasoned meat chips.

Fried & Crispy Snacks

• fried snack pellets, crispy strips, puffed snack pieces, extruded snack clusters.

Seasoned Snack Foods

• flavored snack mixes, spiced crunchy snacks, coated snack pieces with oil or powder.

Machine Details:

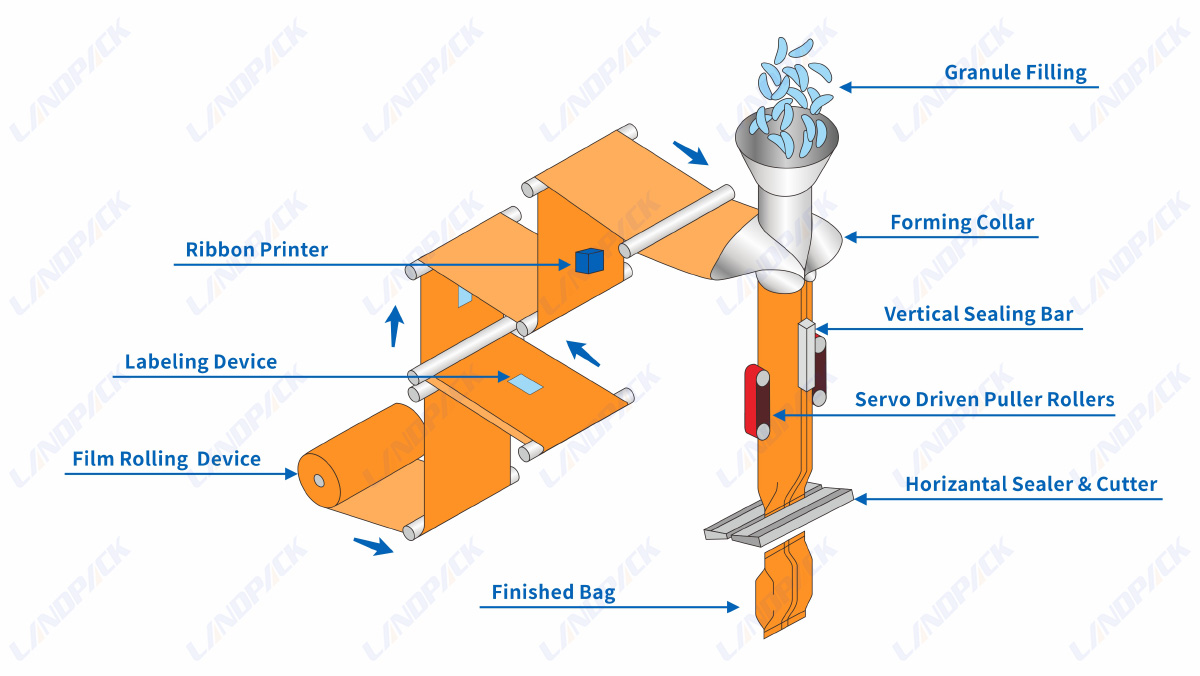

Working Process

1. Unwounding Film → 2. Automatic Labeling → 3. Date Printing → 4. Bag Forming Filling Sealing → 5. Pulling & Cutting → 6. Output

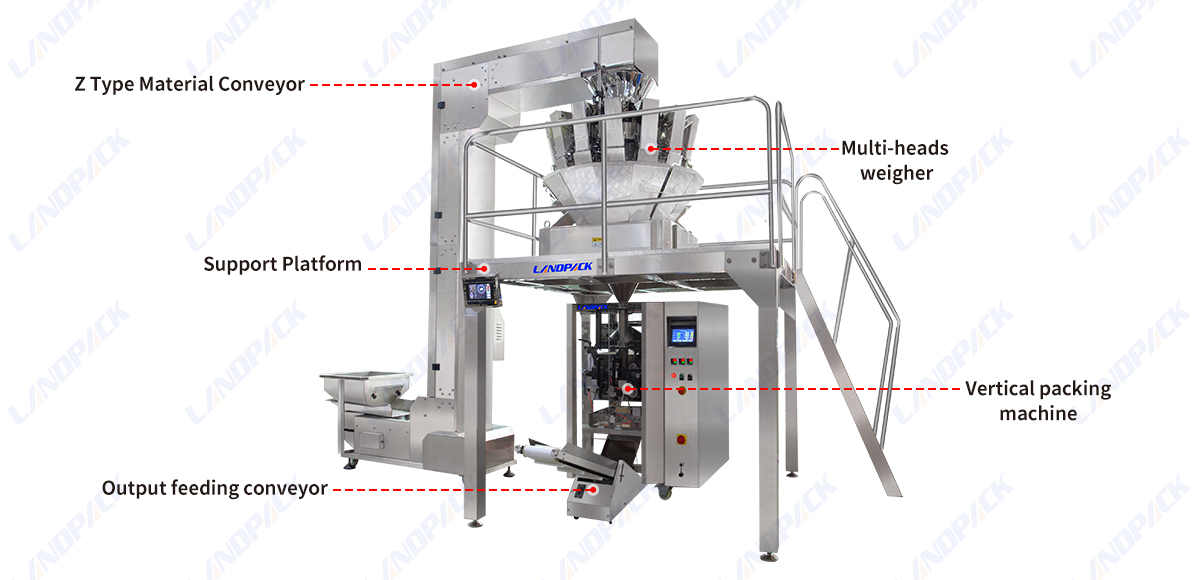

Key Component

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

Machine Image	Benefits

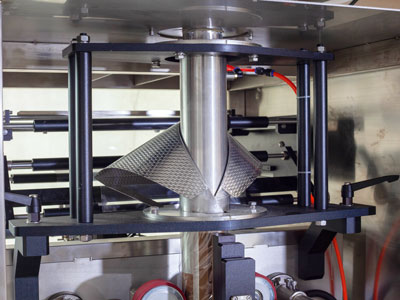

	Fast Changeover Bag Former for Flexible Snack Sizes The bag former is able to be adjusted in a matter of minutes to accommodate different lengths and widths for bags which makes it perfect for pork rinds as well as mixed snack items that experience frequently changing sizes.

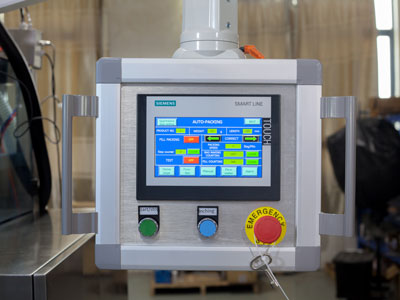

	Siemens PLC & Touch Screen Control System With an Siemens PLC and HMI touch screen, the machine allows precise parameter adjustment with real-time monitoring as well as constant control for snack packaging.

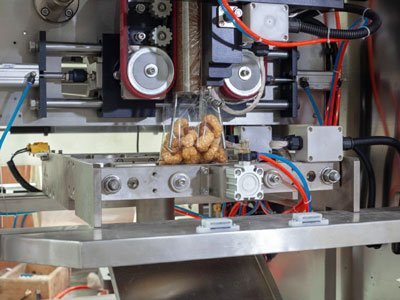

	Full Servo Drive for Stable and Precise Operation Motors that servo ensure precise films pulling and precise position and smooth operation at high speed which is crucial for the handling of light and irregular pieces of pork rind .
	High-Speed Packaging up to 80 Bags/Min Optimized for snack use. This machine can process the capacity of up to 80 bags per hour, while keeping a reliable weighting system, clean sealing, and a consistent bag appearance.
	Multi-Zone Independent Temperature Control Four temperature controllers that are independent control each heating block individually and ensures strong, uniform seals.
	Fully Automatic Packaging Process Combines feeding, measuring, filling, bag forming and sealing, printing dates and cutting into an automated workflow, decreasing dependence on labor and enhancing productivity.

Learn More:

1.If you need more Snack Food Packing Machine for your product , read our-- Snacks Packing Machine

2.If you still have doubts about Landpack Machinery, read our why choose Landpack

3.Regarding the certificate of the machine, you can read certificate

4.Guidance for first time to buy Filling Machine/ Packing Machine, you could read this one

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L
