Automatic Pet Food Doypack Premade Pouch Packaging Machine

Application:

This packing system is designed for efficiently packaging various granular products into premade pouches, making it especially suitable for animal feed, pet food, and snacks. Beyond pet food, it can handle a wide range of similar materials such as sunflower seeds, potato chips, popcorn, dry food.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Packing Type:

This machine supports a full range of premade pouches, including stand-up pouches (doypack), spout pouches, zipper pouches, gusset pouches, and custom-shaped pouches, ensuring reliable sealing performance and strong compatibility for various granular and agricultural products such as pet food and mixed nuts.

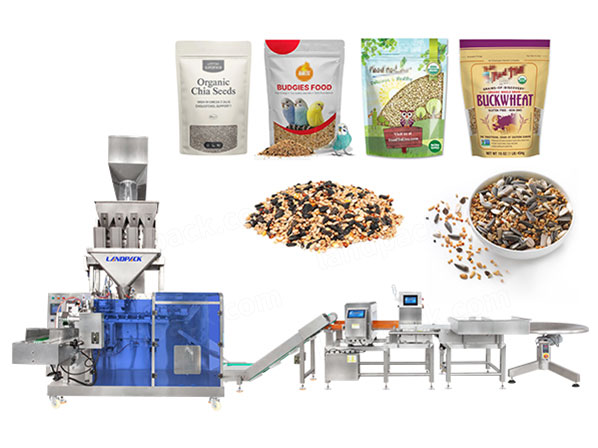

Machine Details:

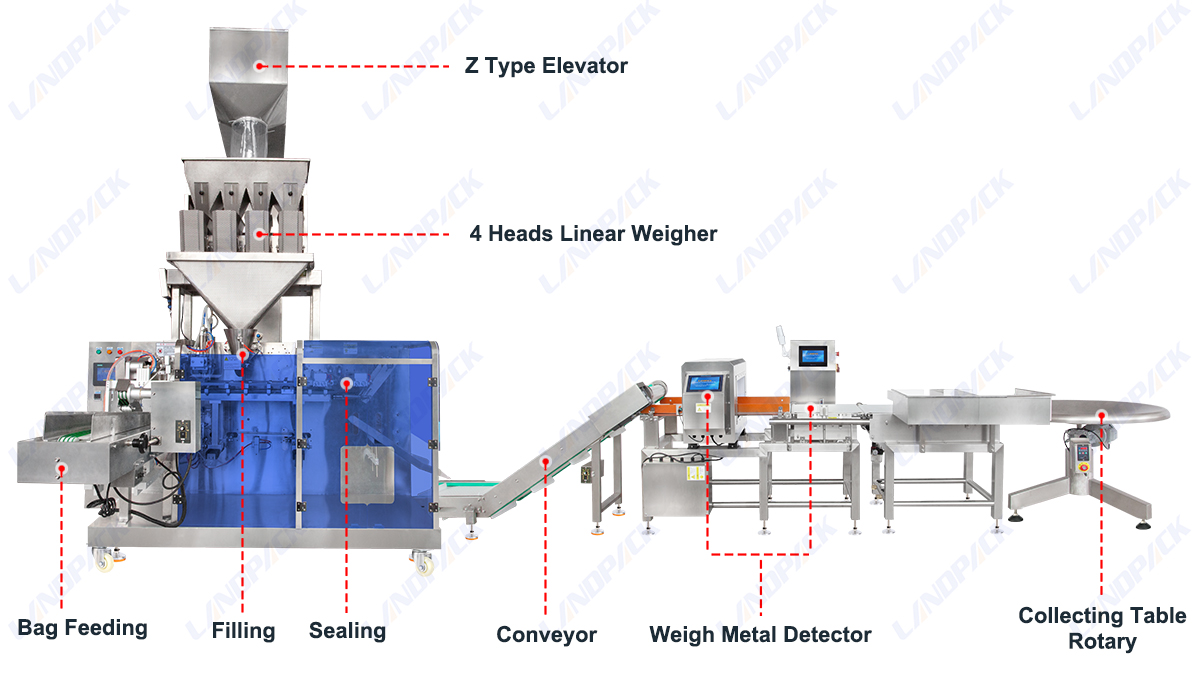

Working Process

1. Z-type product conveyor

2. 4 heads linear weigher

3. Bag feeding

4. Bag filling

5. Heat sealing

6. Metal and weigh detector

7. Finished Product output

Key Component

Specification

Item	Horizontal Pouch Packing Machine For Premade Pouch
Brand	Landpack
Model	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side sealing bag, 4-side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm(L*W)	100-260mm/110-320mm(L*W)
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min	25-50bags/min	20-50bags/min	20-50bags/min
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW

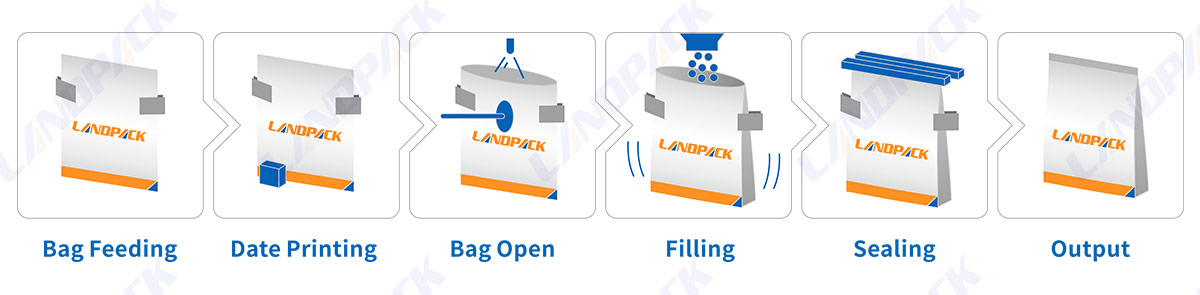

Work Flow	1. Giving bag 2. Pick up the bag(coding) 3. Open the bag up and down 4. Filling 5. Heating sealing 6. Output of product

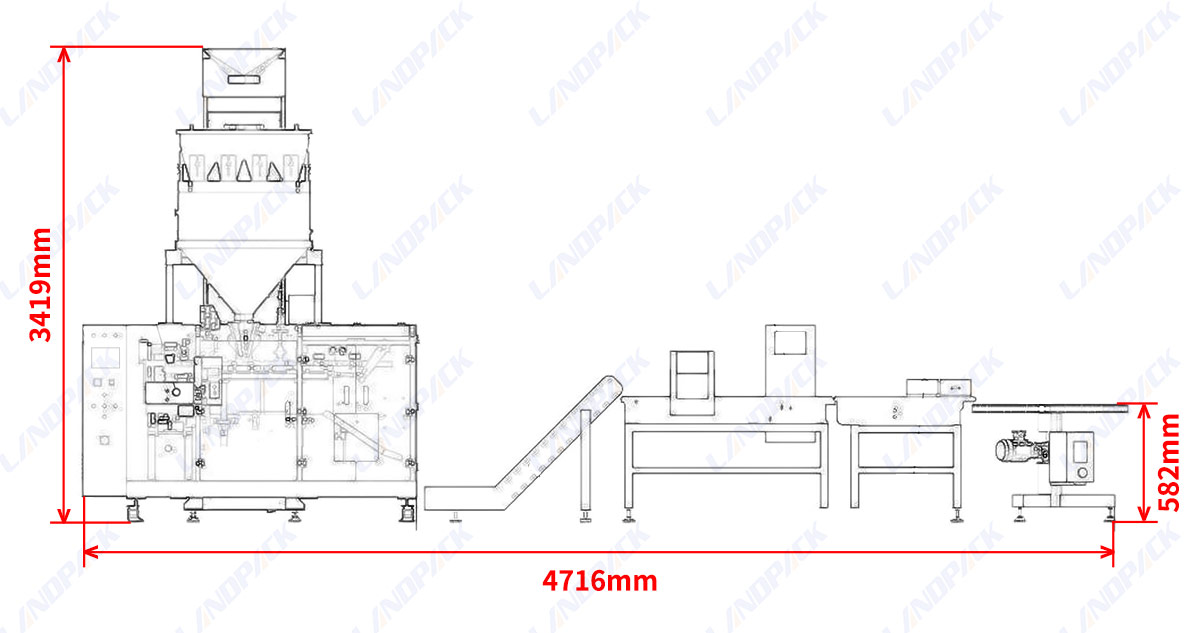

Dimensions	1750mm1285mm1360mm(LWH)		2140mm1366mm1360mm(LWH)
Collocation	Screw metering, screw elevator

Features:

Machine Image	Benefits

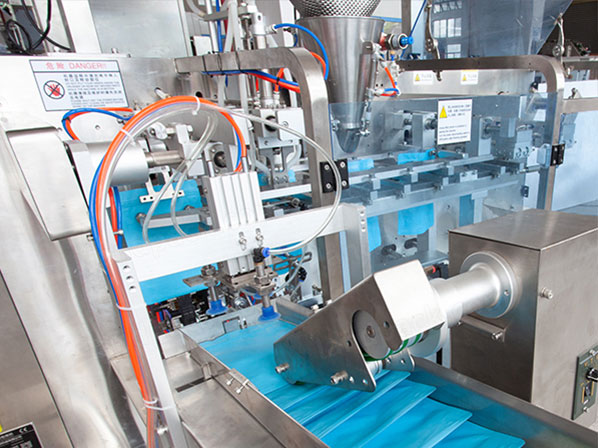

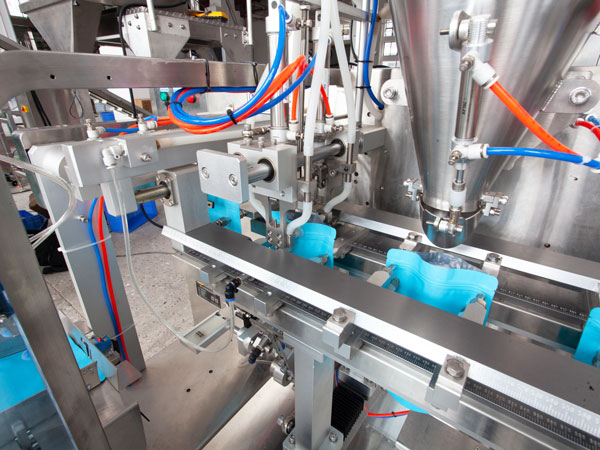

	Fully Automated Doypack Machine (LDSP-210AS) The servo-driven horizontal pouch system handles pouch picking, opening, filling, and sealing with high consistency. It supports various premade pouch sizes and allows fast product changeovers—ideal for pet food producers handling multiple SKUs.

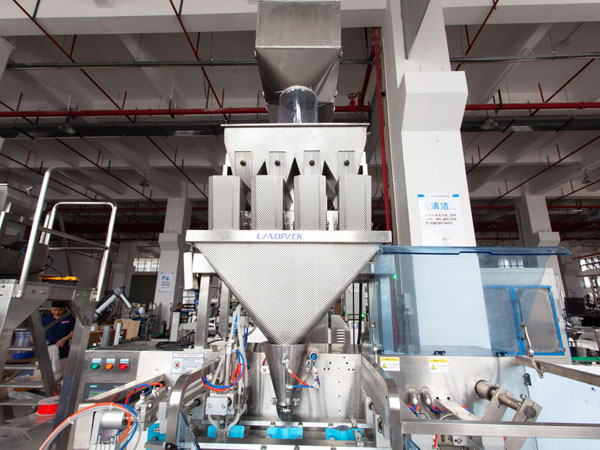

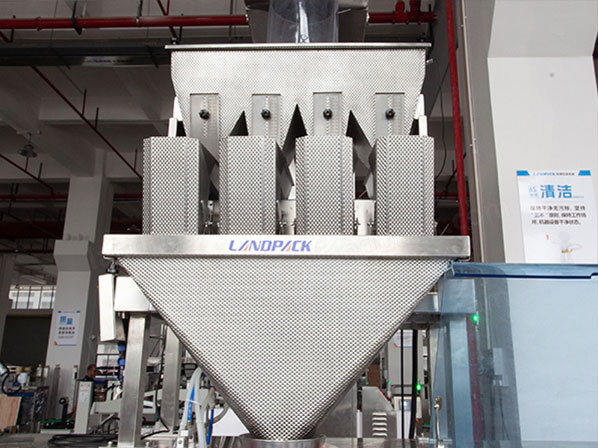

	Accurate 4-Head Linear Weighing System The linear weigher ensures precise dosing of granular products such as pet food, nuts, dry fruit, and peanuts. Each weighing channel operates independently for stable output, reduced giveaway, and consistent pack weights.

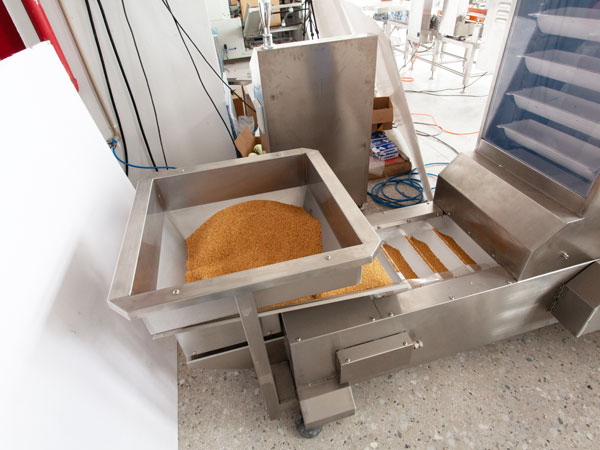

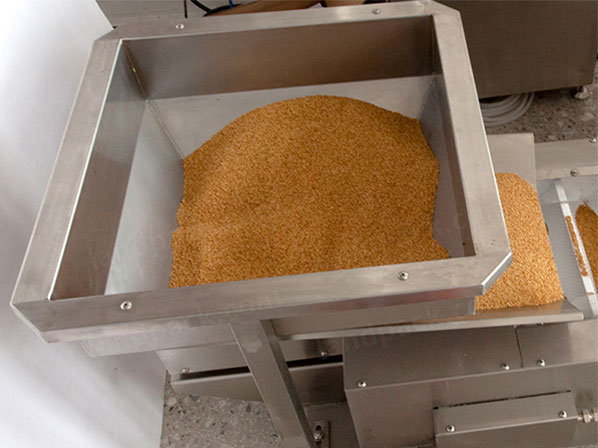

	Smooth and Gentle Z-Type Elevator Feeding The enclosed food-grade buckets transport lightweight and irregular pet food materials without breakage or spillage. The design minimizes dust and maintains a clean production environment.

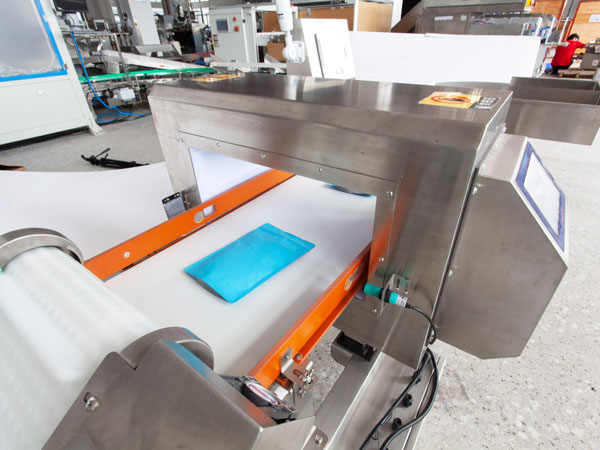

	Integrated Metal Detector & Checkweigher System After sealing, products are checked for metal contamination and accurate weight simultaneously. Non-conforming items are automatically rejected, ensuring safety, compliance, and high production reliability.

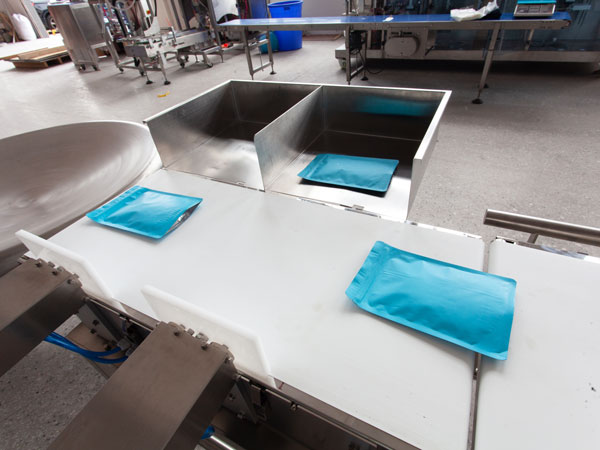

	Efficient Output Conveying & Line Connectivity The output conveyor is designed with buffering and stable transfer, preventing pouch accumulation or blockage. It can seamlessly connect with carton packers, labelers, or secondary packaging lines for high-throughput production.
	Hygienic, Easy-to-Clean Construction Key components are made in stainless steel, with quick-release contact parts for fast cleaning. Transparent safety guards allow easy monitoring while ensuring safe operation and compliance with food hygiene standards.
