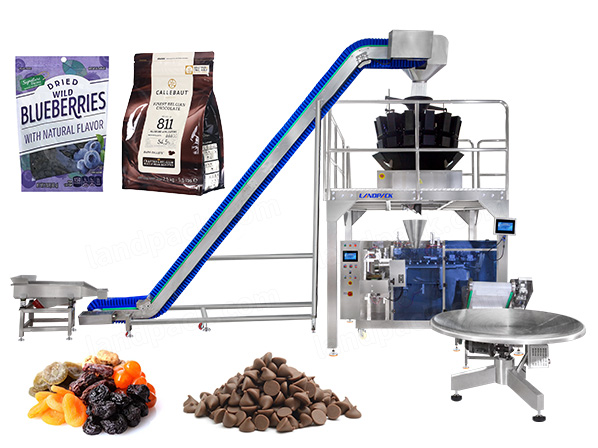

Automatic Doypack Premade Pouch Packing Machine for Sticky Prunes and Nuts

Introduction:

Efficient and hygienic doypack packaging machine for prunes, dried fruits, nuts, and snacks. LDSP-210A offers precise weighing, pouch feeding, nitrogen flushing, and sealing. Ideal for sticky or fragile products with custom anti-stick features.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

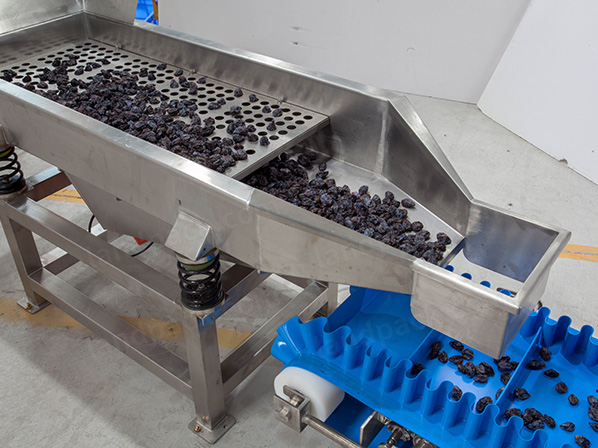

1.Custom Anti-Stick System for Sticky Products: Equipped with a specially designed vibrating mesh to efficiently separate sticky dried prunes and avoid material clumping;

2.Hygienic & Easy-to-Clean Conveyor System: Features an easy-clean belt conveyor with a waterproof motor, allowing thorough washdown without affecting performance;

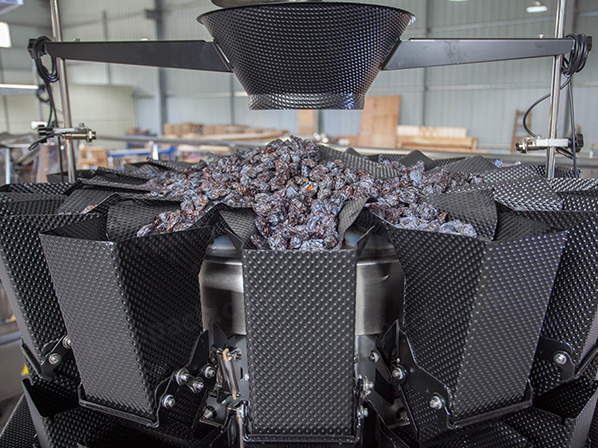

3. High-Precision Weighing with Anti-Stick Design: 14-head multihead weigher with teflon-coated dimple plates and a vibrating main feeding pan to prevent sticking during weighing;

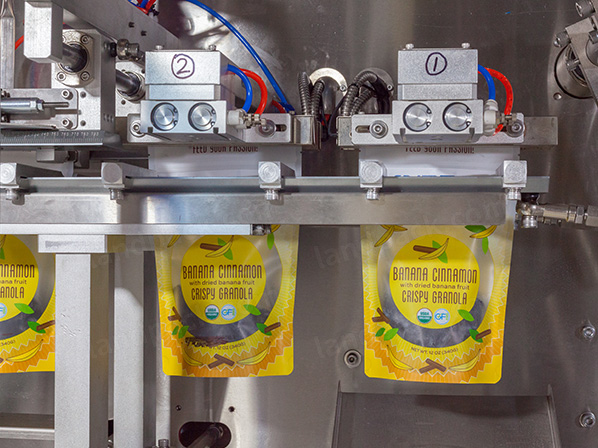

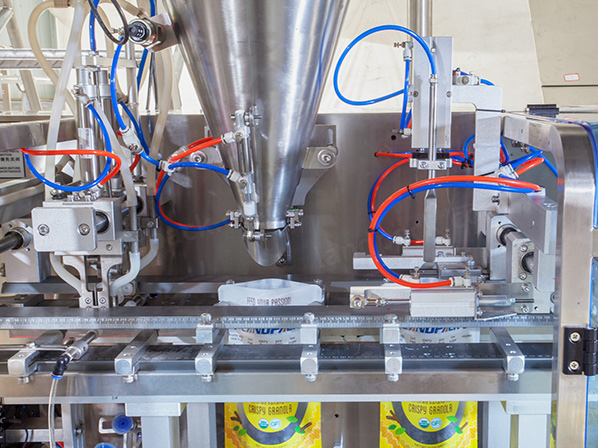

4. Fully Automatic Horizontal Doypack Machine: Automates the entire pouch process including pouch feeding, coding, opening, filling, nitrogen flushing, and sealing;

5. Integrated Nitrogen Flushing System: Ensures extended shelf life by minimizing oxygen in sealed bags — ideal for oxidization-sensitive products like nuts and dried fruits;

6. Compact and Efficient Layout: Includes rotary collection table and finished product conveyor to streamline packaging and reduce labor.

Application:

The LDSP-210A is widely used for packaging products such as: 1. Sticky dried fruits (e.g., prunes, dates, raisins); 2. Mixed or single nuts (e.g., cashews, almonds, pistachios); 3. Trail mix, granola clusters; 4. Jelly candies or soft confectionery; 5. Small irregular granules with sticky surfaces;

It is ideal for industries such as food processing, snack production, and health food packaging, especially where hygiene, precision, and anti-stick handling are critical.

It can adopt all type of heat sealable performed side seal bags, block bottom, bags, zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, flat pouch, stand-up pouch, zipper pouch, spout pouch, m gusset pouch, paper pouch, aluminium foil pouch, etc.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

;

Workflow:

1.Vibrating Mesh Feeding System – Separates sticky prunes efficiently;

2.Easy-Clean Belt Conveyor – Transports material smoothly and hygienically;

3.14-Head Combination Weigher – High-speed accurate weighing;

4.Horizontal Doypack Packaging Machine – Automatic pouch feeding → date coding → pouch opening → filling → nitrogen flushing → sealing;

5.Finished Product Conveyor – Moves sealed pouches to the next station;

6.Rotary Collection Table – Collects final packaged products for boxing or manual handling;
