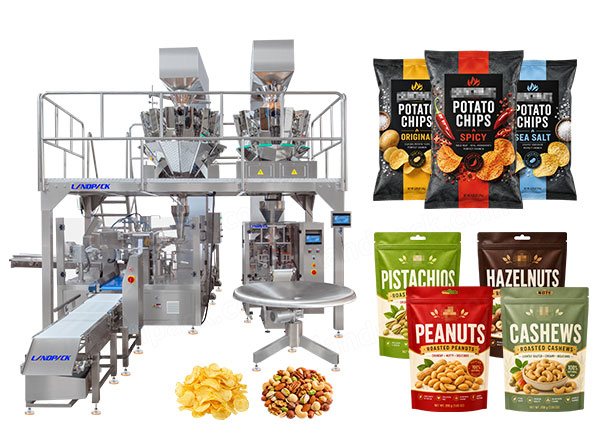

Automatic Rotary 8-Station Premade Pouch Packaging Machine & Vertical Packaging Machine Shared Platform

Application:

The chips packing systems is suitable for potato chips, tortilla chips, corn chips, banana chips, cassava chips, vegetable chips, Cheese puffs, corn puffs, rice crackers, extruded snacks, puffed cereal, Popcorn, pretzels, crackers, crispy snacks, biscuits, peanuts, cashews, almonds, pistachios, sunflower seeds, mixed nuts.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

Application:

Premade Pouches: Stand-up pouches, zipper bags, doypack, 3-side seal pouches, 4-side seal pouches and other customized premade bags.

Roll-Film Bags: Pillow bags, back-seal bags, gusset bags and other VFFS bag formats automatically formed from roll film.

Machine Details:

Working Process

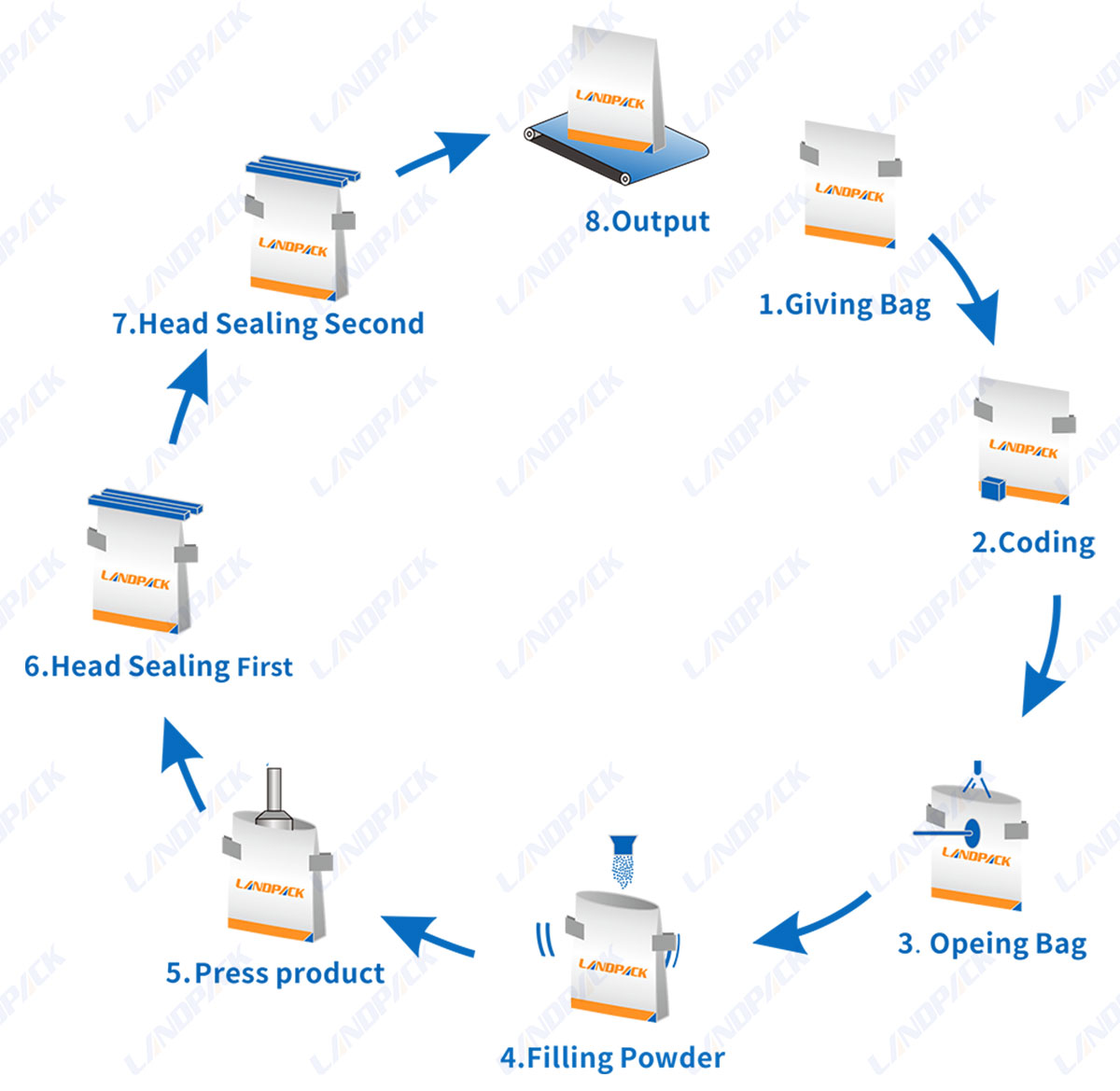

1. 8-Station Rotary Premade Pouch Packing Machine:

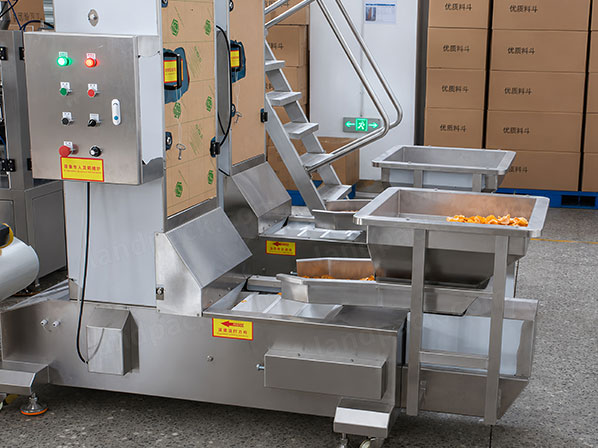

Z-Type Elevator → Multihead Weighing → Pouch Picking → Pouch Opening → Product Filling → Automatic Sealing → Finished Pouch Output

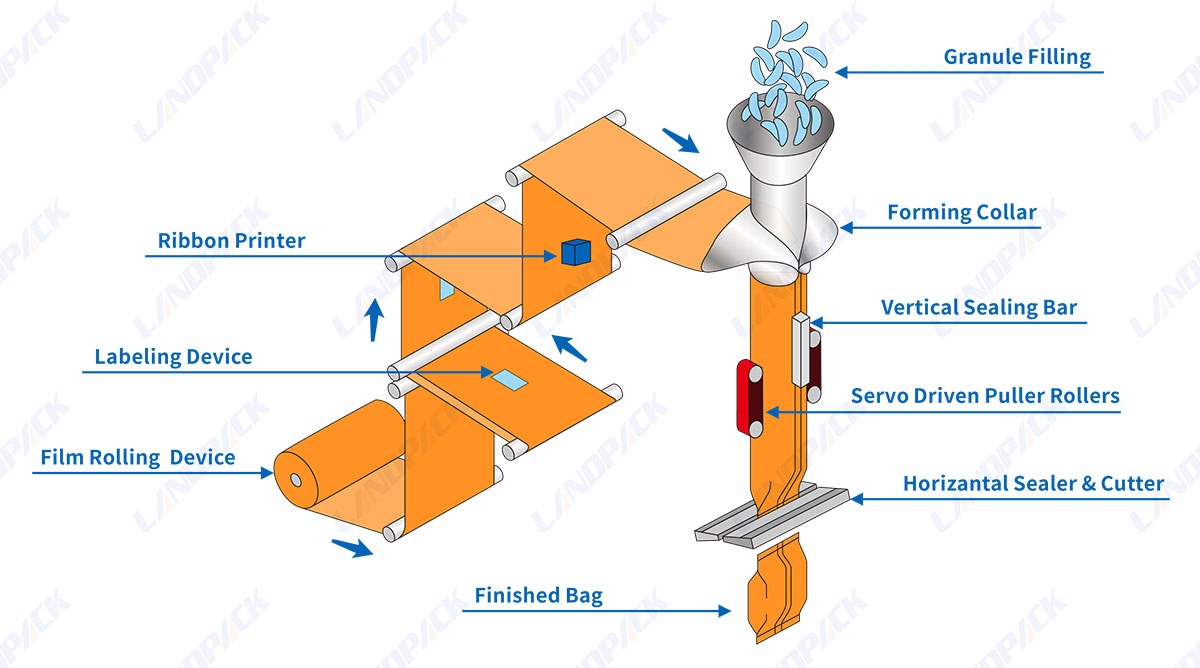

2. Vertical Form Fill Seal Machine:

Z-Type Elevator → Multihead Weighing → Roll Film Forming → Product Filling → Sealing & Cutting → Finished Bag Output

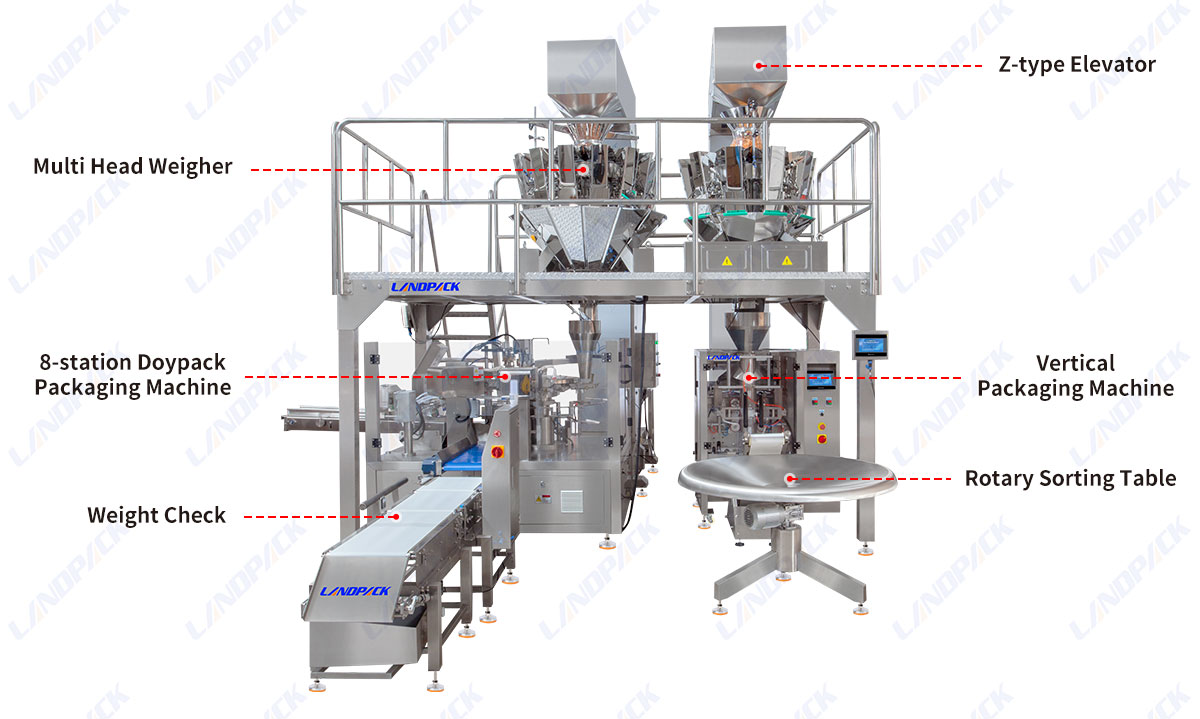

Key Component

Specification

Type	LD-8230	LD-8260	LD-8300	LD-8400
Bag Type	3-side, 4 side sealing bag, doypack, box pouch, zipper pouch, stand up pouch, side gusset bag, etc.
Bag Size	150-380mm80-230mm (LW)	150-380mm/140-260mm (L*W)	150-430mm/180-300mm (L*W)	200-500mm/270-400mm (L*W)
Filling Range	10g-1000g	1500g	2000g	3000g
Packing Speed	20-60 bags/min	20-50 bags/min	10-40 bags/min	10-25 bags/min
Voltage	Standard AC380V+10%, three-phase 50HZ;
Total Power	3.75KW	3.75KW	3.85KW	4.5KW
Air Consumption	0.4m³/min
Dimensions	174013801450mm(LWH)		246018301460mm(LWH)	226022001520mm(LWH)
Machine Weight	1300KG	1300KG	1700KG	2000KG

Model	LD-420A	LD-520A	LD-620A	LD-720A
Film Thickness	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	60-400mm	60-450mm	60-500mm
Bag Width	60-200mm	100-250mm	65-300mm	65-350mm
Film Roll Diameter	Max.600mm	Max.600mm	Max.600mm	Max.600mm
Pakaging Rate	5-60 bags/min	5-40 bags/min	5-35 bags/min	5-30 bags/min
Film Width	Max.420mm	Max.520mm	150-Max.620mm	150-Max.720mm
Making bag volume	1000ml	2000ml	3000ml	5000ml
Power Supply	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3KW	220V, 50/60HZ, 3.2KW	220V, 50/60HZ, 3.5KW
Machine Size	121710151343 mm(LWH)	148810801490 mm(LWH)	148811801550 mm(LWH)	178013502050 mm(LWH)

Features:

1.8-station rotary doypack machine supports one-touch bag-width adjustment for different premade pouch sizes.

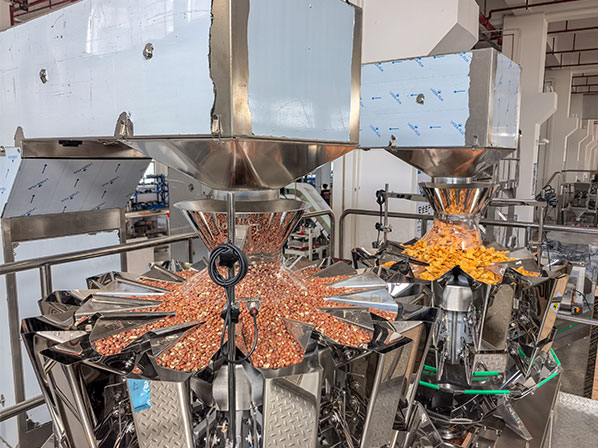

2.14-head 1.6L multihead weigher provides fast and accurate weighing for potato chips and other dry products.

3.Touchscreen control allows quick adjustment for different stand-up and zipper pouch specifications.

4.Dual-servo system works with the 14-head weigher to improve packaging speed and operating stability.

5.Reference packing speed reaches 25–30 bags/min depending on product weight, pouch size and configuration.

6.Nitrogen flushing system helps protect potato chips and provides cushioning for fragile products inside the pouch.

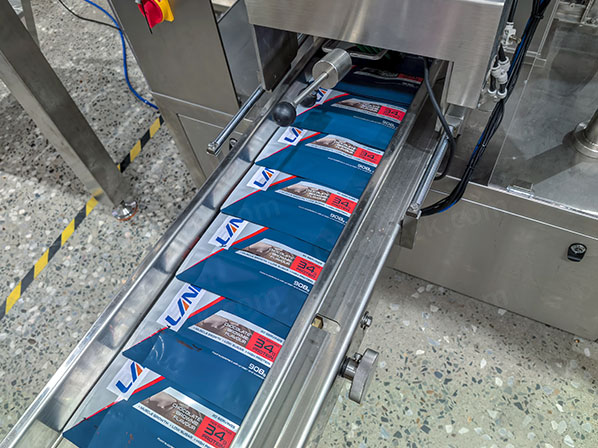

7.200mm finished product conveyor provides smooth bag discharge and connection to downstream equipment.

8.Rotary sorting table organizes finished bags and reduces product accumulation at the packaging line outlet.
