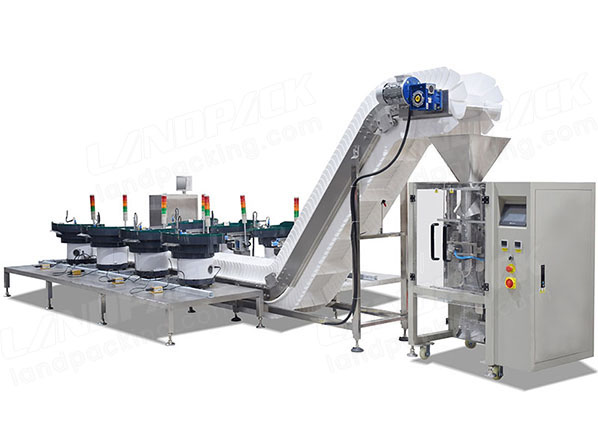

Fastener/ Hardware Counting And Packing Machine With Vibration Disk

Application:

Widely used in electrical appliances, lighting, metal decorative products subsidiary installation screws, nuts, small pieces of plastic mixed packaging.

Details:

Type: LD-420AH-8
Packing speed: 30-60bags/min
Measuring range: 0-100000 pcs
Bag length: 40-160mm
Bag Width: 30-110mm
Max film width: 220mm
Sealing type: 3 sides, 4 sides or back sealing
Packing film: All heating material (paper/PE,PET/AC/PE,etc)

Tel/Whtasapp: +86 17388602385
Features:
Application:
Samples:
Specification:
Benefit:
Inquiry
Features:

1. Tailored to the screw samples of the vibration plate, linear vibration arrangement, and sophisticated counting control device to ensure that each bag is accurate.

2. Packaging icon packaging materials, the machine advanced step control, with the use of color tracker can get the perfect icon design.

3. SCM control system, fault self-stop, self-alarm, self-diagnosis, safe and easy to use.

4. Automatic display of the number of packages, the statistics can easily work out the machine.

5. Single vibration disk measurement of a single screw, if you need to pack a variety of specifications at the same time the need for multiple vibration disk supporting the use of.
Application:

Fastener/ Hardware Counting And Packing Machine With Vibration Disk, Can be widely used in electrical appliances, lighting, metal decorative products subsidiary installation screws, nuts, small pieces of plastic mixed packaging.
Samples:

Specification:
Type: LD-420AH-8 Packing speed: 30-60bags/min
Measuring range: 0-100000 pcs Bag length: L:40-160mm
Bag Width: 30-110mm Max film width: 220mm
Sealing type: 3 sides, 4 sides or back sealing Packing film All heating material (paper/PE,PET/AC/PE,etc)
Power: 2500W Net weight: 800KG
Voltage: 220V 380V/50HZ 60HZ Overall size: L1000*W700*H1600mm
Benefit:
Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item Artificial Weighing + Packing After Using The Packaging System
Average Weight Deviation Of A Single Bag ≤5g ≤2g (Saved 3 grams)
Need Labor 10 people 3 people(Saved 7 Labor)
Hygiene Situation ⭐⭐ ⭐⭐⭐⭐⭐
Energy Consumption ⭐⭐ ⭐⭐⭐
Product Waste ⭐⭐⭐⭐⭐ ⭐⭐
Production Management Not easy to manage Digital management
Production Layout Labor-intensive and complex production environment. Mechanical automation, simple and beautiful production environment.
