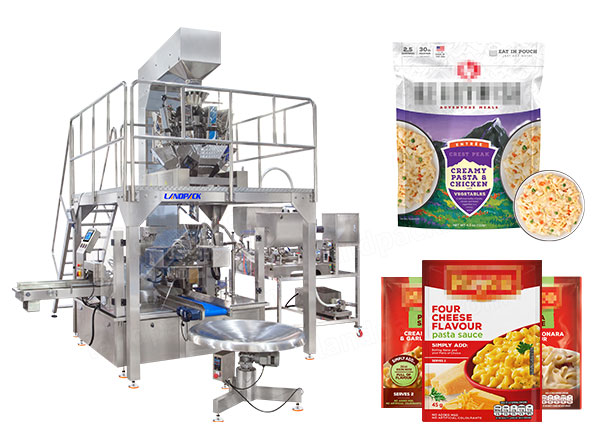

Automatic Rotary Retort Pouch Viscous Sauce Pre-Cooked Food Packing Packaging Machine

Application:

This automatic rotary retort packaging machine is engineered for retort pouch packaging of pre-cooked food, especially products such as pre-cooked rice meals, curry rice, instant meal kits, Rice with gravy, beans with sauce, mixed ready dishes,.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Machine Details:

Working Process

1. Pouch feeding → Pouch opening → Solid weighing → Dual liquid filling → Heat sealing → Finished pouch output

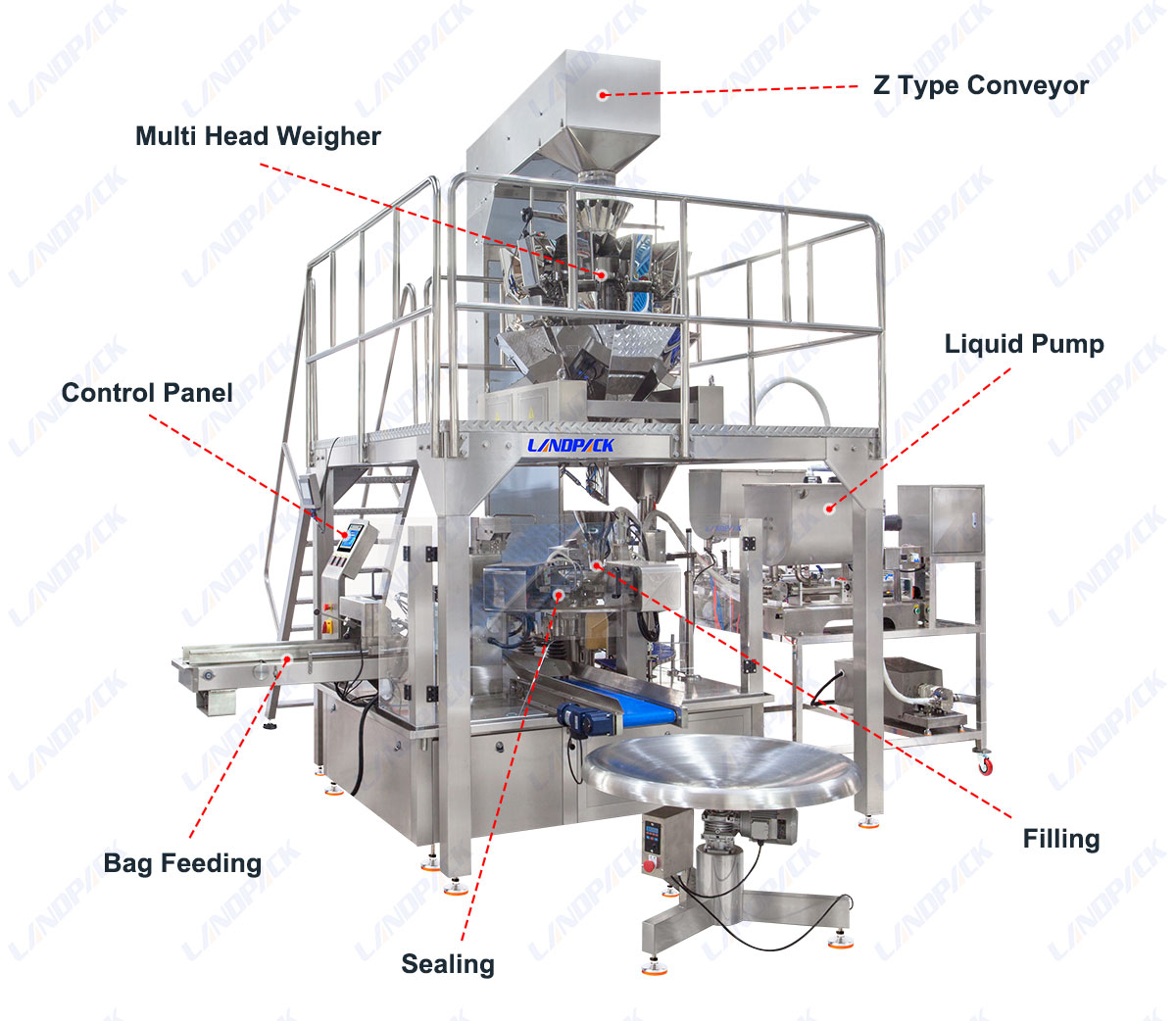

Key Component

Specification

The Main Technical Parameters
Model	LD-8260A
Bag Size	Width:70-120mm/120-200mm, Length:80-160mm/150-300mm
Filling Volume	10-500g (Depending on type of products)
Capacity	30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute
Package Accuracy	Error≤±1%
Total Power	2.5KW/5.5kw (220V/380V,3PH,50HZ)
Demension	210014001700 mm/260019001700(LengthWidthHeight)
Weight	1600KGS/3000kgs
Compress Air Requirement	≥0.8m³/min supply by user
Pouch Type	All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout,Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc.
Application Product	1. Any product that can pack in bag, such as fish, poultry, meat, grains and other food items. 2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc. 3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc. 4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. 5. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc.

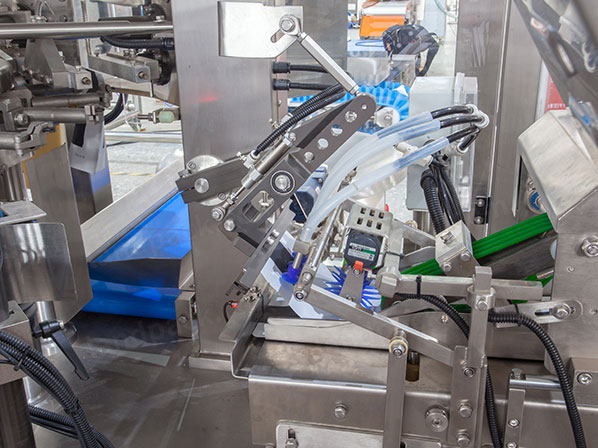

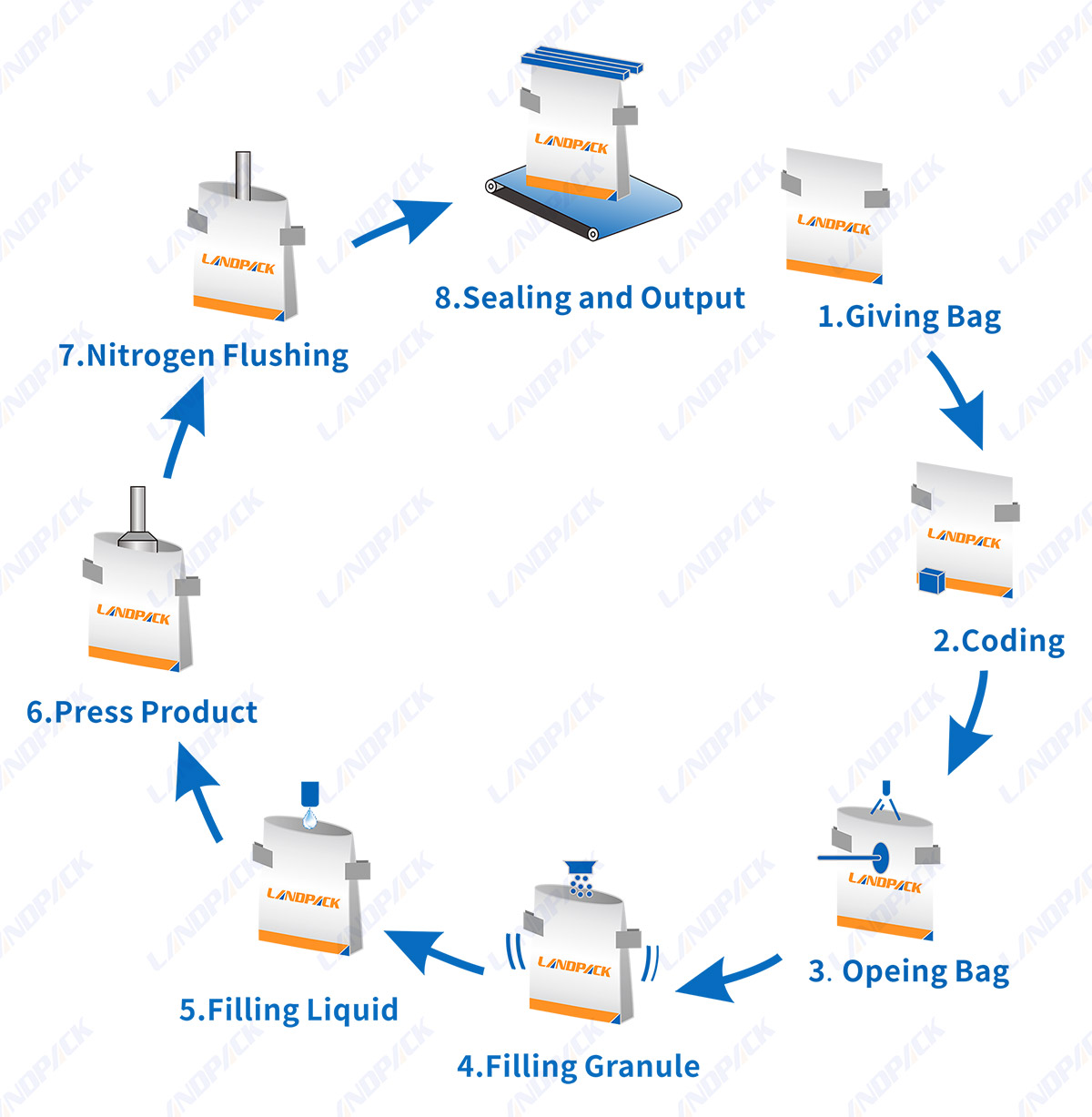

Work Process	Station 1 Giving Bag Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets vacuum caps.Station 4 Filling and consolidate 1Measured its weight or volume by scales.There are an opening detection device insertinto the open bagor pouch to expanding it and detect if it is open or not.Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make bag more straight and to prevent material out from bagStation7 Vacuum and sealingto transform to vacuum equipmentStation 8 Forming and OutputThese 8 stations can change its working function as customized design

Features:

1. Easy to operate with PLC + touch screen, all alarms and faults are clearly displayed.

2. 8-station rotary system, one-button adjustment for different pouch sizes.

3. Supports solid + dual liquid filling, can run together or separately depending on product.

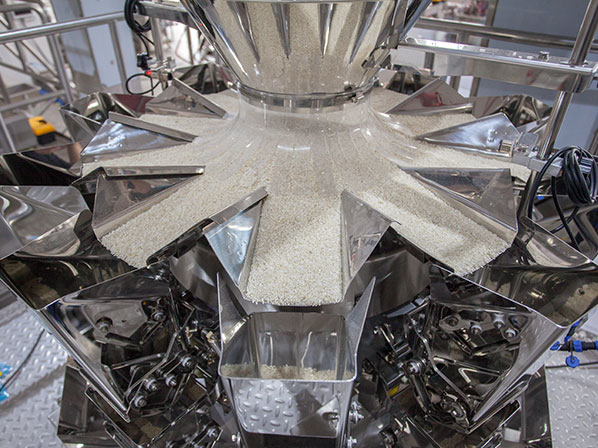

4. 10-head weigher with dual liquid pumps ensures stable accuracy around ±1%.

5. Equipped with nitrogen flushing, pouch cleaning and double sealing for better shelf life.

6. Fully automatic running with safety protections (no pouch no fill, low air pressure stop), minimal manual work needed.
