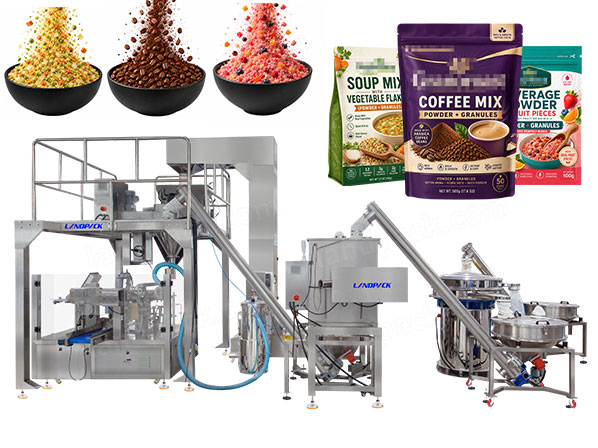

Automatic 4 Heads Linear Weigher Rotary Premade Pouch Packing Machine for Powder and Granule Mixing

Application:

This rotary premade pouch packing machine is suitable for a wide range of powder and granule mixed products, including baking premixes, chocolate baking mixes, cake mixes, brownie mixes, pancake mixes, protein blends with inclusions, meal replacement powders, nutritional beverage powders, cereal mixes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This rotary premade pouch packing machine is suitable for stand-up pouches, zipper pouches, premade pouches, gusset pouches, kraft paper pouches, aluminum foil pouches, M-shaped pouches, and other premade bag formats.

Machine Details:

Working Process

1. Granule Feeding → 4 Heads Linear Weighing → Secondary Feeding → Powder Screw Feeding → Pouch Picking → Laser Coding → Pouch Opening → Air Blowing → Granule Filling → Powder Filling → Brush Cleaning → Double Heat Sealing → Finished Product Output

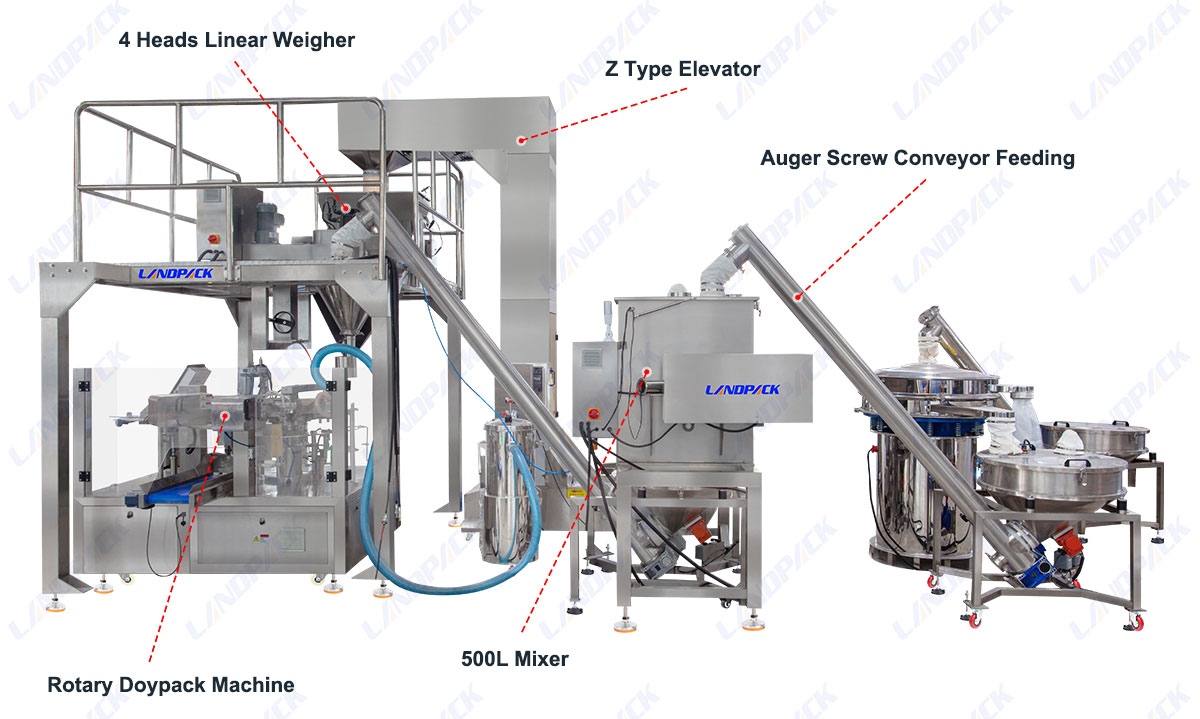

Key Component

Specification

ITEM	LD-8200	LD-8250	LD-8300
BAG SPEED	max 60 bags/min (Depanding on the quality of the packing film,packaging materials,packaging weight ect.)
BAG SIZE	L100-300mm W70-200mm	L100-350mm W130-250mm	L150-450mm W200-300mm
BAG TYPE	Pre-made bags,Stand-up bag,Four-side bas,Three-side bag,Special-shaped bag
WEIGHING RANGE	10G-1KG	10G-2KG	10G-3KG
MEASUREMENT ACCURACY	≤±0.5~1%，（Depanding on the measurement equipment and materials）
MAXIMUM BAG WIDTH	200mm	250mm	300mm
GAS CONSUMPTION	0.8pa 0.3m³/min
TOTAL POWDER/VOLTAGE	1.5KW 380V 50/60HZ	1.8KW 380V 50/60HZ	2KW 380V 50/60HZ
AIR COMPRESS	Not less than 1 CBM

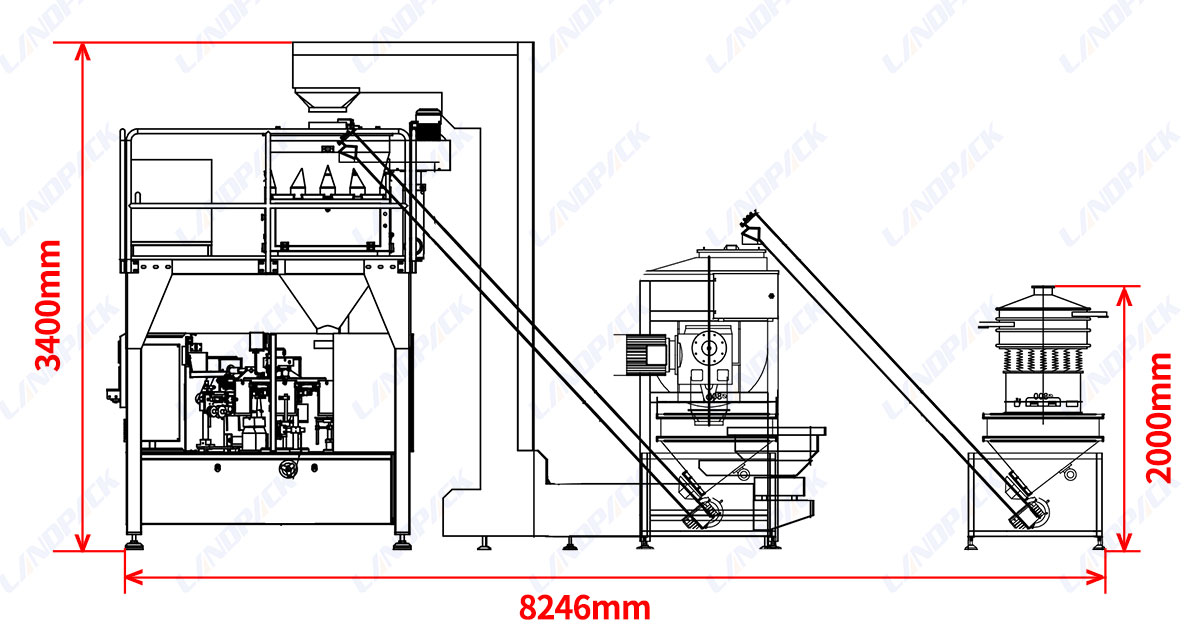

DIMENSION	L1900W1400H1450		L2000W1500H1550
MACHINE WEIGHT	1300KG		1500KG

Features:

1. Custom dual dosing system combines linear weighing and auger filling for accurate powder and granule packaging.

2. Granular materials and powder materials can be filled simultaneously or independently according to different product formulas.

3. LD-8230D 8-station rotary premade pouch machine supports multiple pouch sizes with one-touch bag width adjustment.

4. 500L ribbon mixer ensures uniform blending of complex recipes before packaging.

5. Powder vibrating sieve removes oversized particles and impurities to improve finished product quality.

6. Rotary air blowing device cleans the pouch opening and helps maintain a cleaner sealing area.

7. Double sealing design provides stronger seals and a more professional package appearance.

8. Integrated feeding, mixing, weighing, powder dosing, pouch filling and sealing system reduces labor and improves production efficiency.
