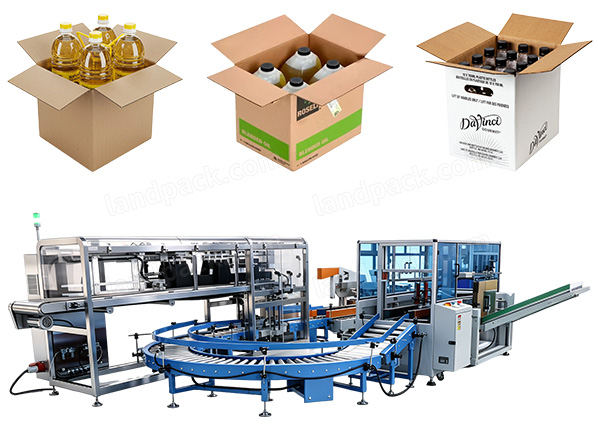

Fully Automatic Top Load Case Packing System Case Erector Sealing Taping Case Packer Machine

Application:

This top-load case packing system is designed for bottled juice, dairy bottles, canned drinks, sauces, medicine bottles, health supplements, cream jars, detergent bottles, chemical solutions.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

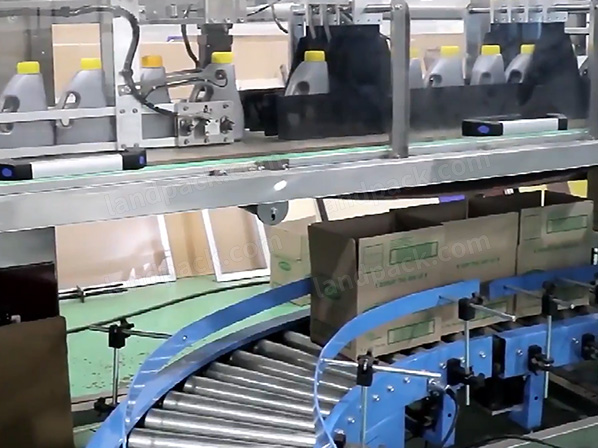

This top-load case packing system uses top-load carton packing, where bottles, cans, or jars are gently dropped into pre-formed cartons. It supports single-layer or multi-layer arrangements, adjustable for different carton sizes, making it suitable for fragile or heavy products.

Machine Details:

Working Process

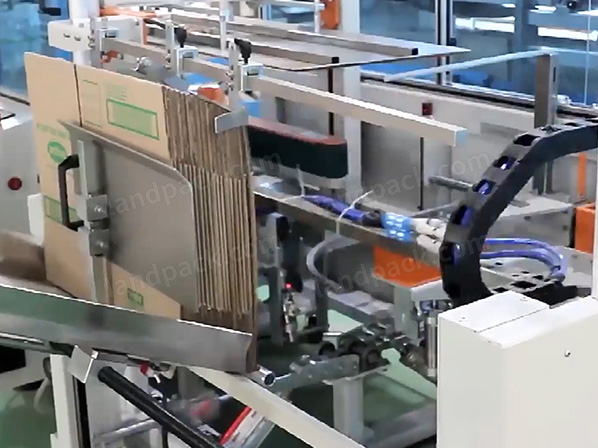

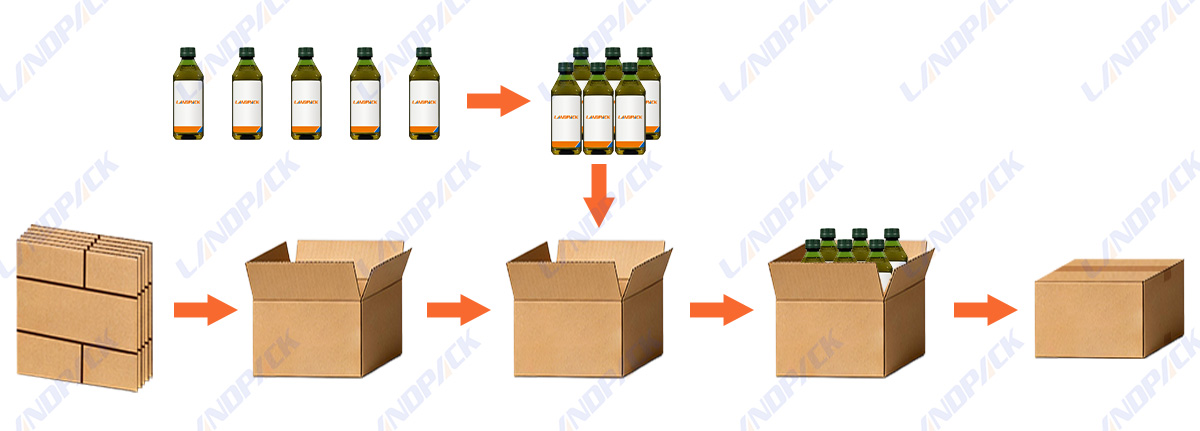

1. Carton magazine → Carton erecting → Product infeed → Top-load drop loading → Tape sealing → Carton outfeed

Key Component

Specification

Name

Case packing station for bottle

Feeding speed

5-40m/min, adjustable (2000-16000 bottles/hour according to 550ml round bottle)

Column width

450mm

column number

adjustable from 1-10

Material size

Height 40-300mm, width20-150mm (other sizes are customized)

Carton size

L250-450×W150-400×H100-400mm (other sizes are customized)

Packing speed

1-15 boxes/min (can be customized)

Power

380V/50HZ/2.5kw

Machine dimension

L3270*W800*1450mm

Machine weight

about 750kg

Features:

1. Capable of quickly packing bottles, cans, and jars into cartons with tidy stacking and minimal product shift.

2. Supports various bottle shapes and sizes, including plastic, glass, and barreled containers.

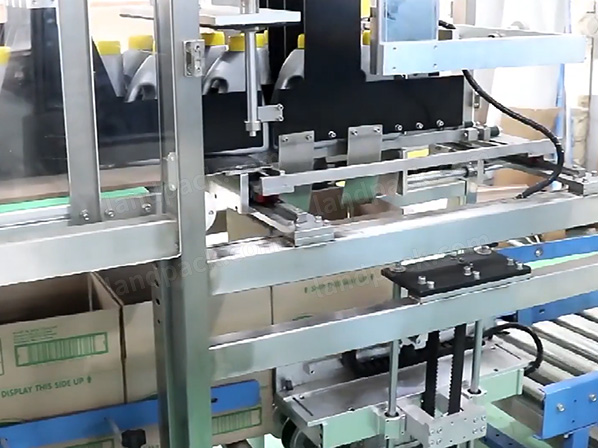

3. Servo motor-driven grippers and top-load drop mechanism ensure smooth, precise, and reliable product handling.

4. Small footprint with stable, economical operation, ideal for integrating into production lines.

5. PLC-controlled with touch screen interface for easy operation, error detection, and flexible settings.

6. Non-pole cylinders and servo-driven grippers provide gentle yet accurate loading, reducing damage and spillage.

7. Designed to connect seamlessly with upstream filling and downstream sealing, strapping, or palletizing units for a complete automated packaging solution.
