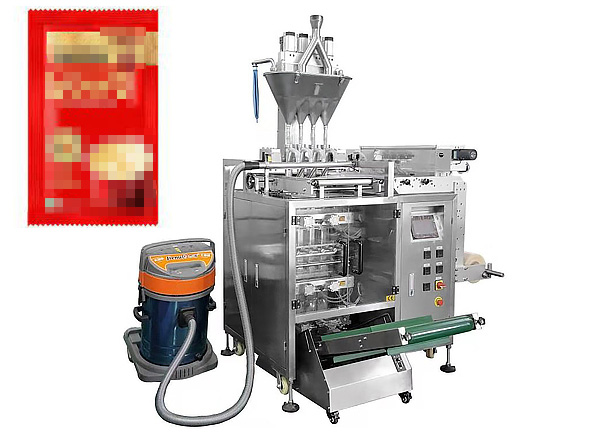

Automatic Coffee Powder Sachet Packing Machine

Application:

This machine is suitable for sachet packaging of coffee powder, with fast packaging speed and high efficiency.

Details:

Model:LDGH480P

Lane Number:4-6track

Filling Method:Auger Filling By Servo Motor

Capacity:Max.40 Cycle/Min

Sachet Size:L:45-120mm;W:50-60mm

Film Weight&Thickness:Max.480mm,0.007-0.10mm

Sealing Type:4 Sides Sealing

Cutting Type:1.Straight Cutting;2.Zig Zag Cutting;3.Continuous Cutting

Air&Power:0.8Mpa 0.8m3/Min;2.8kw

Dimension&Weight:950*1470*1750mm;300kg

Tel/Whtasapp: +86 17388602385
Features:
Sample video:
Samples:
Specification:
Package Material:
Inquiry
Features:

English and Chinese screen display, operation is sample.

PLC computer system, function is more stable, adjustment any parameters not need stop machine.

It can stock ten groups of parameters, simple to change variety.

Servo motor drawing film, positing accurately.

Temperature independent control system, precision get to 1 degree.

Horizontal, vertical temperature control, suitable for various of mix film, PE film bag material etc.
Sample video:
Samples:

Specification:
Model LDGH480P LDGH720P LDGH960P
Lane number 4-6track
4-10track
4-12track
Filling method auger filling by servo motor
Capacity Max.40 cycle/min
Sachet size L:45-120mm;W:50-60mm
L:45-120mm;W:50-90mm
L:45-120mm;W:50-120mm
Film weight&thickness Max.480mm,0.007-0.10mm Max.720mm,0.07-0.10mm Max.920mm,0.07-0.10mm
Sealing type 4 sides sealing
Cutting type 1.straight cutting;2.zig zag cutting;3.continuous cutting
Air&power 0.8Mpa 0.8m3/min;2.8kw 0.8Mpa 0.8m3/min;4.1kw 0.8Mpa 0.8m3/min;5.5kw
Dimension&weight 950*1470*1750mm;300kg 1153*1654*1750mm;400kg 1415*1686*2130mm;500kg

Package Material:

BOPP/CPP/VMCPP.

BOPP/PE

PET/VMPET

PE,PET/PE,etc
