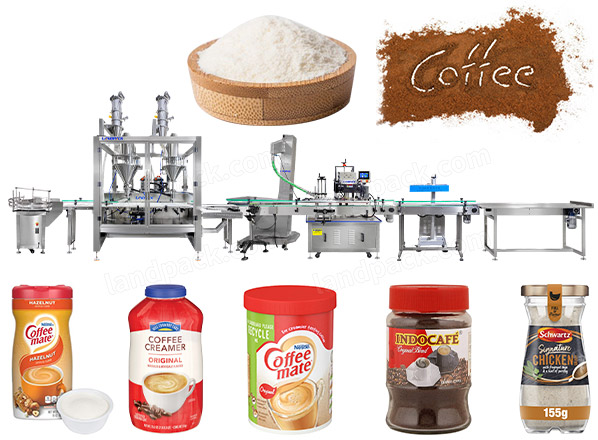

Coffee Mate Bottle Filling Machine Line Automatic Filling Capping Sealing Machine

Application:

This Bottle Filling Line is ideal for automating the filling, capping, and sealing of various powdered products, including coffee creamer, milk powder, protein powder, and nutritional supplements. Its dual auger screw system ensures precise dosing, while the integrated vacuum feeder and dust removal features maintain a clean workspace. This compact line suits industries such as food, pharmaceuticals, and cosmetics, offering efficient and accurate packaging solutions for both free-flowing and non-free-flowing powders..

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

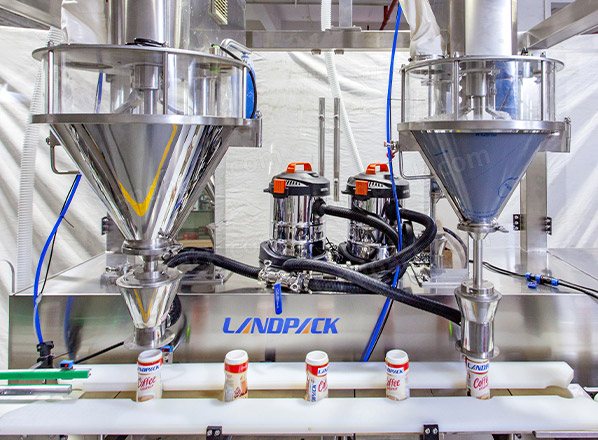

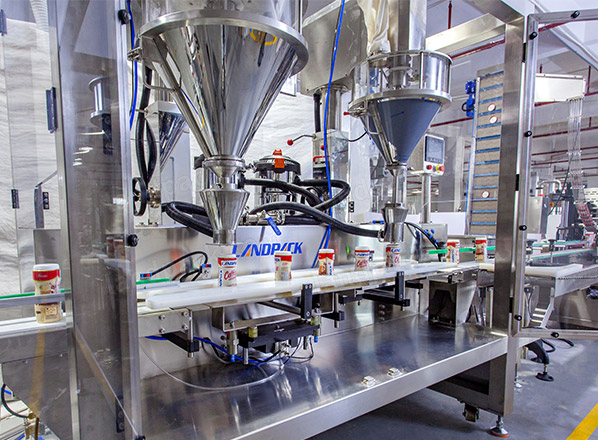

1. Dual Auger Screw Filling with Weight Check: Ensures precise dosing for various powders, including coffee creamer, milk powder, and protein powder; Integrated weight check system enhances filling accuracy.

2.Vacuum Feeder Integration: Compact design with an overall height within 3 meters, saving space; Efficient material transfer reduces manual handling.

3.Dust Removal System: Vacuum dust remover minimizes dust contamination, maintaining a clean workspace.

4.User-Friendly Operation: Easy to operate, suitable for new business setups; HMI touch screen interface supports multiple languages. Landpacking

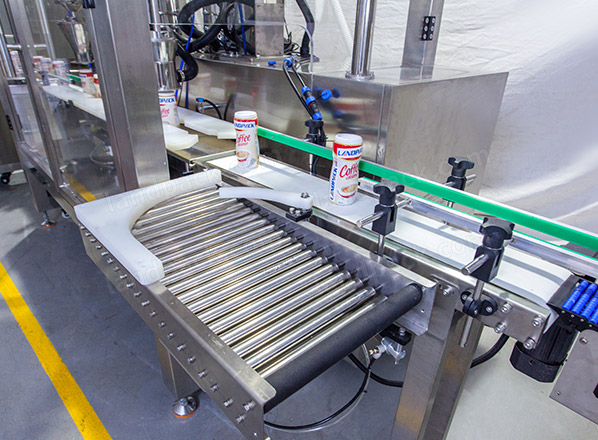

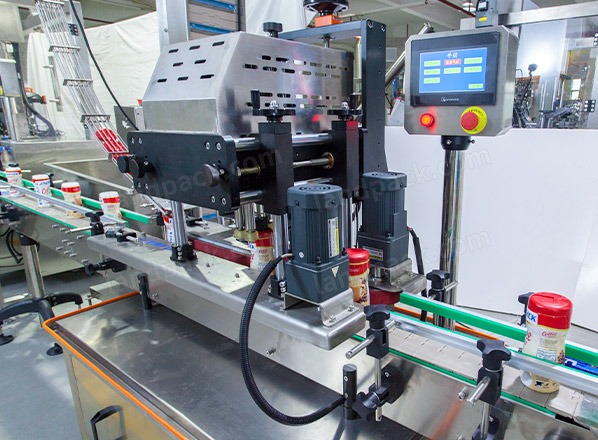

5.Integrated Production Line: Includes bottle feeding turntable, cap lifting device, capping machine, aluminum foil sealing machine, and collection table; Streamlines the entire filling, capping, and sealing process.

6.High-Speed and Accurate Filling: Filling speed of 20–35 bottles per minute with an accuracy of ±1%.

7.Versatile Application: Suitable for various industries, including food, pharmaceuticals, and cosmetics; Handles a wide range of powdered products.

Application:

This Bottle Filling Line is ideal for automating the filling, capping, and sealing of various powdered products, including coffee creamer, milk powder, protein powder, and nutritional supplements. Its dual auger screw system ensures precise dosing, while the integrated vacuum feeder and dust removal features maintain a clean workspace. This compact line suits industries such as food, pharmaceuticals, and cosmetics, offering efficient and accurate packaging solutions for both free-flowing and non-free-flowing powders.

Videos Introduction:

Specification:

Part 1 Automatic powder weighing filling machine
Model	LFP-01（Single Head Powder Filling）	LFP-01（Single Head Powder Filling）	LFPD-50-30（Double Head Powder Filling）
Filling Weight	10-5000g(Replace screw specifications)	10-5000g(Replace screw specifications)	100-2000g
Bottle diameter	Φ30-Φ140mm(Could be customized)	Φ30-Φ140mm(Could be customized)	Φ60-Φ135mm
Bottle Height	50mm-200mm(Could be customized)	50mm-200mm(Could be customized)	601-260mm
Capacity	10-20Bottles/min	20-40Bottles/min	10-25bottles/min
Measure accuracy	≤500g,≤±1%；≥500g,≤±0.5%	≤500g,≤±1%；≥500g,≤±0.5%	100-1000g,≤±2g；≥1000g,≤±5g
Power	2.5KW	5KW	4.5KW
Hopper Capacity	50L	50L	50L，30L
Power	220V,50HZ	220V,50HZ	220V,50HZ
Voltage	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Weight	350kg	550kg	500kg

Part 2 Capping Machine
Model	LDBZ-2C(Double heads servo capping)	LDBZ-C(Single head servo capping)	LDBZ-3C(Three heads servo capping)
Capacity	40 Bottles/min	30Bottles/min	50Bottles/min
Bottle diameter	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）	Φ25mm-Φ100mm（Could be customized）
Bottle sealing height	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）	40mm-200mm（Could be customized）
Power	2.5KW	2KW	3KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.5-0.7Mpa	0.4-0.6Mpa	0.7-0.9Mpa
weight	350kg	300kg	400kg

Part 3 Autoamtic Aluminum Foil Sealing Machine
Model	LD-ZS(Double Heads Aluminum Foil Sealing)	LF-LB-2000(Single Heads Aluminum Foil Sealing)
Applicable bottle diameter	Φ10-200mm（Could be customized）	Φ10-200mm（Could be customized）
Applicable bottle height	H:40-300mm（Could be customized）	H:40-300mm（Could be customized）
Speed	0-30bottle/min	0-10bottle/min
Bottle material	Glass, ceramics, plastics, metals	Glass, ceramics, plastics, metals
Voltage	220V,50HZ	220V,50HZ
Power	1500W	1200W
Dimension	15008001750mm	12006001550mm

Optional:

1. Turntable bottle feeder

2. Dual auger screw filling machine with weight check system

3. Cap lifting device

4. Capping machine

5. Aluminum foil sealing machine

6. Collection table
