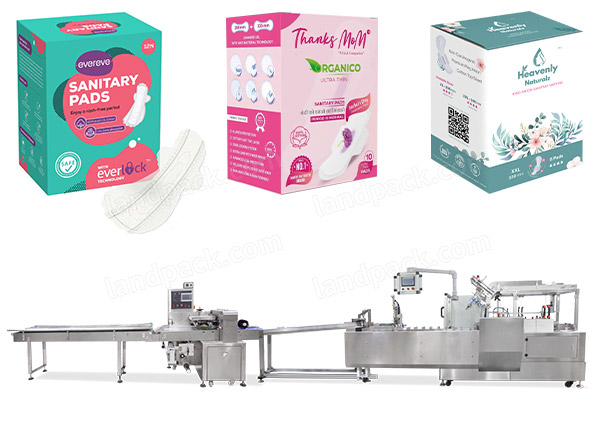

Automatic Sanitary Napkin Pad Horizontal Flow Wrapping Packing Cartoning Machine

Application:

The automatic pillow bag wrapping flow pack machine is suitable for carton packaging of sanitary napkins, cardboard napkins, sanitary towels, pads, napkins, face masks, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

1. Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.

2. The interface features easy and quick setting and operation.

3. Self-failure diagnosis, clear failure display.

4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

5. Temperature-independent PID control is more suitable for packaging different materials.

6. Positioned stop function, without sticking knife or wasting film.

Application:

The automatic pillow bag wrapping flow pack machine is suitable for carton packaging of sanitary napkins, cardboard napkins, sanitary towels, pads, napkins, face masks, etc.

Videos Introduction:

Specification:

Automatic Sanitary Napkin Pad Flow Wrapping Machine
Type	LP-450B	LP-600B	LP-700B
Film width	Max.450mm	Max.600mm	Max.700mm
Bag length	150-450mm	160-500mm	180-600mm
Bag width	50-180mm	100-280mm	100-330mm
Product height	Max.75mm	Max.110mm	Max.110mm
Film roll diameter	Max.320mm
Packaging rate	30-150 bags/min	20-150 bags/min	20-130 bags/min
Power	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw	220V, 50/60Hz, 2.8kw
Machine size	40308201420mm (LWH)	40309701500mm (LWH)	40309801500mm (LWH)
Machine quality	About 650kg	About 680kg	About 720kg
Remarks	optional air-filling device / optional angle folding
Film material	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Cartooning Machine
Speed		20-50 boxes/min
Min box size		70mm40mm15mm (LWH)
Max box size		350mm320mm100mm (LWH)
Available paper		300-350 g/㎡
Air Pressure		0.6-0.8 MPa
Air consumption		200-260 L/min
Power supply		220V/50HZ
Max power		4000KW
Overall dimensions		4000mm1580mm1850mm
Weight		1500kg
Sealing box form		Viscose
Whether it can be customized		Customizable

Optional:

Date coding printer

Air-filling device

Punching device

Double frequency converter controller / servo motor for choice
