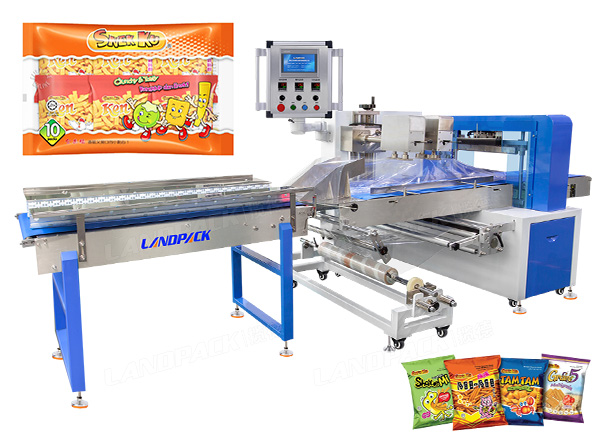

Automatic Secondary Packing Flow Wrapping Machine

Application:

Boost efficiency with our Automatic Secondary Packing Flow Wrapping Machine—ideal for secondary packaging of snacks, potato chips, instant noodles, bread, and wafers. Features PLC control, SS304 food-grade contacts, pneumatic cutting blades, adjustable bag former, and sponge air-exhaust device to save packing space.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

1. PLC + HMI Control: Industrial-grade PLC with full-color touchscreen human–machine interface for intuitive, error-free operation and recipe recall.

2. Food-Grade Contact Parts: All material-contacting components made of SS 304 stainless steel and FDA-approved polyurethane (PU) belt, ensuring hygiene and easy cleaning.

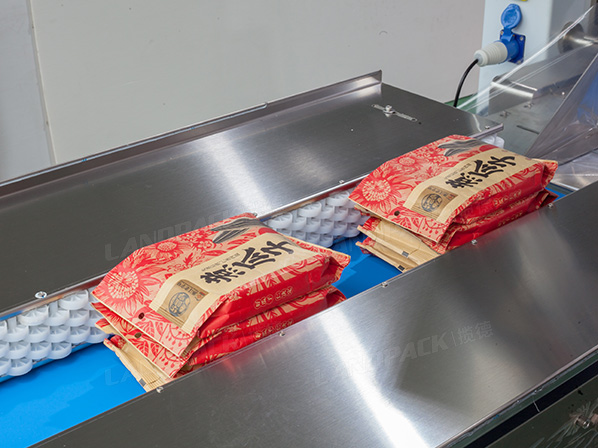

3. End-of-Line Conveyor with Ball-Transfer Rollers: Built-in running-ball conveyor at machine discharge for gentle support of finished bags and smooth transfer to downstream equipment.

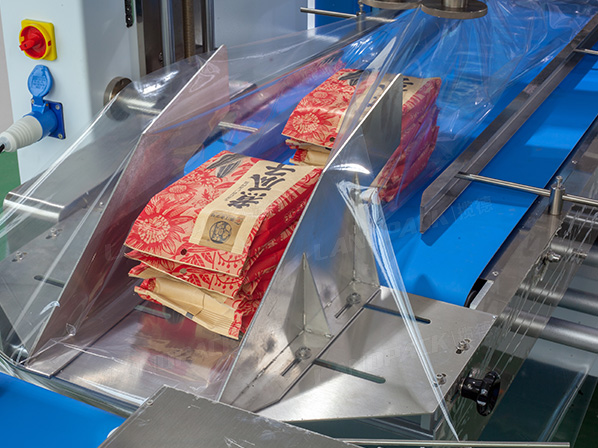

4. Adjustable Bag Former: Quick-adjust bag former accommodates various bag widths; change-over in minutes without tools.

5. Pneumatic Sealing & Cutting: High-precision pneumatic blades deliver stable, clean cuts even on tall or bulky products.

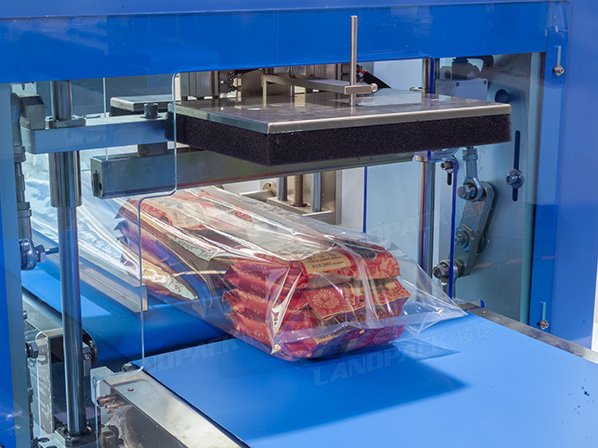

6. Sponge Air-Exhaust System: Integrated sponge-exhaust device removes excess air before sealing, yielding compact bags and saving storage/shipping volume.

7. “No-Product, No-Feed, No-Cut” Safety Logic: Automatically inhibits film feed and blade action when no items are detected, reducing waste and preventing jams.

8. Multi-Language Interface: Supports up to 12 languages for global deployment without software upgrades.

9. 1000 mm Maximum Film Width: Accommodates jumbo roll films up to 1 m wide for high-throughput production.

10. Servo-Driven Film Feeding: Down-film servo motor ensures stable, precise film advancement and consistent bag lengths under varying line speeds.

Application:

Boost efficiency with our Automatic Secondary Packing Flow Wrapping Machine—ideal for secondary packaging of snacks, potato chips, instant noodles, bread, and wafers. Features PLC control, SS304 food-grade contacts, pneumatic cutting blades, adjustable bag former, and sponge air-exhaust device to save packing space.

Videos Introduction:

Specification:

Model	LP-1000X
Film width	Max.1000mm
Bag length	240-700mm
Bag width	150-430mm
Product height	Max.150mm
Packaging rate	20-40 bags/min
Power	220V, 50/60Hz, 6.5kw
Machine size	430012701550mm (LWH)
Machine quality	About 850kg
Frame Material	Carbon steel as standard. SS304/316 are optional
Film material	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Working Process:

1. Feeding the 5-12PCS Snacks bags into the conveyor bet;

2. Down-Film Feeding System by Servo Motor,Sending Film Stable;

3. Bag Former For Forming For different Bag Width;

4. 2 Big Wheels for Clamp the Forming Film;

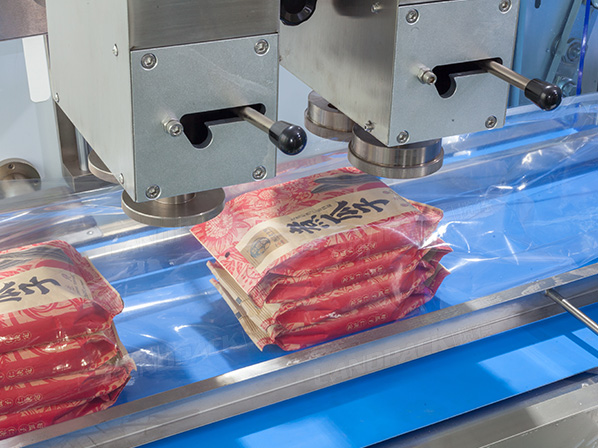

5. 2 Big Heating Wheels for Forming the back side sealing;

6. With Pneumatic Cutting Blades for Cutting Stable for Higher product;

7. Sponge Air Exhaust Device for air go out;

8. Finished Belt;
