6 Lane Granule 3/4 Sealing Sachet Packing Machine

Application:


6 lane granule 3/4 sealing sachet packing machine, it is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee, seeds, spice, etc.

Details:


Model:LD-480K/ 720K/ 960K
Lane Number:4-12 Line
Filling Method: 1.Volumetric cup; 2.Weigher
Capacity: Max.35 cycle/min
Sachat Size; L:45--120mm; W:35-120mm
Film Width & Thickness & Max.960mm; 0.07-0.1mm
Sealing type: 3/4 sides sealing
Cutting type: 1.Straight Cutting; 2.Zig Zag Cutting; 3.Continuous Cutting
Tel/Whtasapp: +86 18688215960
Features:
Application:
Samples:
Specification:
Packing Type:
Inquiry
Features:

Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span. Film sending mechanism can rotate with 90°in level, and add with film contacting mechanism, which make film change and maintain easier.Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.

A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.

High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.

Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.

Accurate in measurement. According to different granule material, specially designed of cylinder pushing vibrating type or flat shape push pull type adjustable measuring mechanism. Vibrating type matches with triangle adjustable measuring cup feeding mechanism, push pull type designed with plate inside measuring cups, both feeding system can be adjusted independently and accurately, each line’s dosage can be adjusted easily and accurately.

Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.

The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.

Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy(±1℃). Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.

Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.

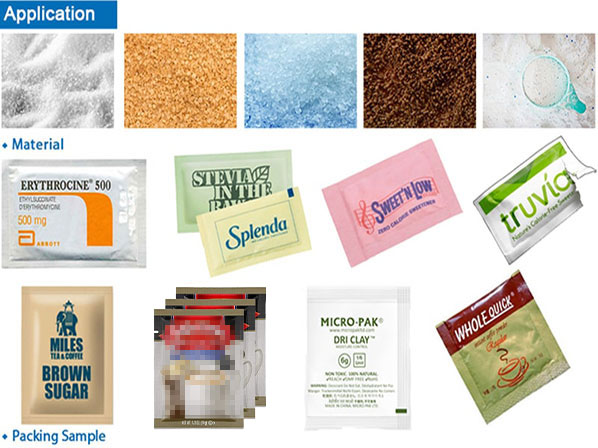

Application:

Application: 6 lane granule 3/4 sealing sachet packing machine, it is suitable for many kinds of fine granule products, such as sugar, salt, small grains, coffee, seeds, spice, etc.

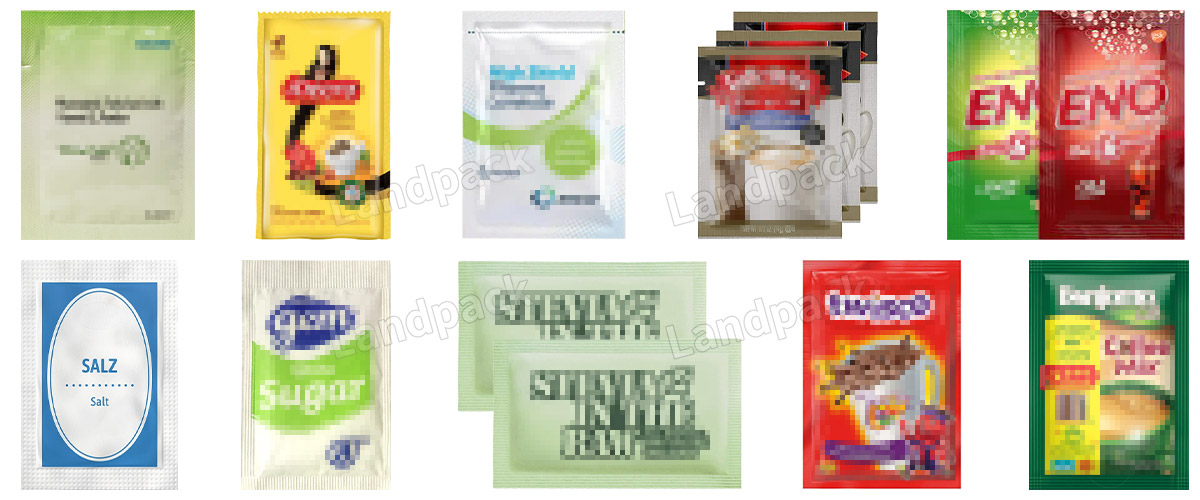

Samples:






Specification:
Model LD480K LD720K LD960K
Track Number 4~6Track 4~10Track 4~12Track
Filling Method 1.Volumetric cup;   2.Weigher
Capacity Max.35 cycle/min
Sachet Size L:45--120mm; W:35-60mm L:45--120mm; W:35-90mm L:45--120mm; W:35-120mm
Film Width & Thickness Max.480mm; 0.07-0.1mm Max.720mm; 0.07-0.1mm Max.960mm; 0.07-0.1mm
Sealing Type 4 sides sealing 4 sides sealing 4 sides sealing
Cutting Type 1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power 0.8 mpa  0.8m³/min; 2.8kw 0.8 mpa  0.8m³/min; 4.1kw 0.8 mpa  0.8m³/min; 5.5kw
DIM & WT 950*1470*1750mm; 300kg 1153*1654*1750mm; 400kg 1415*1686*2130mm; 500kg
Packing Type:

1.Sealing type:Back sealing/ Stick bag;

2.Cutting type:Straight cutting; Zig zag cutting; Round cutting; Irregular
