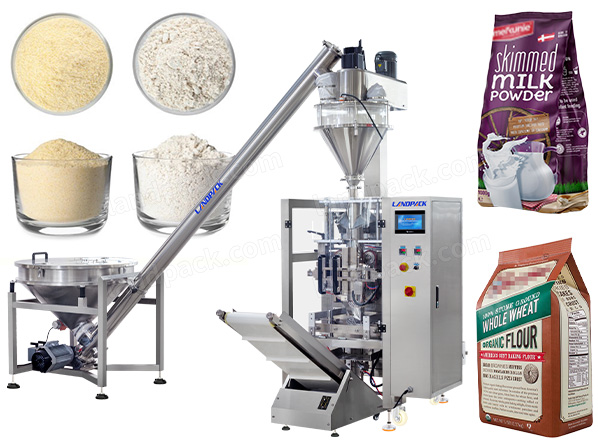

Vffs Vertical Automatic Flour Packing Machine

Description:

It is commonly used for food-grade powders such as flour, milk powder, coffee powder, cocoa powder, and protein powder, as well as nutrition blends and functional ingredient powders. Its gusset pouch capability and high-precision screw dosing make it a reliable choice for factories producing retail packs, bulk refill bags, and industrial powder packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

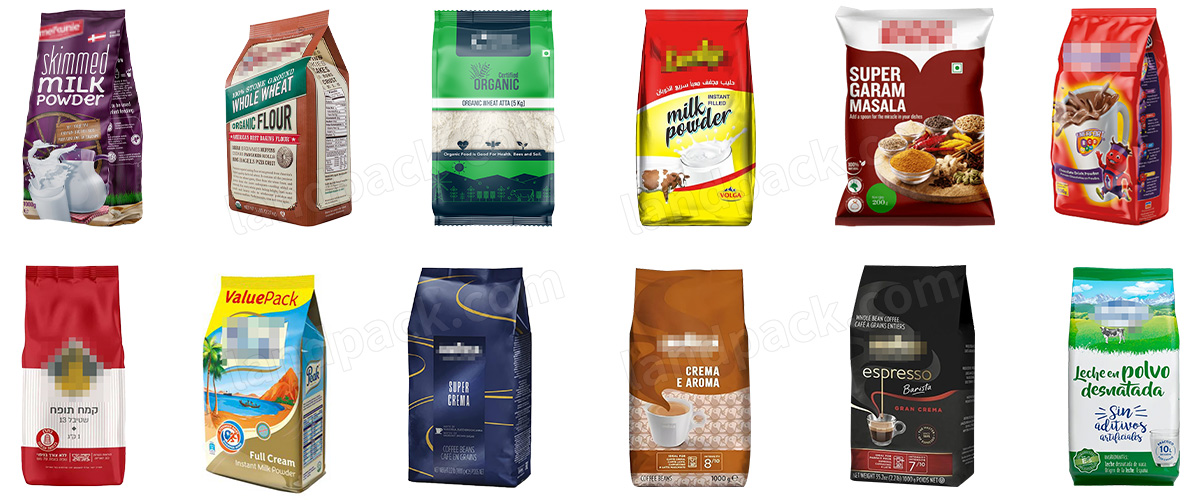

Packing Type:

This machine is fully compatible with gusset pouches, back sealing pouches, and pillow pouches, allowing manufacturers to switch easily between different retail and bulk-pack formats. These pouch styles are formed and sealed with high stability thanks to the LD-520D’s rigid frame, precise film-pulling system, and consistent heat-sealing performance.

Wide Application Range

With consistent dosing accuracy, a clean dust-control design, and flexible film compatibility, the machine adapts easily to different powder characteristics—from free-flowing to slightly sticky formulations.

Food & Nutrition Powders:

• Flour, milk powder, coffee powder

• Cocoa powder, protein powder, cereal powder

• Instant beverage mix, nutritional supplement blends

Seasoning & Additive Powders

• Baking powder, starch, spice blends

• Soup base powder, premix seasoning

Industrial & Chemical Powders

• Fine mineral powders, additive powders

• Detergent powder, engineering material powders

Machine Details:

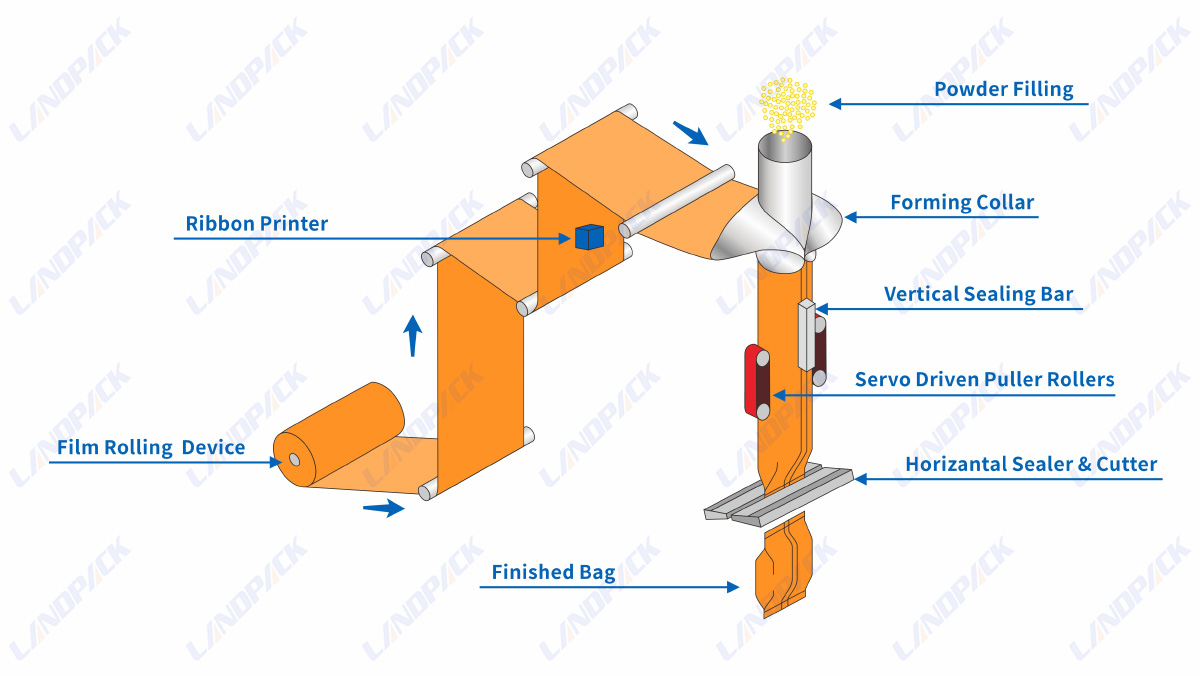

Working Process

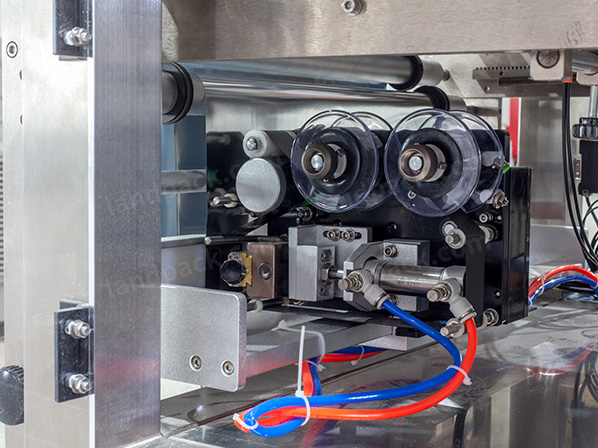

1. Automatic material conveying → 2. Screw metering → 3. Roll Film Feeding → 4. Ribbon date printer → 5. Bag making → 6. Output

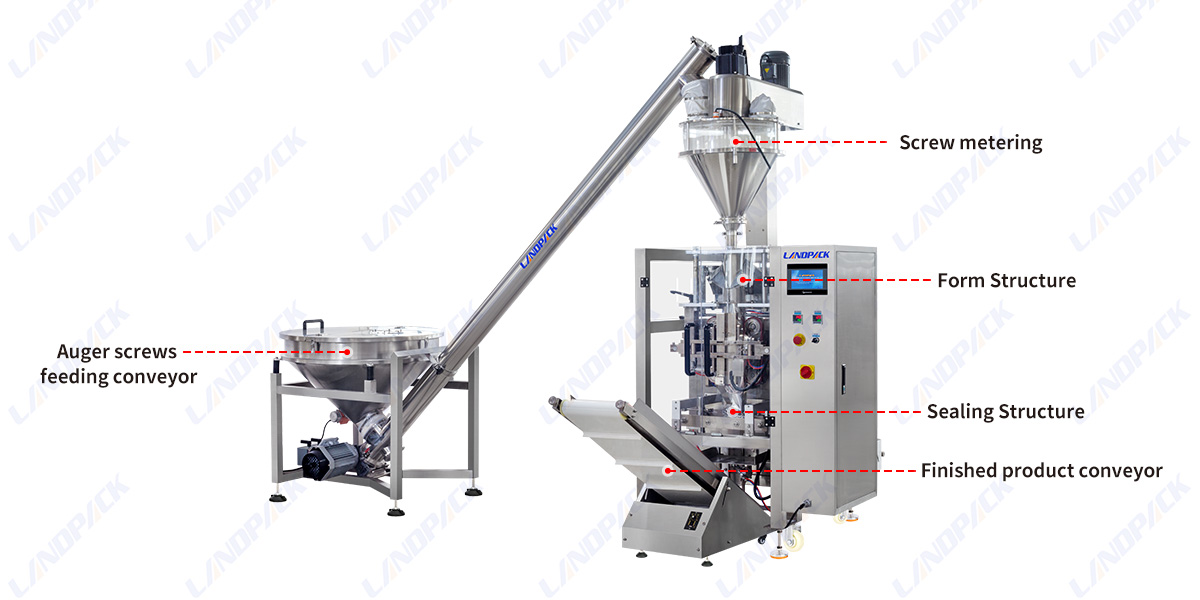

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

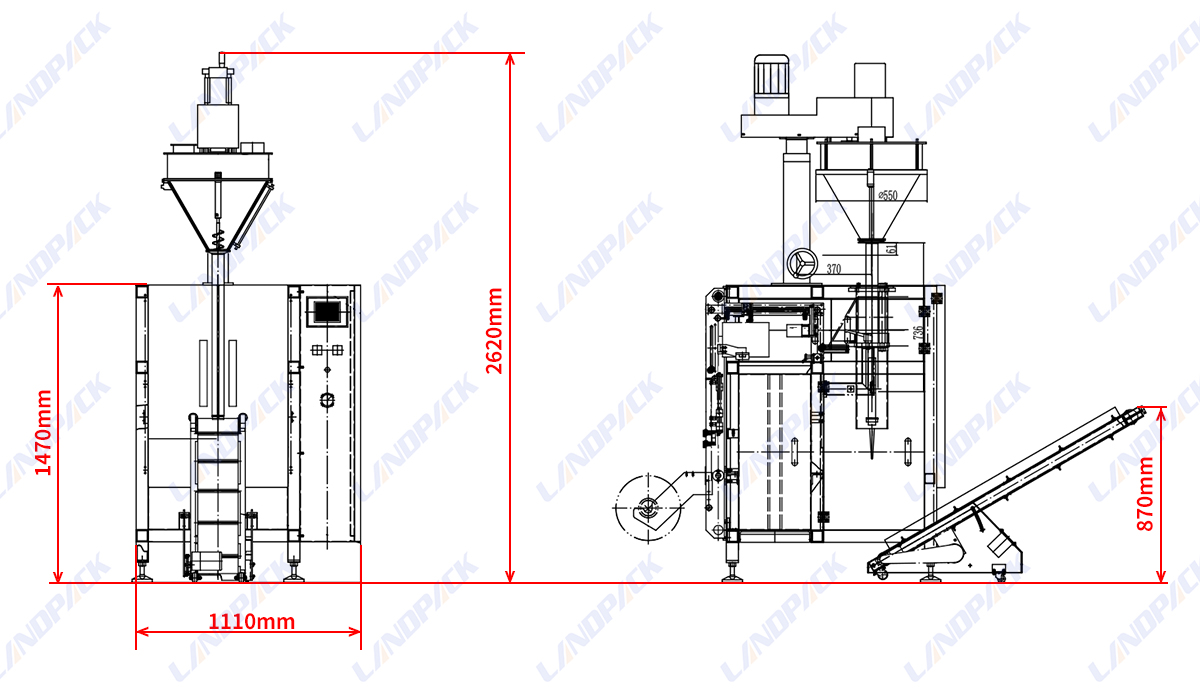

Specification

Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200

Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm

Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm

Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm

Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm

Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min

Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm

Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L

Features:

Machine Image	Benefits

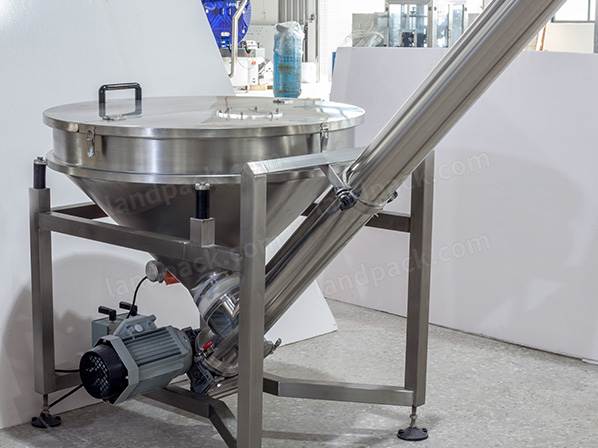

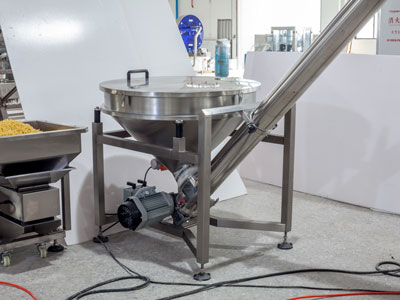

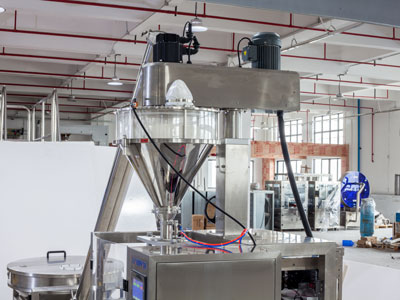

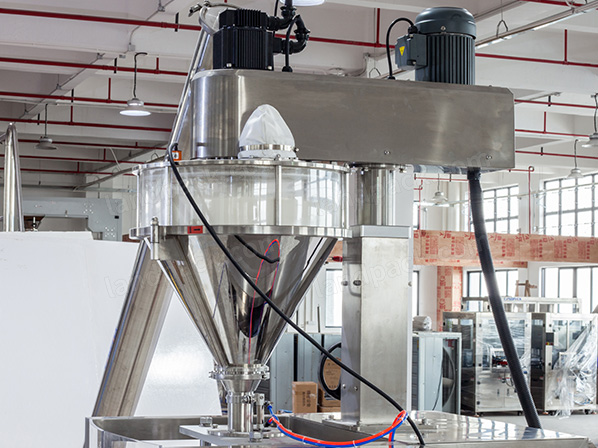

	High-capacity 50L screw dosing system for consistent powder feeding The enlarged 50L hopper ensures stable and continuous metering of fine and medium powders. Its servo-driven screw provides accurate dosing with minimal fluctuation, even for light or dusty materials like flour or milk powder.
	Precise weighing and dosing for high-accuracy powder packaging The servo-controlled auger system delivers reliable weight control, achieving tight accuracy for products such as protein powder and coffee powder. This reduces giveaway, improves batch consistency, and supports high-efficiency production.

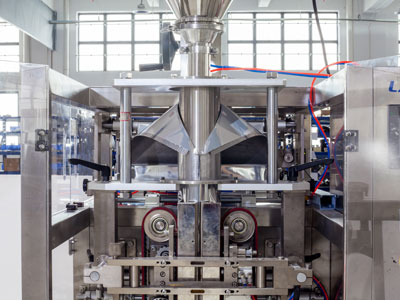

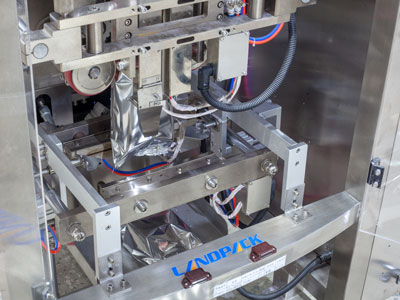

	Gusset pouch forming system for large-volume, stable bags The LD-520D forms durable gusset pouches that expand to accommodate heavier loads and maintain stable standing. This is ideal for 1–5 kg powder applications where bag strength and shelf presence matter.
	Dust-control design to keep the filling zone clean and safe A sealed filling area and optimized dust-collection channels minimize powder buildup during operation. This ensures cleaner production, reduces maintenance needs, and protects critical components from contamination.

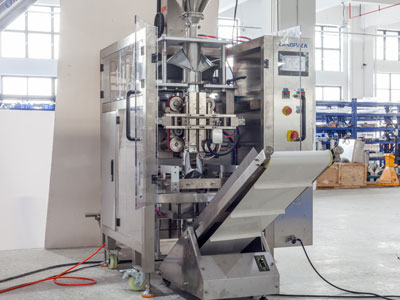

	Heavy-duty vertical machine structure for long-term reliability Built with a reinforced frame and high-quality components, the LD-520D handles dense powders and large bag sizes without performance loss. Its stability supports continuous operation in food, nutrition, and industrial powder plants.

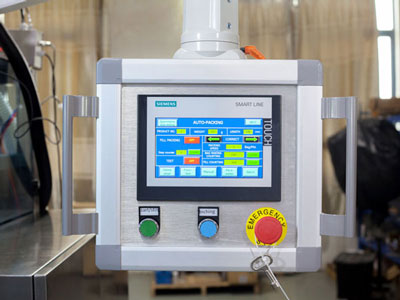

	User-friendly touch screen and recipe storage for quick changeovers The control system allows operators to save multiple product settings, reducing setup time when switching between flour, milk powder, protein blends, and other powder products. This boosts flexibility in different production lines.
