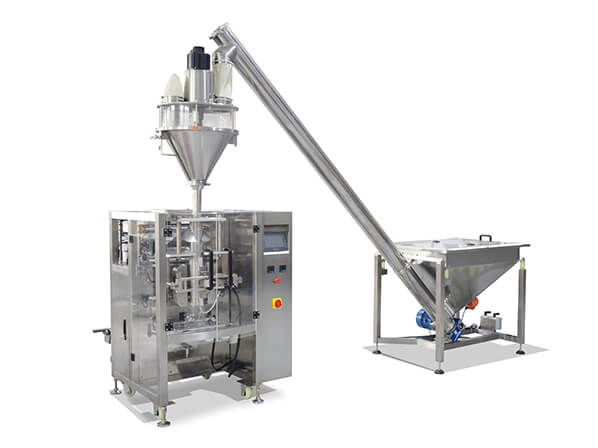

Automatic Powder Packing Machine with Screw Filling Tube LD-420D/ LD-520D

Application:

Suitable For Automatic Packaging Of Various Kinds Of Powder: Milk, Coffee, Chili Powder, Spices, Sugar, Soap Powder, Curry Powder, Washing Powder etc.

Details:

Model:LD-420

Film Thickness:0.04-0.08mm

Bag Length:80-300mm

Bag Width:60-200mm

Film Roll Diameter:Max.320mm

Pakaging Rate:5-60bag/min

Film Width:Max.420mm

Measurement Range:150-1500ml

Tel/Whtasapp: +86 18688215960
Feature:
Application:
Samples:
Specification:
Combined parts:
Inquiry
Feature:

Simple construct, reliable circulator, easy maintenance.

The machine adopt the screw pole putting material, adopting servo-code and the.microcomputer technology control is the main technology feature.

Simultaneous code control, sensitive action, low noise, outstanding, reliable measure,speed quickly, high precise soon. Another it can display the measure counter.
Application:

Suitable for automatic packaging of various kinds of powder: milk,coffee, chili powder, spices,sugar, soap powder, curry powder,washing powder etc.
Samples:

Specification:
Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm
Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm
Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm
Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min
Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm
Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L
Combined parts:

ZV series main frame

Screw metering machine.

Screw infeed conveyor

Product conveyor
