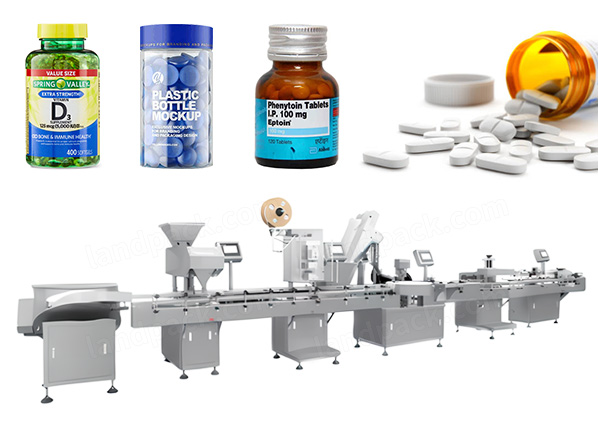

Automatic Tablet Capsule Pharmaceutical Bottle Filling Counting Capping Labeling Machine Line

Application:

This pharmaceutical bottle packaging line is suitable for tablet, capsule & gummy counting, filling, capping & labeling. High-speed, GMP-compliant, precise for pharma & supplement packaging.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

1.PLC synchronized system working – All the modules (unscrambler, counter, filler, sealer, capper, labeler) run synchronously for long time stable production.

2.Modular type – Core units are modularized for easy setting up, stand-alone use* easy set-up/breakdown for multi-product lines.

3.Stainless steel GMP-compliant design – Frame material of SUS304, products contacting SUS316, meets high pharmaceutical requirements.

4.High capacity & precision: 8, 20-40 bottles/mim, 16: 50-80 bottles/min, 32: 100+ bottles/min.

5. Fast format changeovers – Stepless frequency contro and variable servo/PLC operation enable quick product or container size changeovers

6. Automatic error prevention / Your safety – such as „no‑bottle no‑fill“, „no‑cap no‑fill“ prevent waste and provide safety.

7. User friendly HMI/PLC control – With an easy touch control panel for parameter input, storing and fault showing with one‑man operation.

8. Flexible options – Accessories such as Desiccant inserter, foil/induction sealer, bottle unscrambler, cap sorter/capper, reject detection and optional cartoning.

9. Space saving & hygienic – Compact footprint with easy-wipe clean design, compliant with GMP and hygiene standards.

Application:

This fully automated machine line handles the complete end‑of‑line bottle packaging workflow for a wide range of granular and solid products, including: Tablets, pills, capsules, gummy candies, softgels, chewing gums, vitamins. Ideal for pharmaceutical, nutraceutical, food, supplement, and confectionery industries.

Core processes: bottle unscrambling, precise counting & filling, aluminum-foil or induction sealing, screw capping, labeling (with optional cartoning, Place preservative)

Videos Introduction:

Specification:

Model	Application	Capacity	Power	Gas consumption	Overall Dimension
8 channel counting line	Tablets and pills below φ20 Capsule No.000-5 (customizable channels)	20-40 bottles/min	220V /6.75KW	1.0m³ /min	100008502500mm
16 channel counting line		50-80 bottles/min	2.0V; o.75Kv.	1.2m³ /min	115008502500mm
32 channel counting line		100+ bottles/min	220V/8KW	1.4m³ /min	125000* 850*2500mm

Workflow:

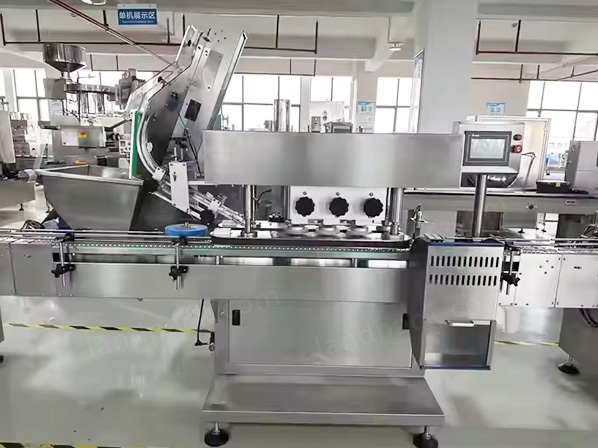

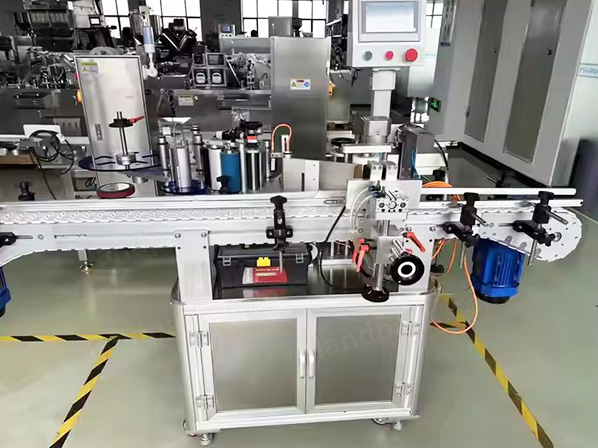

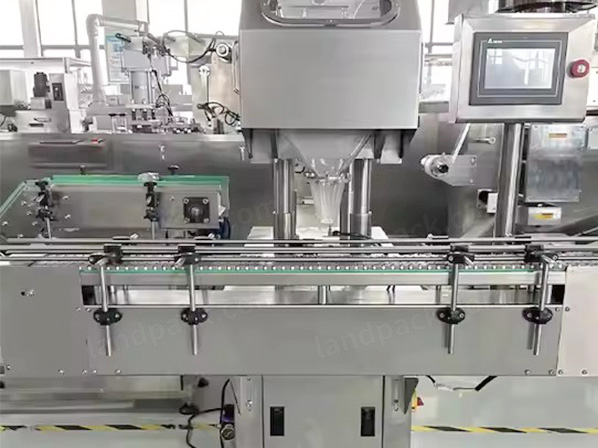

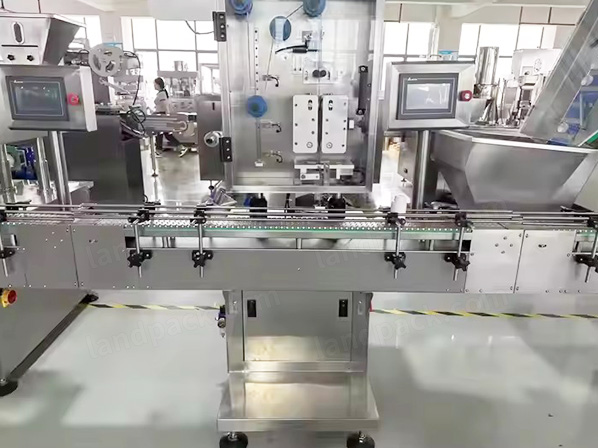

1. Bottle Unscrambler: Organzie messy bottles → 2. Counting Machine: Counting pills and filling into bottle;→ 3. Desiccant Inserter: Stuff the desiccant into the bottle;→ 4. Capping Machine: Tighten the cap with anti-lock prevents excessive damage;→ 5. Alu-foil Sealing Machine: Seal the bottle lip with aluminum foil;→ 6. Labeling Machine: Stick a label on the body of the bottle automatically;→ 7. Bottle Unscrambler: Organzie messy bottles;→ 8. Counting Machine: Counting pills and filling into bottle;→ 9. Desiccant Inserter: Stuff the desiccant into the bottle;→ 10. Capping Machine: Tighten the cap with anti-lock prevents excessive damage;→ 11. Alu-foil Sealing Machine: Seal the bottle lip with aluminum foil;→ 12. Labeling Machine: Stick a label on the body of the bottle automatically.
