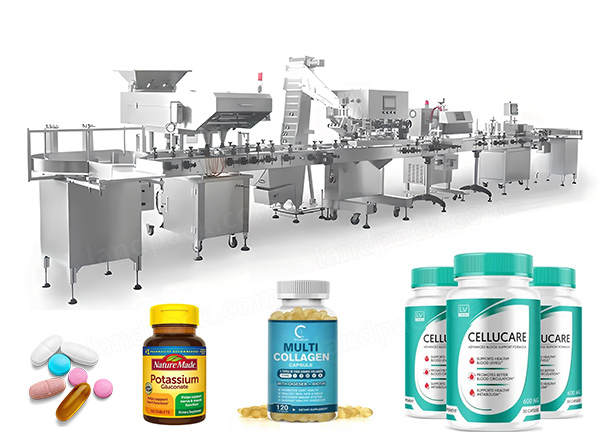

Automatic Tablet Pill Counting Filling Packing Line

Application:

1. Pharmaceutical Manufacturing: Efficient bottling of tablets, capsules, softgels, lozenges with precise counts, sealed and labelled per regulatory standards; 2. Nutraceutical & Supplements: Ideal for vitamin, mineral, herbal product packaging requiring fast, accurate filling and secure sealing; 3. Food & Confectionery: Adaptable for candy, gummies and other small solid edibles in bottles; 4. Cosmetics & Chemical Industries: Can pack small solid chemical or cosmetic pellets into bottles; 5. Contract Packaging (CDMO/CPO): Flexible setup caters to different clients, product lines and frequent format changes.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Features:

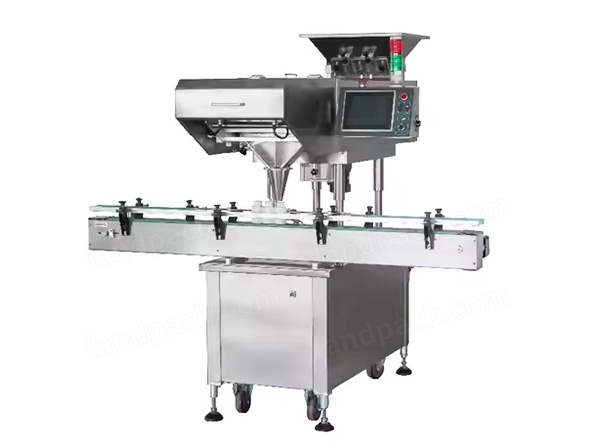

1.Multi‑Channel Counting System: Equipped with 8–16 electronic counting channels, delivers high output (up to 70 bottles/min for 60‑piece bottles) with precision accuracy > 99.8 %;

2.Stainless-Steel Construction: Product-contact parts made of SUS #316 stainless steel, compliant with cGMP, CE, ISO and SGS standards;

3.Flexible Product Compatibility: Handles tablets (Ø 3–25 mm), hard capsules (000–5#), softgels, gummies, candies and other solid forms;

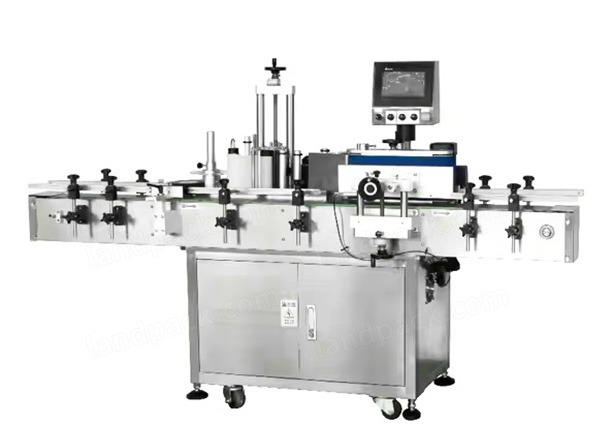

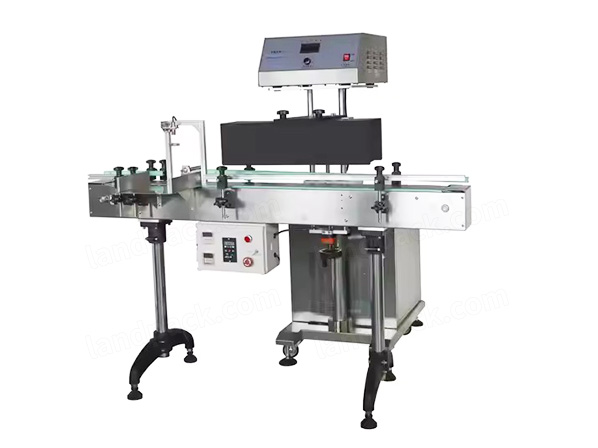

4.Integrated Bottling Line: Seamless workflow includes bottle unscrambler, counting, desiccant insertor, cotton filler, automatic capping (screw, induction or foil), and optional labeler;

5. PLC + Touch‑screen HMI: User-friendly interface enables adjustable settings (count, speed, turntable rate), recipe storage and automatic counting record;

6.Tool-Free Changeover: Quick mechanical adjustments allow smooth transition between bottle or pill sizes without special tools;

7.Dust & Contamination Control: Fully enclosed design with dust-accumulation device and clean-in-place readiness;

8.Compact & Modular Layout: Small foot‑print, movable design supports future upgrades to full automation;

9.Global Support & Warranty: 3‑year warranty with worldwide engineer support; on‑site commissioning (e.g. $550/day) ;

Application:

Pharmaceutical Manufacturing: Efficient bottling of tablets, capsules, softgels, lozenges with precise counts, sealed and labelled per regulatory standards.

Nutraceutical & Supplements: Ideal for vitamin, mineral, herbal product packaging requiring fast, accurate filling and secure sealing.

Food & Confectionery: Adaptable for candy, gummies and other small solid edibles in bottles.

Cosmetics & Chemical Industries: Can pack small solid chemical or cosmetic pellets into bottles.

Contract Packaging (CDMO/CPO): Flexible setup caters to different clients, product lines and frequent format changes.

Videos Introduction:

Specification:

Model	Application	Capacity	Power	Gas consumption	Overall Dimension
8 channel counting line	Tablets and pills below φ20 Capsule No.000-5 (customizable channels)	20-40 bottles/min	220V /6.75KW	1.0m³ /min	100008502500mm
16 channel counting line		50-80 bottles/min	2.0V; o.75Kv.	1.2m³ /min	115008502500mm
32 channel counting line		100+ bottles/min	220V/8KW	1.4m³ /min	125000* 850*2500mm

Workflow:

Bottle Unscrambler → Tablet Counting & Filling → (Desiccant Inserting) → (Cotton Inserting) → Capping → (Induction Sealing) → Labeling → (Cartoning / Collection)
