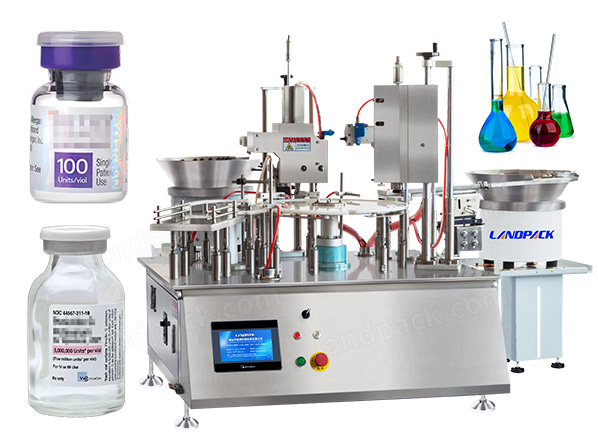

Fully Automatic Vial Filling Capping Machine

Advantages:

1. Capacity: Up To 30 BPM 2. GMP-compliant

3. Fill Volume: 1ml-3ml 4. Servo Motor

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Video:

This video shows that our advanced vial filling machines are used in pharmaceutical and other industries,
providing precise dosage, hygienic operation, and fully automated filling for essential oils, flavors, reagents, and injectables.

This video specifically shows a complete packaging solution with vial filling and labeling machine. From precise liquid filling to capping and labeling,
this machine reduce human error, improves efficiency, and ensures every container meets the industry standards.

Container Type:

This machine is suitable for filling liquid into perfume bottle, vial, essential oil bottle, syringe, cartridge, if you need the complete packing solution for your vial such as filling capping labeling machine,please click here.

Machine Details:

Working Process

1. Automatic Feeding

2. Precisely Filling

3. Stoppering

4. Capping

5. Finished Product Output

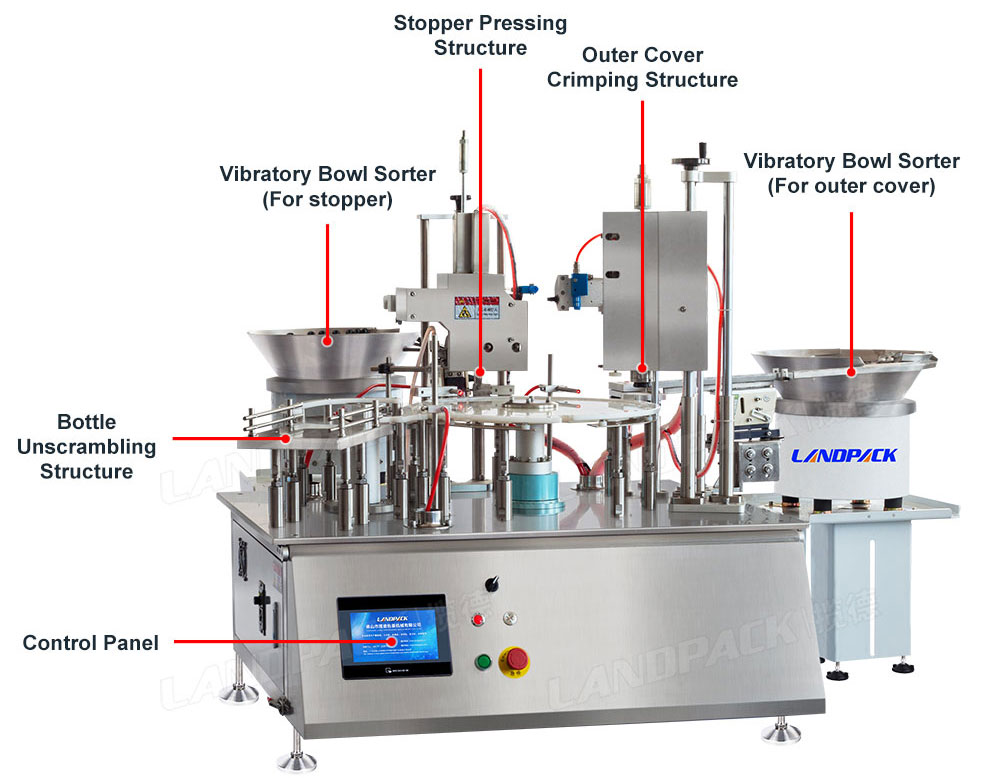

Key Component

Specification

Model	LD-AFC10
Voltage	110/220V 50-60HZ
Power	2KW
Filling range	20ML (can be customized according to need)
Working speed	About 30 bottles/min (based on filling volume)
Filling accuracy	±2%
Air consumption	0.8-2m³/h
Pressure	0.3-0.8Mpa

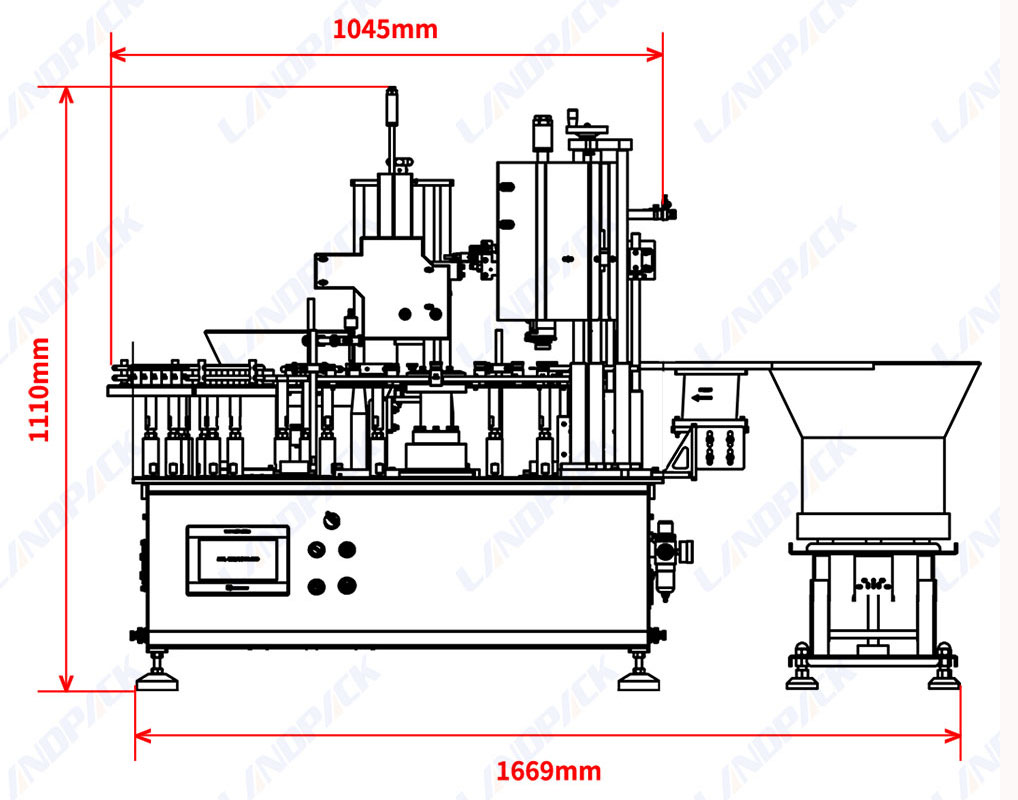

Packing size	About 156014601600mm
Packing weight	About 562kg

Features:

Machine Image	Benefits

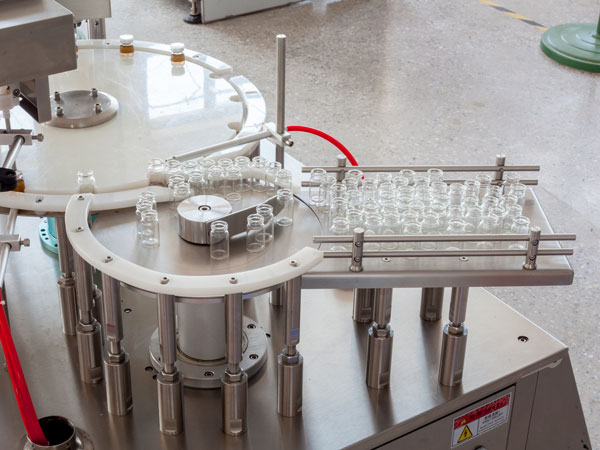

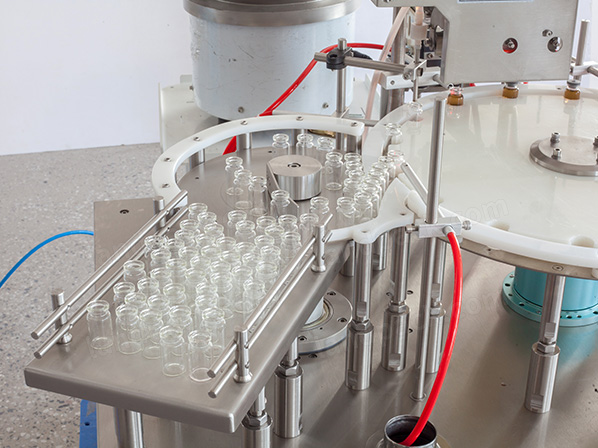

	Vial Feeding System The vial feeding system ensures smooth and continuous supply of each glass vial through a rotary table. It arranges bottles in the right position for the next steps, preventing jams.

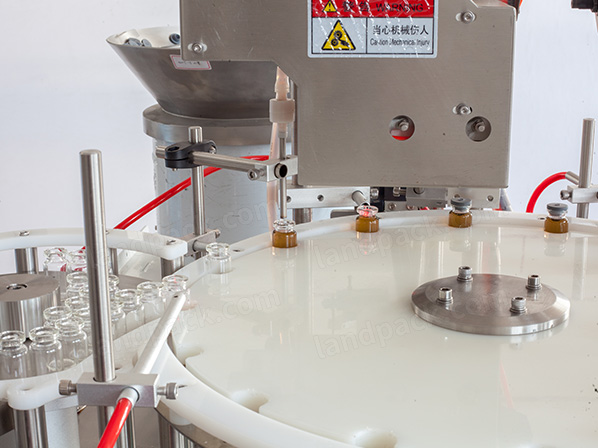

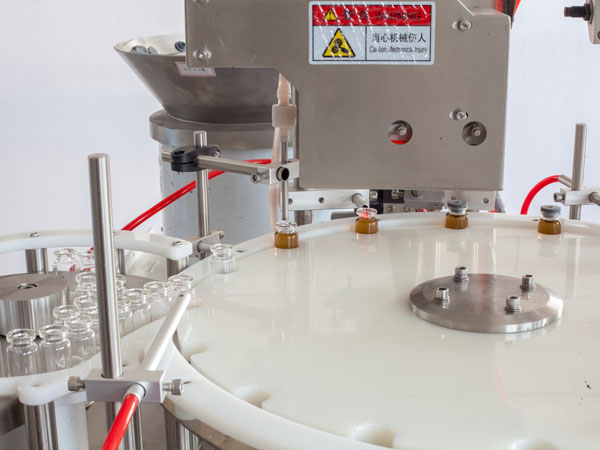

	Filling System The filling system uses peristaltic pumps to deliver highly accurate liquid dosing. Designed with anti-drip and no-bottle-no-fill features, the machine meets the pharmaceutical standard.

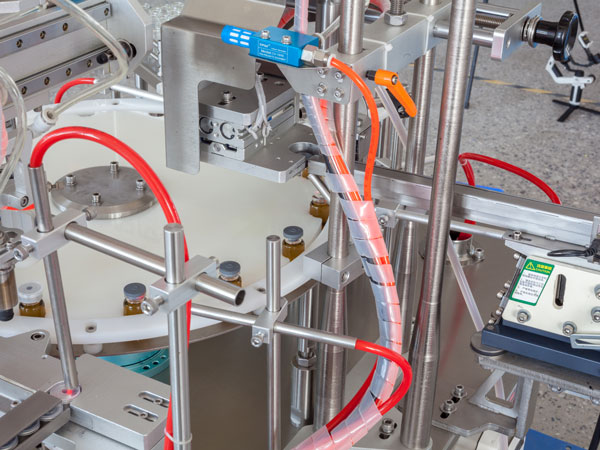

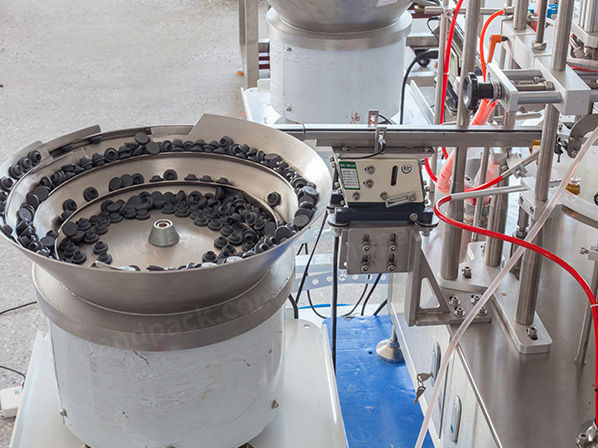

	Stoppering System After filling, the stoppering system automatically places rubber stoppers into vial openings. With servo-driven accuracy, it ensures tight sealing , preventing contamination, and preparing containers for secure capping.

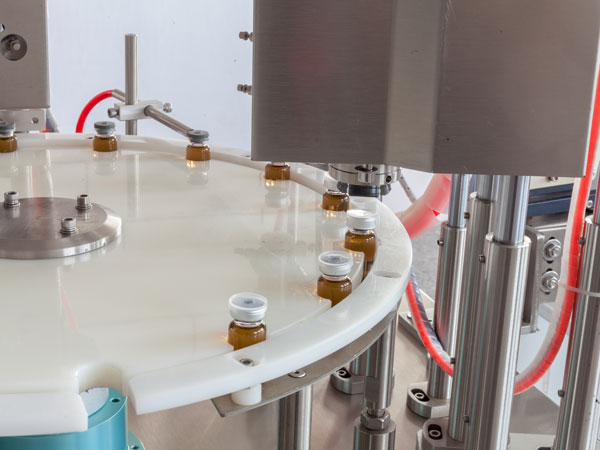

	Capping System The capping system caps vials with aluminum or flip-off caps using precise crimping heads. It provides tamper-proof closure, ensures product safety during handling, transport, and storage in compliance with cGMP pharmaceutical packaging standards.

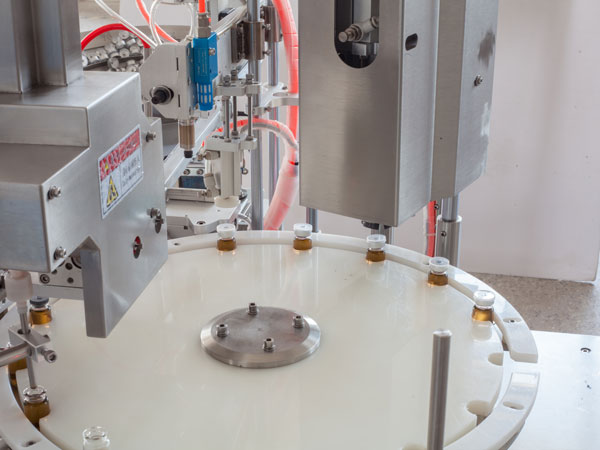

	Output System: The product conveyor collects vials in a smooth, orderly flow. It transfers finished products to downstream processes like labeling, secondary packaging, or tray loading.
