Cream Lotion Filling Machine | Inline Filler System

Description:

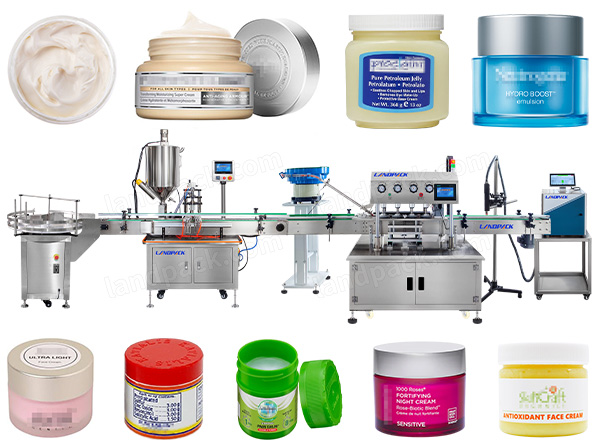

This single-head cosmetic cream filling machine is designed for accurate and stable filling of cream and viscous liquid products, making it ideal for a wide range of applications such as skincare creams, cosmetic lotions, body creams, hair conditioners, hand creams, and facial moisturizers.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application(Bag & Specific material):

This cream lotion filling machine is suitable for various containers, including plastic bottles, glass bottles, jars, and cosmetic containers with screw caps or press caps. It supports different bottle shapes such as round, square, and irregular designs, making it flexible for small-volume cosmetic packaging

Wide Application Range

This liquid filling line, delivers stable accuracy and clean filling for medium- to high-viscosity liquids such as creams. It is widely applied across

Cosmetic & Personal Care products

• Facial cream, body lotion, hand cream, hair conditioner, and skincare emulsions;

Food & Nutritional Products

• Honey, syrup, chocolate sauce, salad dressing, and thick condiments

Daily Chemical Liquids

• Shampoo, body wash, liquid soap, laundry detergent, and disinfectant gel

Machine Details:

Working Process

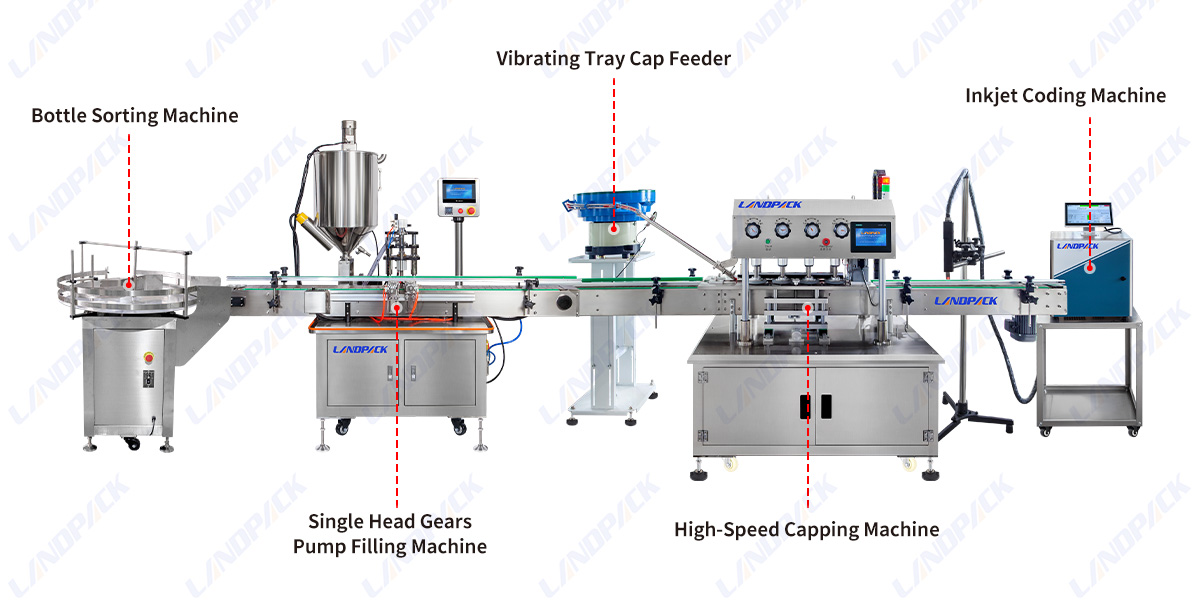

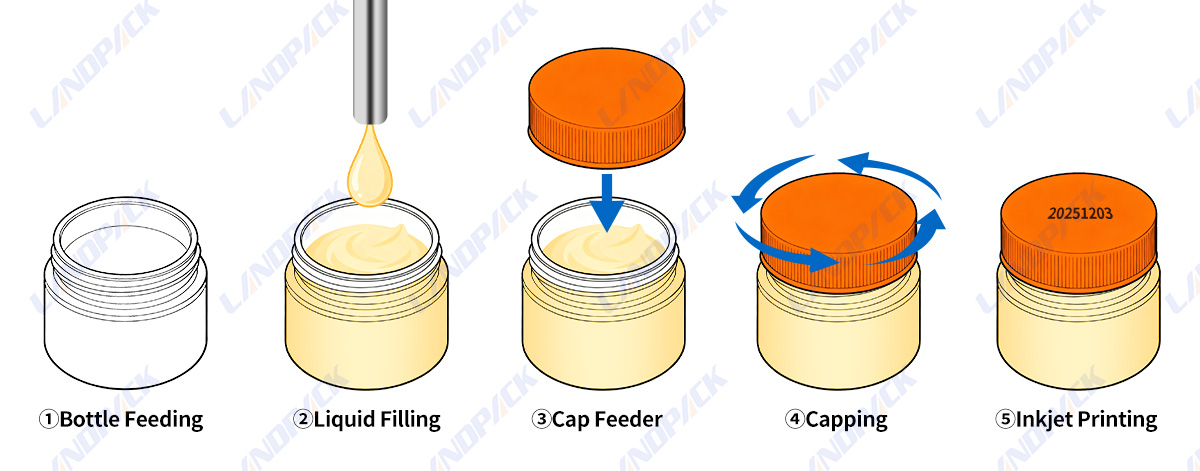

1. Bottle Sorting → 2. Cream Filling → 3. Cap Feeding → 4. High-Speed Capping → 5. Inkjet Coding

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Bottle Liquid filling machine
Model	LFZ-01/02/03/04	LFZ-06	LFZ-08	LFZ-10	LFZ-12
Filling Range	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)	50-1000ml (customizable)
Production Speed	<15-25 bottles/min	<20-35 bottles/min	<30-40 bottles/min	<40-50 bottles/min	<60 bottles/min
Measurement Accuracy	±1%	±1%	±1%	±1%	±1%
Power	2KW	2.5KW	3.5KW	5KW	5KW
Voltage	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz	220V, 50Hz
Air consumption	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa	0.6-8Mpa
Weight	600kg	650kg	800kg	800kg	800kg
Dimension	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)	L4000W1320H2090(mm)

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Inkjet Printer Machine
Power supply	220V 60Hz
Printing speed	1024 seconds (5*7)
Printing materials	paper,plastic products,pipes,food bags,metal,glass, paper cups,etc.
Store information	The system can store 1000 print information
Machine size	length 370mm width 260mm height 500mm
Ink consumption	70 million words per print (5*7)
Machine weight	21kg
Package size	560350570mm

Features:

Machine Image	Features

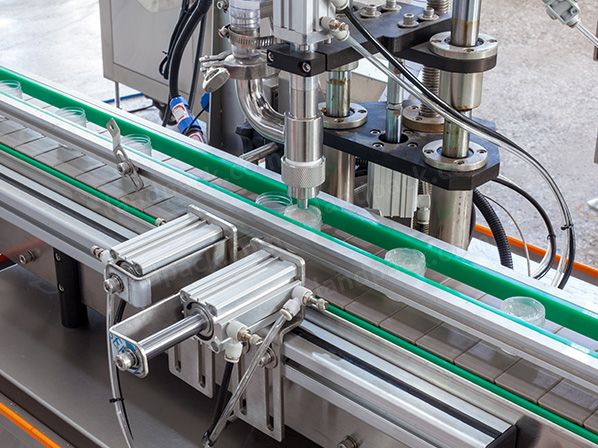

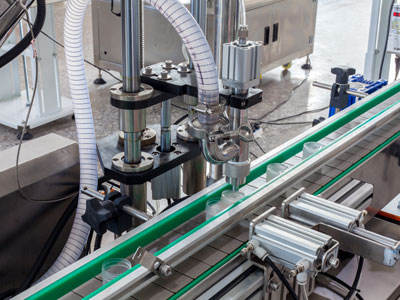

	High-Precision Gear Pump Filling System: This single-head gear pump features accurate and pulse-free filling that makes it an excellent solution for creams and medium-to-high viscosity liquids, providing stable filling volume control over long production runs. Filling volume is easily adjusted while staying consistent.

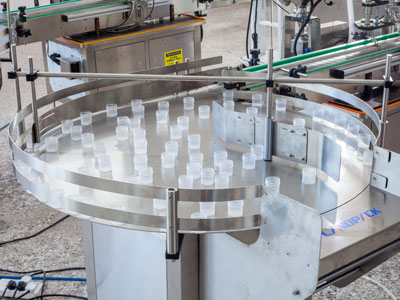

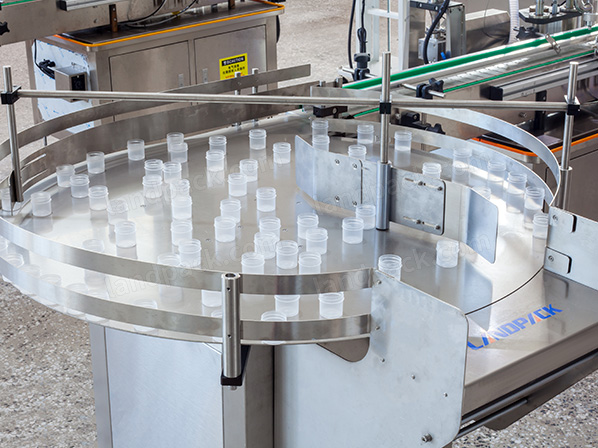

	An integrated Automatic Bottle Handling Line It has been installed with features that an unscrambler to automatically feed bottles in an orderly manner, thus significantly reducing manual labor requirements.

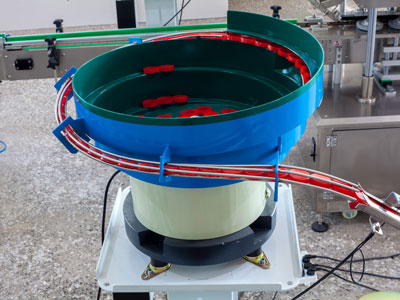

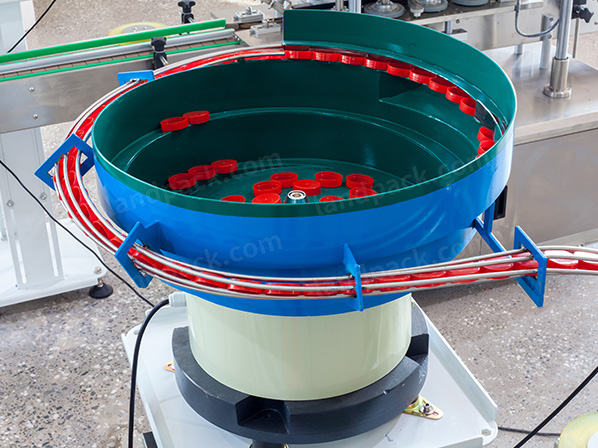

	Vibratory Cap Feeder for Stable Cap Supply This automatic feeder sort and feeds caps directly into capping stations, providing accurate cap orientation and reliable feeding.

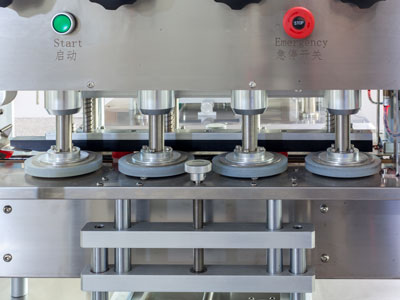

	High-Speed Capping with Strong Torque Control Our servo capping system uses consistent torque control, assuring tight and secure caps without damaging bottles or caps.

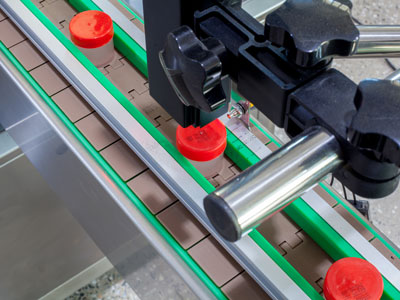

	Traceability Through Inkjet Coding An inkjet printer clearly prints production dates, batch numbers or codes directly onto bottles in line-inkjet technology for traceability purposes.

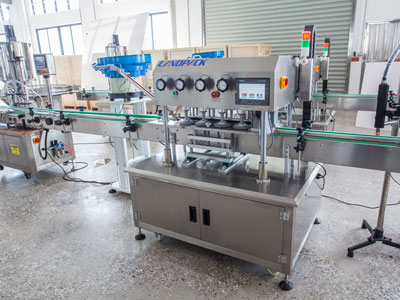

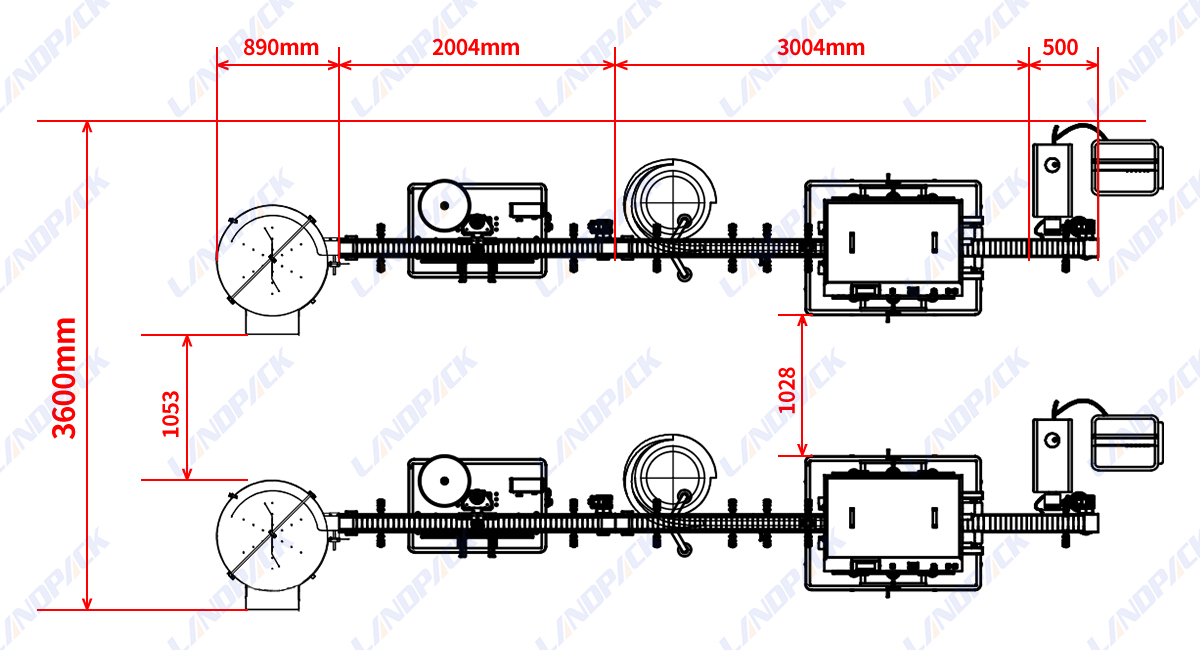

	Compact Line Design with User-Friendly Control This filling line boasts a compact layout, easy installation and user-friendly control features, making it suitable for smaller factories with limited floor space.
