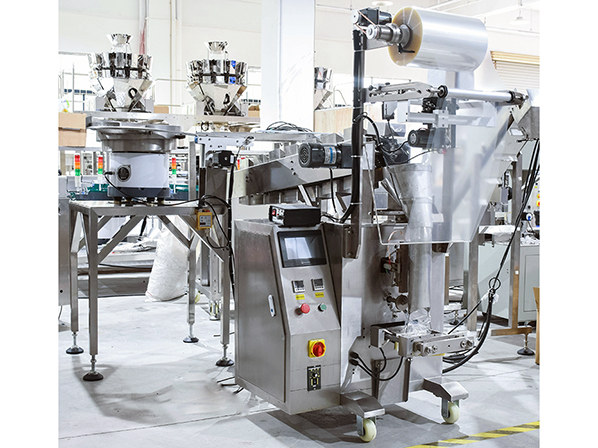

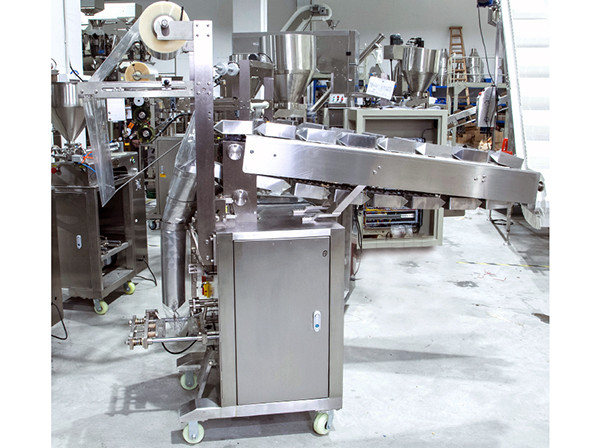

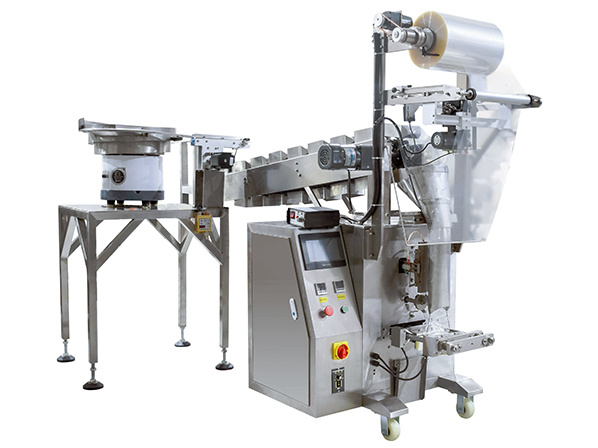

Semi-Automatic Packaging Machine With Chain-Type Batchers LD-320B/ LD-380B

Product Category:Grain Packaging Machine

Product Description:

Why choose us?

1.Imported PLC control system,colorful touch screen,easy operation, intuitionistic efficient.

2.Standard positioning with imported servo film transporting system and mark sensor.

3.With auto warning protection function to minimize loss.
4.Various kinds of bag, it could provide the pillow bag, angle fold bag, hang hole bag,link bag,etc.

Details

Model:LD-320B

Film width:120-320mm

Bag length:50-200mm

Bag width:50-150mm

Diameter of film roll:Max.300mm

Packing speed:35-70bag/min

Measuring range:50-500ml

Film thickness :0.04-0.07mm

Power:220V 50/60Hz 2.2KW

Machine size(L*W*H):970*680*1950mm

Machine weight:About 300kg

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Feature:

Application:

Samples:

Specification:

Option Devices:

Feature:

High precision structure for simple and easy operating and repairing.

Single-chip CPU,step-motor,easy and accurate to set the bag length.

Own simple circuitry and outstanding function.

Be able to complete the whole procedure of filling,bagging,date printing,charging(exhausting) automatically.

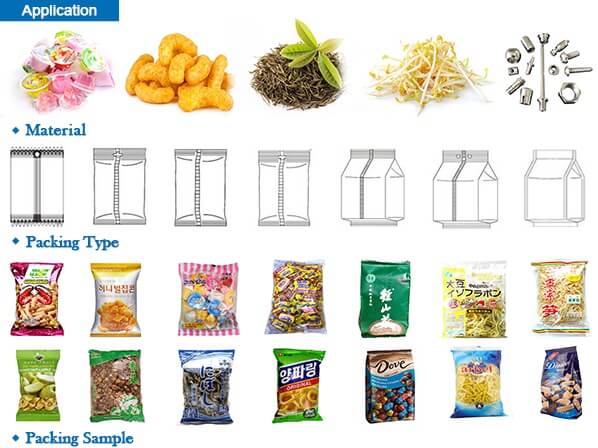

Application:

Suitable for packaging small grains such as leavened food,shrimp bars,candies,Peanuts,popcorns,rice,tea,coffee,beans,seeds,washing powder,desiccant,etc.

Samples:

Specification:

Model	LD-320B	LD-380B
Film width	120-320mm	180-380mm
Bag length	50-200mm	60-280mm
Bag width	50-150mm	60-180mm
Diameter of film roll	Max.300mm	Max.320mm
Packing speed	35-70bag/min
Measuring range	50-500ml	50-750ml
Film thickness	0.04-0.07mm
Power	220V 50/60Hz 2.2KW	220V 50/60Hz 2.5KW
Machine size(LWH)	9706801950mm	11008002150mm
Machine weight	About 300kg	About 450kg

Option Devices:

Take away conveyor

Check weigher

Metal detector
