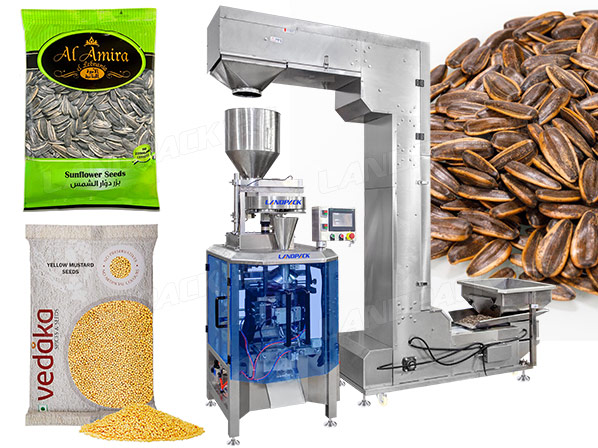

High Speed Seed Packing Machine With Measuring Cups Equipment

Application:

This seed packing machine with measuring cups equipment is suitable for filling all kinds of grain material, sheet material, strip material and abnormity material, such as seeds, melon seeds, sunflower seeds, nuts, candy, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, corn, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Working Process:
Inquiry
Features:

1.PLC system with operation touch screen.

2.High speed machine running by full servo drive, sending the film, volumetric cups filling, forming the bags and sealing is control by dependent servo drive.

3.Especially for the easy filling granular products with small sachets that required the high speed production.
Application:

This seed packing machine with measuring cups equipment is suitable for filling all kinds of grain material, sheet material, strip material and abnormity material, such as seeds, melon seeds, sunflower seeds, nuts, candy, chips, peanuts, nutlets, preserved fruit, jelly, biscuit, confect, camphorball, currant, almond, chocolate, fibert, corn, etc.

It can adopt all type of 3/4 sided seal bag, sachet, back sealing bag, etc.
 seeds packing machine
Videos Introduction:
Specification:
Model LD-320SF
Capacity 20-100 bags/min
Bag size L: 50-170mm, W: 50-150mm
Film width 120mm-320mm
Film thickness 0.05-0.12mm
Control system PLC+Servo Motor+Color Touch Screen; PLC+Servo+Touch screen
Power supply 1N+PE/50HZ/AC220V, 4KW
Airconsumption 0.6-0.8Mpa, 0.3-0.5㎥/h
Dimension L1350*W900*H1400mm
Equipment Material Main body 3mm thickness 304 stainless steel frame
Weight 350kg
Description of Main Packaging Process Pulling film-coding-bag making-measurement-filling (inflating)-sealing (punching)-cutting-packaging finished product output.
Working Process:

1.Auto Feeding The Products To The Machine

2.Rotary Volumetric Cups Filling

3.Running And Forming The Pillow Bag By Servo Drive

4.Heat Sealing And Output
