Fastener Screw Automatic Counting And Packing Machine

Application:

Suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Feature:
Application:
Samples:
Specification:
Optional Accessories:
Inquiry
Feature:

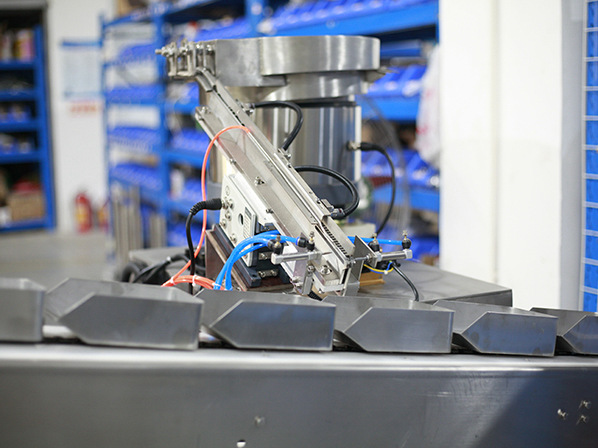

Custom-tailored vibration plates for screw sample, liner vibration arrange device and high precision counting device.

Vibration feeding screw to count, counting accurate.

Step motor control combines with coding tracking system, cutting right.

Single-chip microcomputer control system, self-diagnosis, automatic stop when fault, automatic alarm.

Auto display package quantity, easy operate and safety.

Machine can automatic finish counting, making bag, filling, sealing and cutting.

Photoelectric tracking system, automatic track the mark on the film.
Application:

Suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.
Samples:

Specification:


         Model

                LD-100

          LD-200

          LD-600

Vibration Disk Number

                      1

              2

               6

Packing Speed

 30-70Bags/min

30-70Bags/min

30-70Bags/min

Measure Range

1-X Pieces(Depend on Product)

Bag Sizes

(L)20-120mm; (W)50-85mm

(L)20-120mm; (W)50-85mm

(L)20-120mm;(W)50-85mm

Total Power

1.2KW

2.2KW

2.2KW

Net Weight

150KG

250KG

450KG

Bag Type

Back-Sealing Bag; 3 Sides Sealing Bag

Packing Material

Composite film, aluminum foil or heat shrink material

Dimensions

1270*945*1616mm(L*W*H)

Optional Accessories:


Hot stamp ribbon coder

Product conveyor
