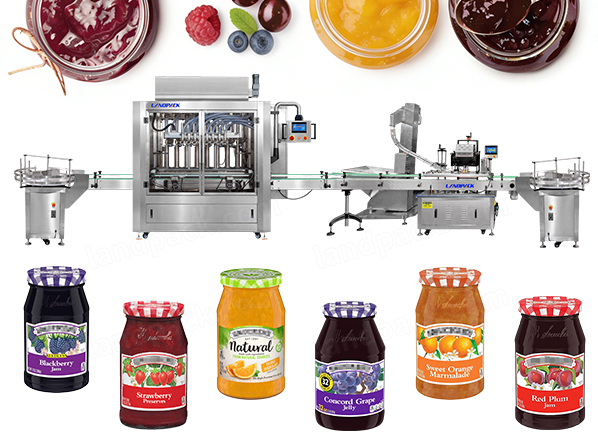

Fully Automatic Linear Plastic Glass Bottle Can Jar Filling Capping Machine Line for Sauce, Paste

Application:

This linear bottle filling machine is designed for linear filling of liquids and viscous products into bottles, jars and containers such as sauce, ketchup, syrup, honey, jam, shampoo, detergent, and cleaning liquids.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

Application:

This linear bottle filling machine is suitable for plastic/glass bottles,tin, can, jars, and other containers, supporting different shapes and sizes, ensuring accurate filling.

Machine Details:

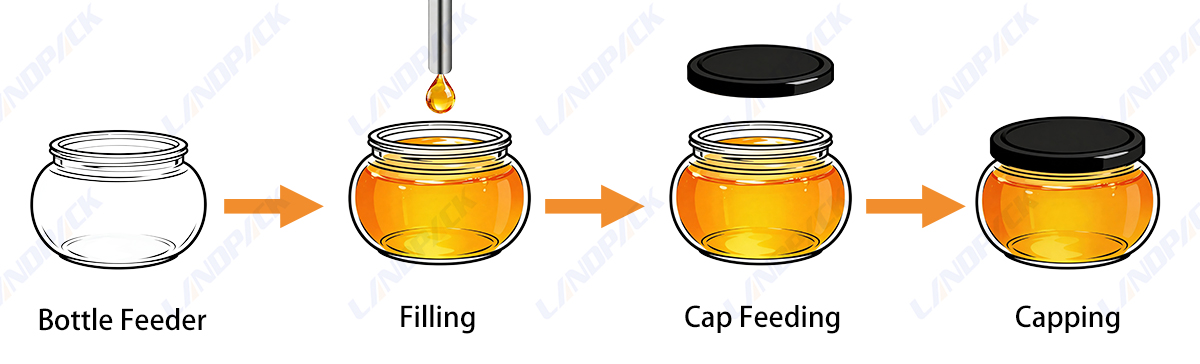

Working Process

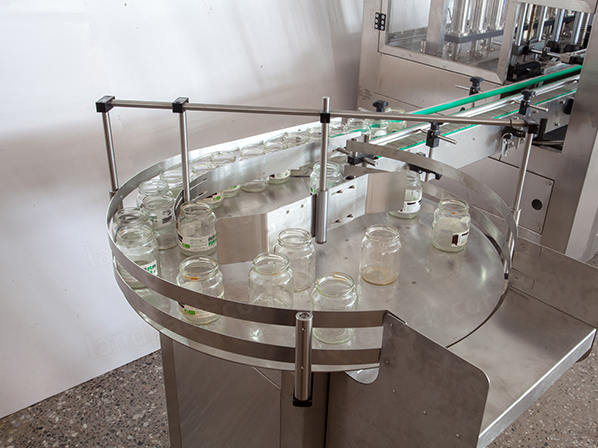

1. Bottle feeding → Bottle positioning → Liquid filling → Capping → Bottle discharge

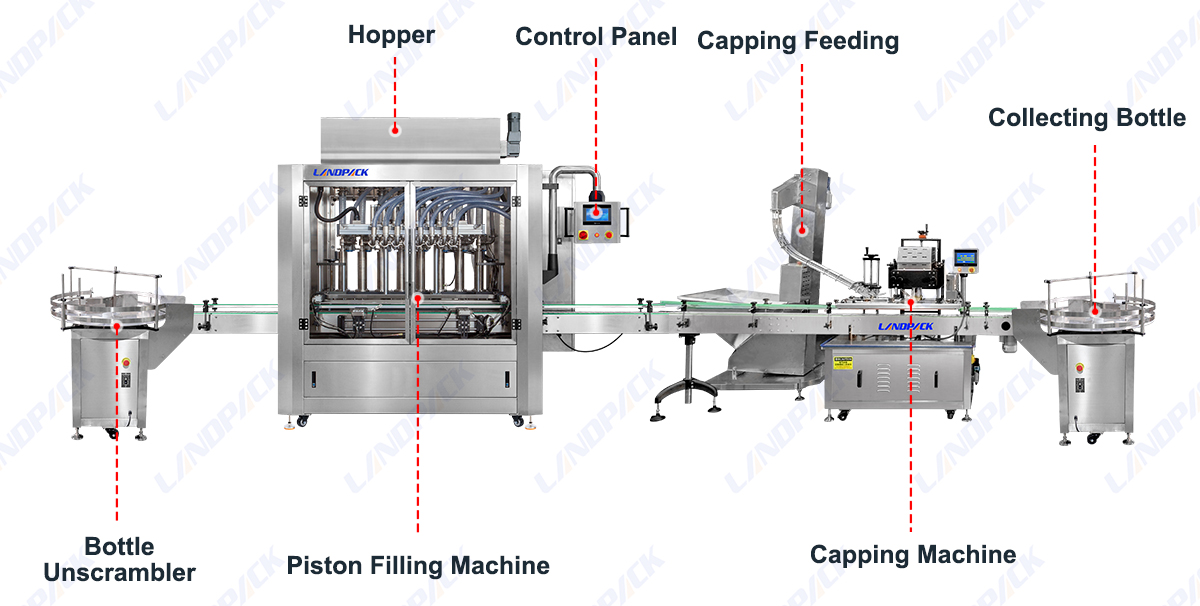

Key Component

★ LANDPACK provides complete custom engineering and OEM services, allowing every packing machine to be tailored to your exact product specifications, factory layout, and packaging requirements.

Specification

Automatic Piston Filling Machine
Model Name	LD-ALF08
Filling Range	50-1000ml (Customizable)
Filling Speed	30-45 bottles/min
Measurement Accuracy	±1%
Power	220V, 50Hz, 1KW
Working Pressure	0.6mpa-0.8mpa
Weight	400kg

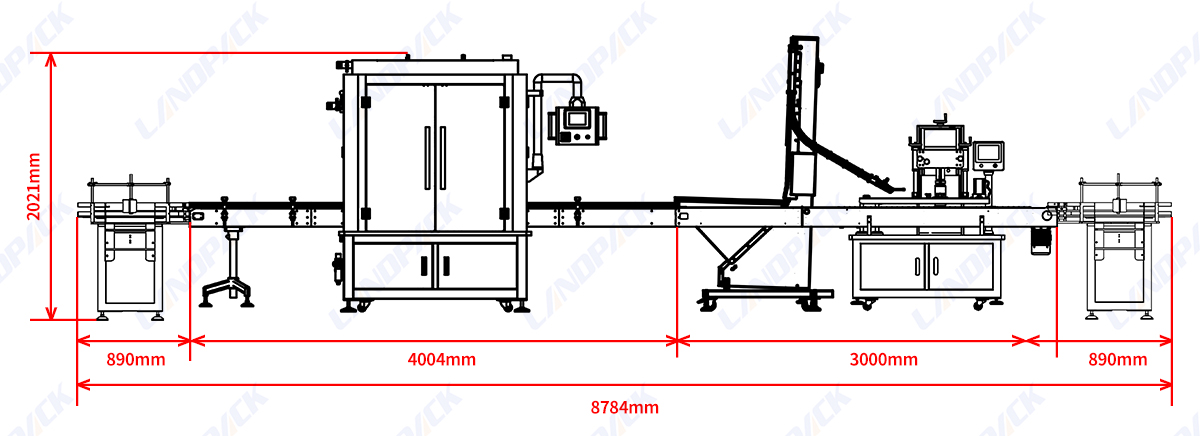

Dimension	L4004W1175.97H2045(mm)

Automatic capping machine
Model	LFX-JX-01(Four wheel capping)	LFX-GS-150(Eight wheel capping)	LFX-GS-250(Six wheel capping)
Capacity	20-50Bottles/min	40-100Bottles/min	30-80Bottles/min
Bottle cap diameter	Φ22mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）	Φ18mm-Φ80mm（Could be customized）
Bottle diameter	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）	Φ35mm-Φ140mm（Could be customized）
Bottle sealing height	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）	38mm-300mm（Could be customized）
Power	1.5KW	2KW	1.5KW
Voltage	220V、50HZ	220V、50HZ	220V、50HZ
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.5-0.7Mpa
weight	250kg	350kg	300kg
Dimensions	H3000W800L1600mm	H3120W1544L2122	H3100W1244L2122

Features:

1. Fully automatic linear filling and capping machine line for continuous production.

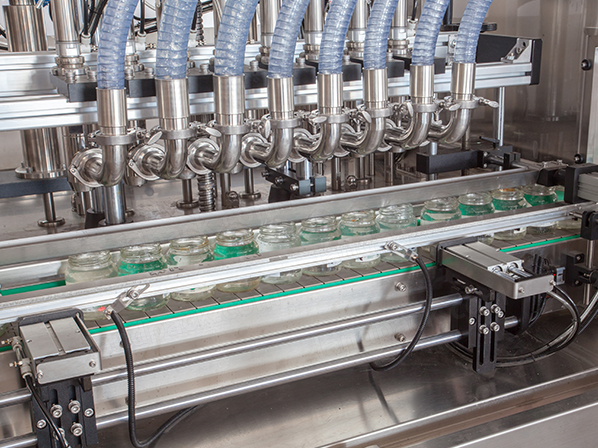

2. 8-head piston filling system ensures high accuracy and stable output.

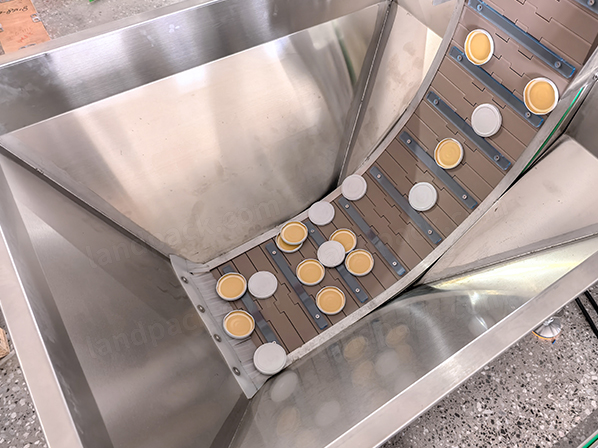

3. Automatic cap feeding and capping system improves efficiency and reduces labor.

4. Suitable for various bottle sizes with quick adjustment and no parts change.

5. PLC and touch screen control for easy and flexible operation.

6. No bottle, no filling, no capping system with stainless steel structure for easy cleaning.
