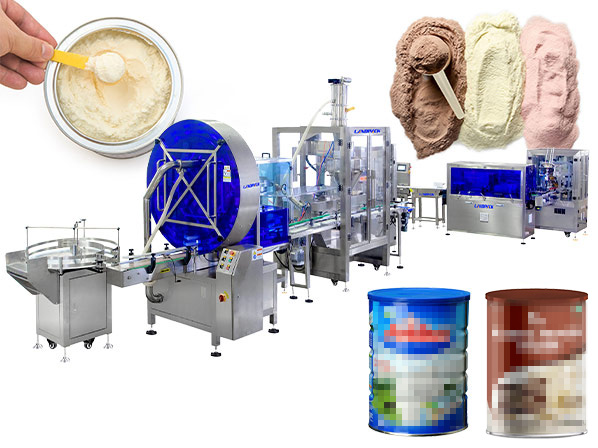

Automatic Powder Filling Packing Line With Laser Printer And Vibration Plate Spoons Feeder

Application:

It is suitable for automatic filling of various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Samples:

Specification:

Optional:

Features:

1.Automatic two-head Auger type metering/filling system works with the automatic capping machine.

2.Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.

3.Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.

4.Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.

5.Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there's no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.

6.10 sets of memory modules for memorizing different kinds of products and filling weights.

7. This line is especially suitable for canned milk powder, protein powder, nutrition powder and so on, equipped with UV sterilization and purging.

8.Drop the spoon automatically.

9.The filling machine adopts the weighing filling measurement, the precision is higher than the screw measurement.

10. Vacuum sealed tank filled with nitrogen to extend the shelf life of products.

Application:

It is suitable for automatic filling of various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.

Samples:

Specification:

Product Name	Automatic Powder Filling Line
Model	LD-PAF01
Filling Range	100-2000g (Customizable)
Filling Speed	10-25 bottle/min
Measurement accuracy	±1%
Power	4.5 KW
Working power supply	220V、50Hz
Working pressure	0.6-0.8MPa
Weight	500kg
Size	L11782W3465.09H2523.52(mm)

Optional:

1.Bottles/ cans unscrambler

2.Capping Machine

3.Labeling Machine

Shrink Wrap Machine
