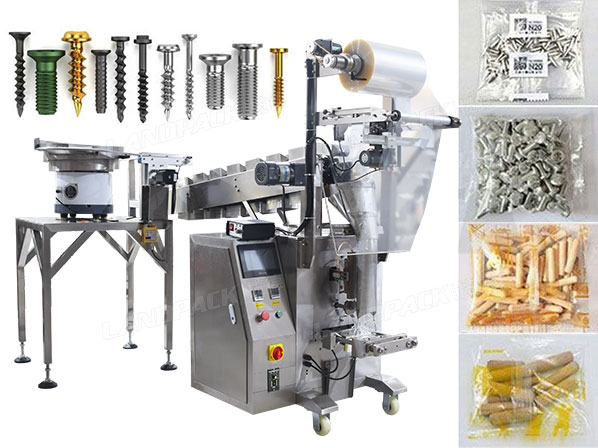

Automatic Screw Hardware Vertical Counting Packing Machine With Counting Bowl

Application:

Suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Benefit:
Inquiry
Features:

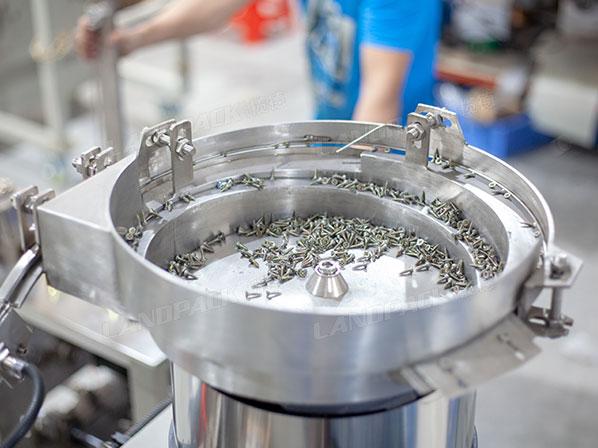

1. Custom-tailored vibration plates for screw sample, liner vibration arrange device and high precision counting device.

2. Vibration feeding screw to count, counting accurate.

3. Step motor control combines with coding tracking system, cutting right.

4. Single-chip microcomputer control system, self-diagnosis, automatic stop when fault, automatic alarm.

5. Auto display package quantity, easy operate and safety.

6. Machine can automatic finish counting, making bag, filling, sealing and cutting.
Application:

Suitable for automatic counting and packing machine for screws, nail, bolt, nut, gasket, bearings, glass parts, plastic parts, furniture accessories, toy accessories, blind nut, gasket, hardware and plastic parts' etc.
Videos Introduction:
Specification:
Technical Parameters
Model LD-320AH-1 LD-320AH-2 LD-320AH-6
Vibration Disk Number 1 2 6
Packing Speed 30-70Bags/min 30-70Bags/min 30-70Bags/min
Measure Range 1-X Pieces(Depend on Product)
Bag Sizes (L)20-120mm; (W)50-85mm (L)20-120mm; (W)50-85mm (L)20-120mm;(W)50-85mm
Total Power 1.2KW 2.2KW 2.2KW
Net Weight 150KG 250KG 450KG
Bag Type Back-Sealing Bag; 3 Sides Sealing Bag
Packing Material Composite film, aluminum foil or heat shrink material
Dimensions 1270*945*1616mm(L*W*H)
Benefit:
Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item Artificial Weighing + Packing After Using The Packaging System
Average Weight Deviation Of A Single Bag ≤5g ≤2g (Saved 3 grams)
Need Labor 10 people 3 people(Saved 7 Labor)
Hygiene Situation ⭐⭐ ⭐⭐⭐⭐⭐
Energy Consumption ⭐⭐ ⭐⭐⭐
Product Waste ⭐⭐⭐⭐⭐ ⭐⭐
Production Management Not easy to manage Digital management
Production Layout Labor-intensive and complex production environment. Mechanical automation, simple and beautiful production environment.
