You are here: Home > Product > Fastener Packaging Machine > Screw Packing Machine

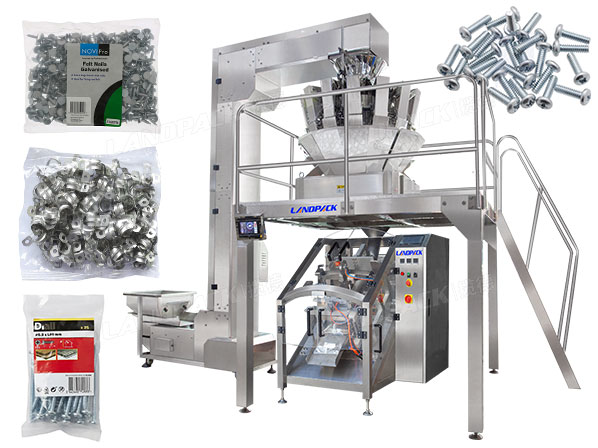

Automatic Inclined Type Vertical Screw Weighing And Packing Machine With Z Type Conveyor

Application:

This inclined packaging machine is adopted to reduce the impact force of materials falling with gravity during the packaging process. It is suitable for all kinds of heavier metal products such as screw, nail, fastener and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Benefit:

Features:

1. Stainless steel frame.

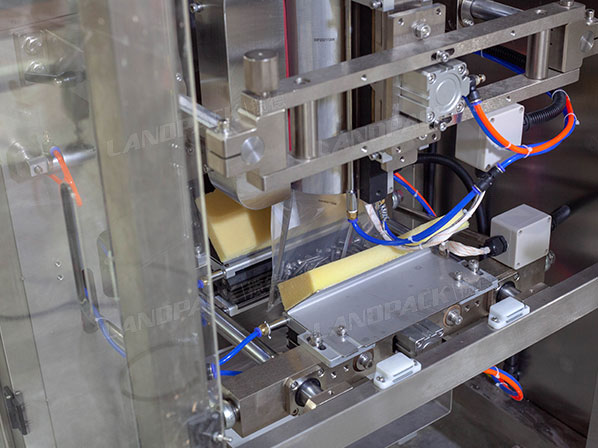

2. Servo driven film pulling system.

3. Photo sensor for automatic tracking eye marks.

4. Hot printer and film feeding system synchronous working together.

Application:

This inclined packaging machine is adopted to reduce the impact force of materials falling with gravity during the packaging process. It is suitable for all kinds of heavier metal products such as screw, nail, fastener and so on.

Videos Introduction:

Specification:

Model	LD-I420H
Frame structure	Stainless steel
Film width	Max.500mm
Bag width	80-240mm
Bag length	50-300mm
Packing speed	Max. 80 bpm
Power supply	220V, 50HZ, 4Kw
Air requests	0.3m3/min, 0.6Mpa
Film roll diameter	Reel outer Φ16 In. max. ; Reel core Φ3.0 In.
Film thickness	0.04~0.12mm
Install Power	AC Single phase, 50Hz, 220V (48V is available on optional)
Total Power	4.0KW
Air Consumption	2CFM @6 bar
Dimensions	165x11600x1500mm
Weight	Approx. 680 kg

Benefit:

Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item	Artificial Weighing + Packing	After Using The Packaging System
Average Weight Deviation Of A Single Bag	≤5g	≤2g (Saved 3 grams)
Need Labor	10 people	3 people（Saved 7 Labor）
Hygiene Situation	⭐⭐	⭐⭐⭐⭐⭐
Energy Consumption	⭐⭐	⭐⭐⭐
Product Waste	⭐⭐⭐⭐⭐	⭐⭐
Production Management	Not easy to manage	Digital management
Production Layout	Labor-intensive and complex production environment.	Mechanical automation, simple and beautiful production environment.
