Automatic Hardware Fittings Screw Nut And Bolt Counting Packing Machine

Application:

Automatic ordering, counting, packing and printing etc. Easily adjust the quantity of materials in the bag, set the quantity of bags what you need, when meet, the machine will be stop automatically. Applications and is used in boxing and packaging of fast

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

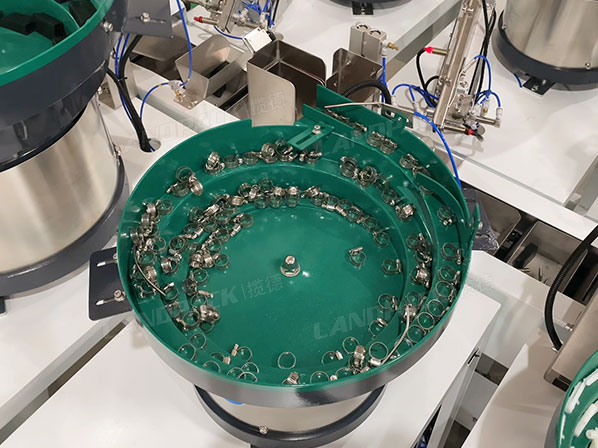

1.Tailored to the screw samples of the vibration plate, linear vibration arrangement, and sophisticated counting control device to ensure that each bag is accurate.

2.Packaging icon packaging materials, the machine advanced step control, with the use of color tracker can get the perfect icon design.

3.SCM control system, fault self-stop, self-alarm, self-diagnosis, safe and easy to use.

4.Automatic display of the number of packages, the statistics can easily work out the machine.

Application:

Our packing machine widely use in:

Furniture parts (Fittings, Fastener, Hinge, Lock, etc.)

Electronic machinery and appliance spare parts (Mobile Phone Screw, Cable Clip, etc.)

Fastener (Screw, Bolt, Nut, Washer, Nail, Small Hardware, O-Rings, etc.)

Plastic, pipe fittings (Pipe, Joint etc.)

Clothes parts (Button, Slider etc.)

Toys (Toy Building Brick, Dice etc.)

Stationery (Mark, Pen, Clip etc.)

Other regular shape parts

And other solid material counting/ weighing and packing.

It can pack the same items or mixed items in the packs by quantity.

Videos Introduction:

Specification:

Type:	LD-320H-6	Packing speed:	30-60bags/min
Measuring range:	0-100000 pcs	Bag length:	L:40-160mm
Bag Width:	30-150mm	Max film width:	320mm
Sealing type:	3 sides,4 sides or back sealing	Packing film	All heating material (paper/PE,PET/AC/PE,etc)
Power:	2500W	Net weight:	800KG
Voltage:	220V 380V/50HZ 60HZ	Overall size:	L1000W700H1600mm

Benefit::

Economic Benefit
Case 1: Economic Benefits Brought By The Screw Packaging System
Take the "landpack" screw packaging system used by a certain manufacturer as an example. The factory originally used manual weighing and packaging, but after it was put into the screw packaging system, there were the following obvious changes.
Comparison Item	Artificial Weighing + Packing	After Using The Packaging System
Average Weight Deviation Of A Single Bag	≤5g	≤2g (Saved 3 grams)
Need Labor	10 people	3 people（Saved 7 Labor）
Hygiene Situation	⭐⭐	⭐⭐⭐⭐⭐
Energy Consumption	⭐⭐	⭐⭐⭐
Product Waste	⭐⭐⭐⭐⭐	⭐⭐
Production Management	Not easy to manage	Digital management
Production Layout	Labor-intensive and complex production environment.	Mechanical automation, simple and beautiful production environment.
