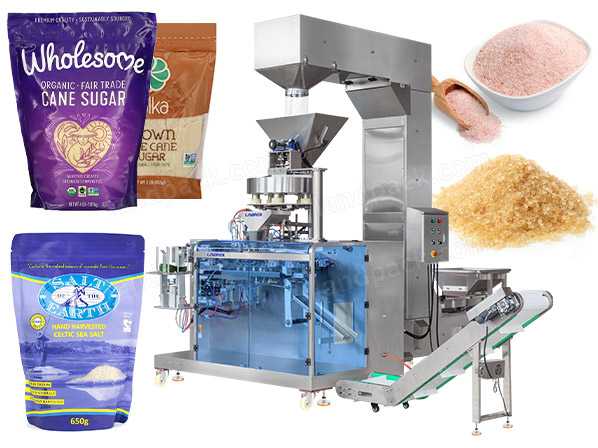

Automatic Salt Doypack Packing Machine

Application:

Tailored for packaging granular and free-flowing products such as salt, sugar, rice, nuts, grains, and similar fine particles into premade doypacks (including stand‑up pouches, zipper bags, three‑side or four‑side seal formats). Commonly used in food production lines where precise metering and consistent sealing are essential..

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Features:

1. Rotor Volumetric Cup Metering: Uses rotating cups for highly accurate portion control—reliable, cost-effective for granular products like salt and sugar .

2. PLC + Touch-Screen Interface: Advanced PLC with intuitive touch-screen operation delivers stable performance, easy adjustments, and fast troubleshooting.

3.Full Automated Workflow: Z‑type elevator for automatic product feeding; Vertical bag pick-up, ribbon coding, zipper opening; Dual sealing operation ensuring airtight packaging; Finished product discharge conveyor

4. Two-Stage Sealing for Enhanced Integrity: Ensures airtight, secure sealing with double pass heat seal process—ideal for moisture-sensitive goods.

5. Material-Grade Construction: Machine body: 304 stainless steel in product areas; carbon steel with anti-corrosion finish on frame—GMP-compliant, food-grade quality.

6. Automatic Error Detection & Save Function: Features sensors to detect absent or improperly opened pouches, no-fill or no-seal events—halts operation to prevent waste and reuses pouches.

7. Modular & Customizable Design: Compatible with extra functions like date/ribbon coding, gas flush, RFID, perforation, punch holes, or handles through add‑on modules.

Application:

Tailored for packaging granular and free-flowing products such as salt, sugar, rice, nuts, grains, and similar fine particles into premade doypacks (including stand‑up pouches, zipper bags, three‑side or four‑side seal formats). Commonly used in food production lines where precise metering and consistent sealing are essential.

It can adopt all type of doypack, stand up pouch, spout bag, zipper pouch, m shape pouch, flat pouch, gusset pouch, premade pouch etc.

Videos Introduction:

Specification:

Type	LDSP-160	LDSP-160Y	LDSP-210	LDSP-260
Bag Type	3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc.
Bag Size	110-230mm80-160mm(LW)	70-100mm110-230(LW)	100-210mm/110-320mm（L*W）	100-260mm/110-320mm（L*W）
Filling Range	10g-100g	10g-100g	10g-1kg	10g-3kg
Packing Speed	20-45bags/min(speed is determined by the product filling quantity)	25-50bags/min(speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)	20-50bags/min (speed is determined by the product filling quantity)
Machine weight	800KG	800KG	900KG	1000KG
Total Power	2.0KW	2.0KW	2.0KW	2.0KW
Work Flow	1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product
Dimensions	1750mm X 1285mm X 1360mm(LWH)		2140mm X 1366mm X 1360mm(LWH)	2140mm X 1366mm X 1360mm(LWH)
Collocation	Screw metering,screw elevator

Optional:

1.Automatic Z‑type Feed: Elevates raw product to metering system.

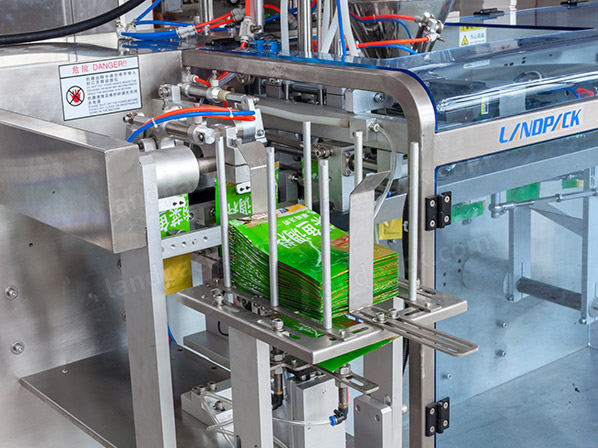

2.Bag Feeding: Premade pouch is picked and positioned.

3.Ribbon Code: Thermal ribbon printer applies batch/date codes.

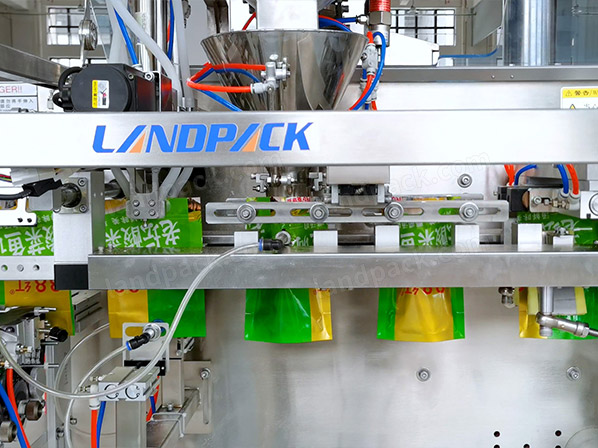

4.Zipper / Bag Opening: Zipper automatically unsealed and bag opened.

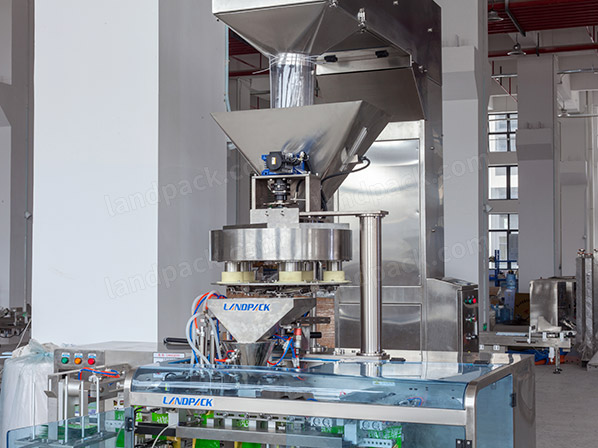

5.Metering & Filling: Rotary volumetric cups deliver precise amount into bag.

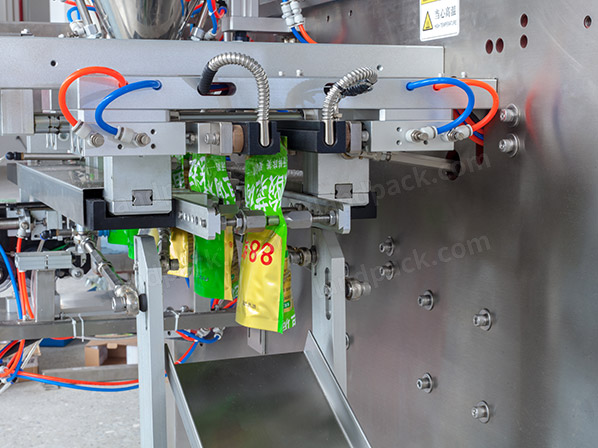

6.Dual Sealing: Two-stage sealing unit provides robust closure.

7.Finished Product Conveyor: Sealed pouch is transported for packaging or boxing.
