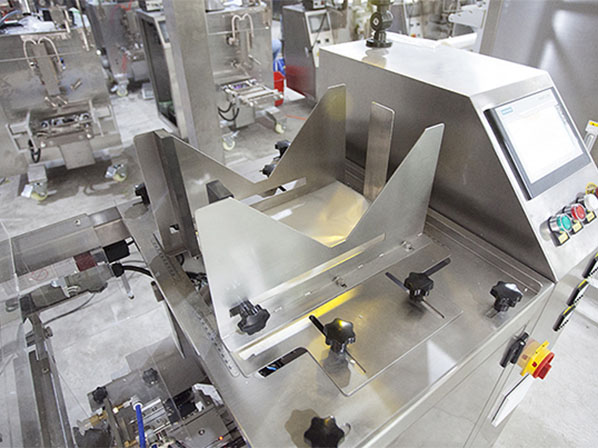

Mini Doypack Packaging Machine with Multihead Weigher

Application:

It is suitable for various granlue material in premade pouch style, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.

Details:


Brand:Landpack
Model:LD-300A/LD--430A
Bag size: W:80-300mm, L:100-400mm
Speed: 1-15bags/min
Bag type: 3 side seal bag, stand-up bag
Tel/Whtasapp: +86 17388602385
Features:
Sample video:
Samples:
Specification:
Main Process:
Inquiry
Features:

Basic Functions:

Languages: Chinese, English, Spanish, Dutch, Italian, Korean (At most three languages);

PLC: Japan Panasonic;

Cylinder: Taiwai Airtac (Can be upgraded to Japan SMC);

Vacuum Generator: China Airbest (Can be upgraded to Vacuum Pump);

Vacuum Component: Japan SMC;

Modular Control System For Vacuum Pressure: Japan SMC;

Modular Control System For Temperature: China YUDIAN;

Safety Key Interlock Switch;

The main structure of the machine is SUS304 (The thickness of the rack is 3.0mm), and the material of the part is aluminum;

The part (Hopper) in contact with the material is SUS304 (Can be upgraded to SUS316L).

Basic Functions:

The machine stops running when the safety key interlock switch is pulled out;

No bag prompting function;

Self-diagnosis function of open the bag failed (The bag can be reused); In that case, the machine will not fill and seal, it will re-take the bag;

Positioning (anti-dropping) function of hopper;

Warning function of cartridge heater fault ;

Warning function of cylinder fault.

Performance Features:

Easy to operate and easy to replace the bag / The machine is suitable for a variety of bag types;

Low maintenance cost / Modular replacement of the parts;

Certificate of Conformity.
Sample video:


Samples:

Specification:

Model: LD-300A/LD--430A

Bag Material: Multilayer Composite Premade Bag(e.g.: PET/PE)

Bag Type: 3 Side Seal Bag, Stand-up Bag

Upgradable Bag Type: Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device)

Size Range: 80mm≤W≤300mm 100mm≤L≤400mm

Speed: 0~15bags/min

Sealing Type: Straight grain, pitch is 1mm (Optional reticulate)

Sealing Width: 10mm (5--20mm can be customized)

Voltage: 220V, Single-phase, 50/60HZ, 1.2KW

Air Pressure: 0.65Mpa

Air Consumption: 0.3m³/min (Standard machine, no additional function)

Body Dimension: 1770*600*1260mm

Packing Dimension: 1860*710*1650mm (Export non-fumigation wooden case)
Main Process:

1.Bag opening;2.Transition chute;3.Filling;4.Sealing;5.Machine control;
