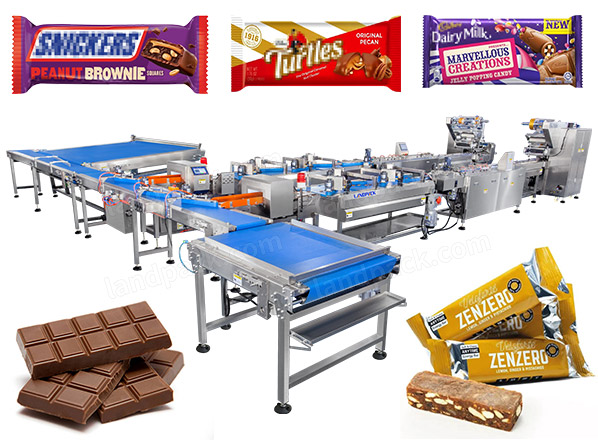

Fully Automatic Chocolate Bar Feeding Packing Line

Application:

This packing line could be automatic feeding, alignment, transport, and packaging system for many kinds of products. Such as chocolate bar, instant noodles, cakes, cookies, biscuit, breads, bun,candy.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.;

Video:

This video shows that this feeding packing line is perfect for medium-scale production, offering neat sorting,
accurate feeding, and high performance with minimal factory space.

This video specifically shows high-output 1-to-3 chocolate feeding packing line is applied for large-scale operations.
Delivers faster than 1-to 2 packing line, flexible distribution, and seamless connection with multiple flow pack machines.

Bag & Pouch Type:

Our packaging lines can be suitable for pillow bags, three-side seal bags, four-side seal bags, and chain bag packaging, which perfectly match the requirements of the snack food industry.Need more packing line for your product,please click here!

Machine Details:

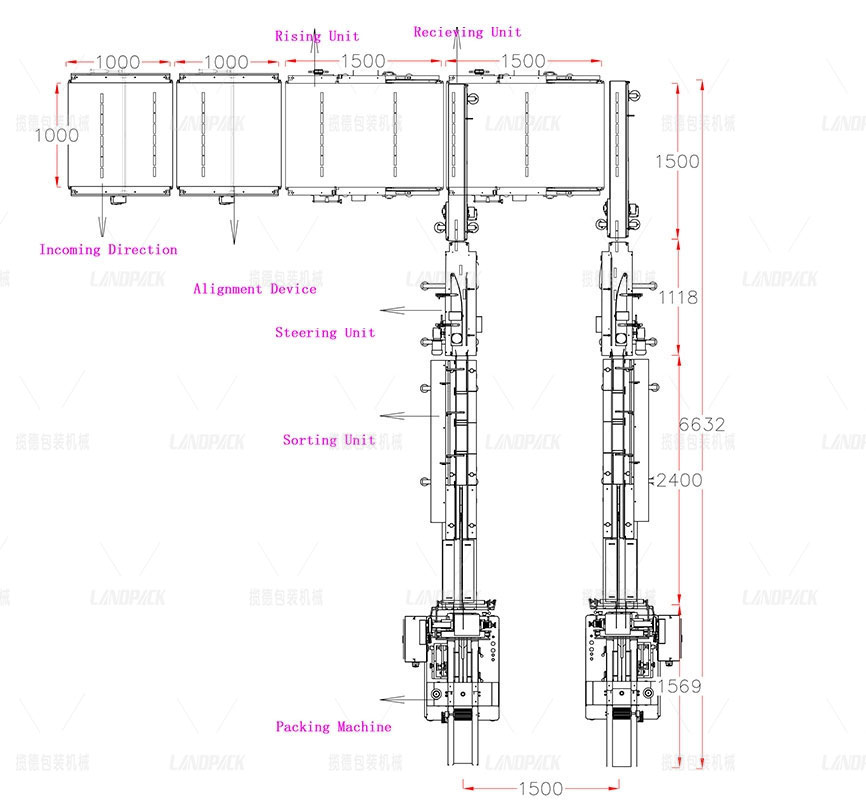

Working Process

1. Automatic Feeding

2. Intelligent Sorting

3. Streamlined Dividing

4. Metal Detection

5. Perfect Alignment

6. Bag Forming & Filling

7. Tight Sealing

8. Finished Product Output

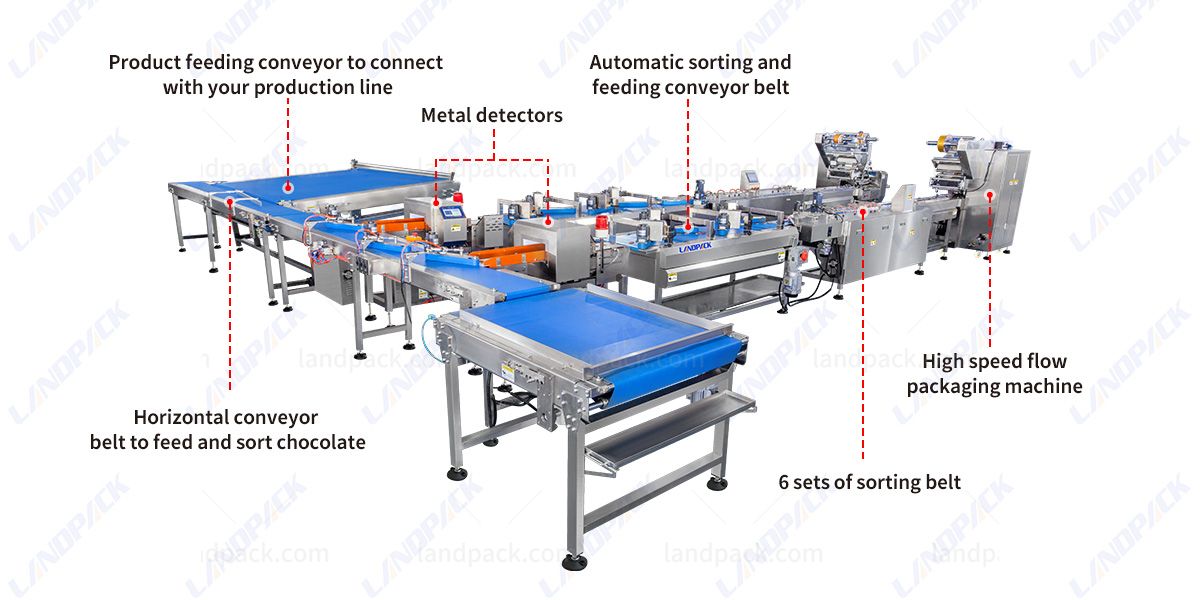

Key Component

Specification

Part One
Product Name	Fully Automatic Chocolate Bar Biscuit Cookie Feeding Packing Line Packaging System
Product Size	9000×950×1500mm（Customized）
Packing Capacity	50-200 bags/min(per single lane)
Master Conveyor Belt Width	600/800/1000/1200mm
Net Weight	Customized
Power Supply	1ph-220V-50Hz or 3 ph-380V-50Hz
Total Power	Customized

Part Two
Model	LP-250	LP-350	LP-450	LP-600	LP-700	LP-800	LP-900
Film width	Max250mm	Max350mm	Max450mm	Max600mm	Max700mm	Max.800 mm	Max.900mm
Bag length	65-190mm or120-280mm	65-190mm or120-280mm	150-450mm	160-500mm	180-600 mm	210-650mm	240-700mm
Bag width	30-110mm	50-160mm	50-180mm	100-280mm	100-330 mm	120-350mm	150-400mm
Product height	Max.40mm	Max.40mm	Max.75mm	Max.110mm	Max.110 mm	Max.130 mm	Max.150mm
Film roll diameter	Max.320mm
Packaging rate	40-230 bags/min	40-180bags/min	30-150Bags/min	20-150 bags/min	20-130 bags/min	20-120bag/min	20-100 bags/min
Power	220V,50/60Hz,2.4kw	220V,50/60Hz,2.6kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,2.8kw	220V,50/60Hz,4.5kw	220V,50/60Hz,4.5kw
Machine size	（L）3770（W）720（H）1420mm	（L）4030（W）770（H）1420mm	(L)4030(W)820(H)1420mm	(L)4030(W)970(H)1500mm	(L)4030(W)980(L)1500mm	(L)4100(W)1170(H)1550mm	(L)4300(W)1270(H)1550mm
Machine quality	About 500kg	About 580kg	About650kg	About680kg	About720kg	About800kg	About 850kg
Remarks	optional air filling device）/optional angle folding）
Film material）	OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film

Features:

Machine Image	Benefits

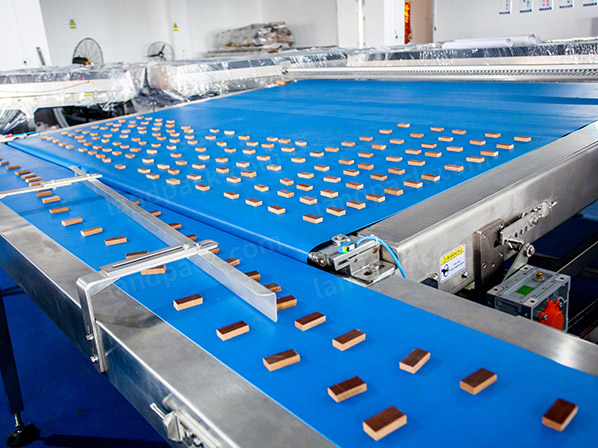

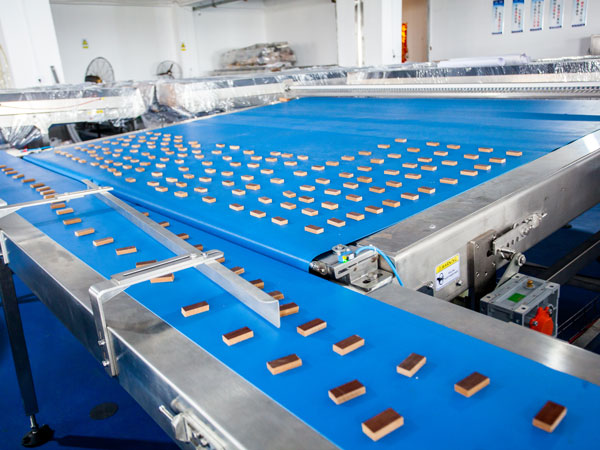

	Feeding conveyor transfers the finished chocolates from the prduction system into sorting system

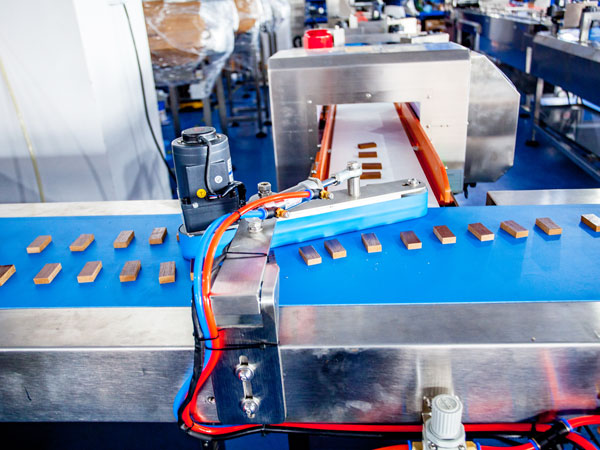

	Dividing device: fully automatic distributes chocolates into two lanes for packaging, suitable for customers who have high requirements for speed

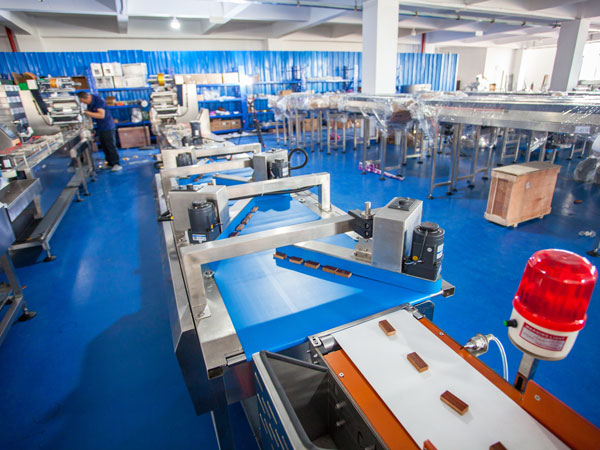

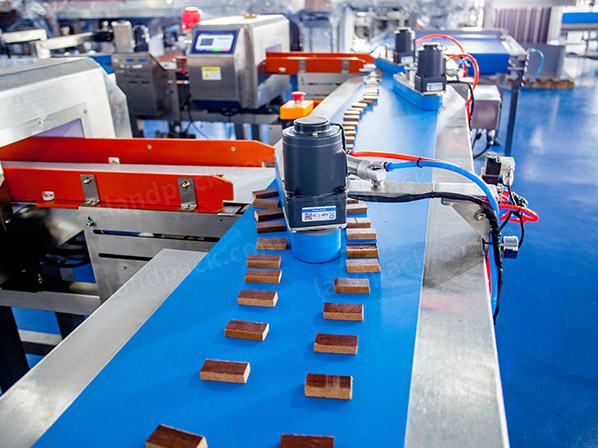

	Aligning Conveyor: The chocolates are neatly arranged in rows with a constant distance between them, which facilitates the subsequent correct packaging.

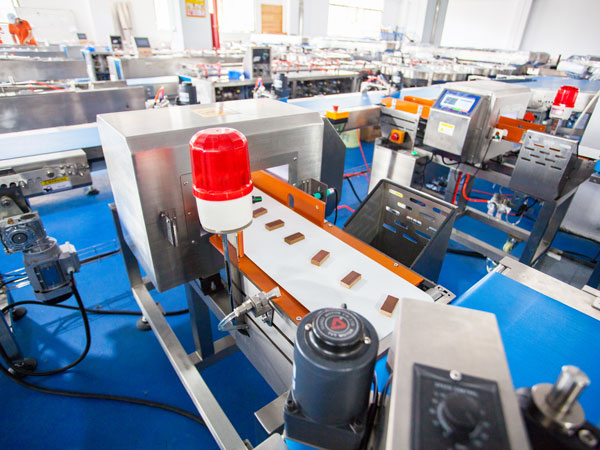

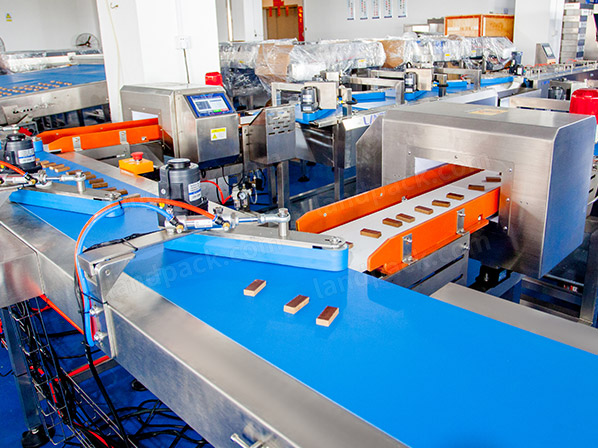

	Inspection system: Check whether the chocolate is damaged or not during production or transportation to ensure product quality
	Control system: Equipped with PLC control panel for easy operation, One-click control of sorting system and packaging systems suitable for Large-scale production.
