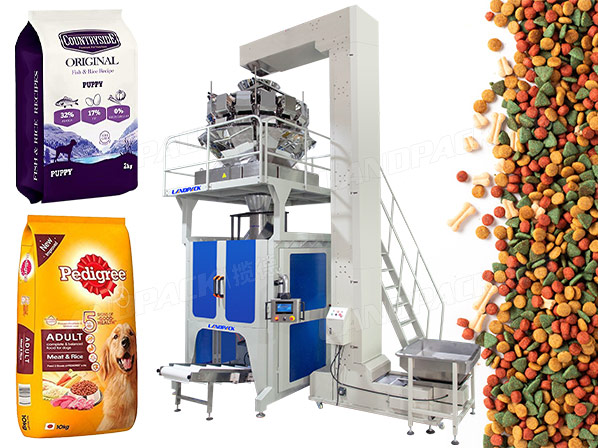

Automatic Big Capacity Pet Food Vertical Packaging Machine With Z Type Conveyor

Application:

Dry & processed food, fresh food, such as: pet food,snack food, seeds (pulses), nuts, coffee (granules/beans), tea, sugar, salt, grated cheese, bakery products, candies & confectionery, rice, dried fruits, spices, pasta,frozen food, Chinese herbal pieces, etc. Nonfood such as: nuts, bolts, washers, auto parts, electrical accessories, hardware accessories, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

E-mail: info@landpacking.com

Tel/Whtasapp: +86 18688215960

Chat Now Send Email View video

Features:

Application:

Videos Introduction:

Specification:

Combined Parts:

Features:

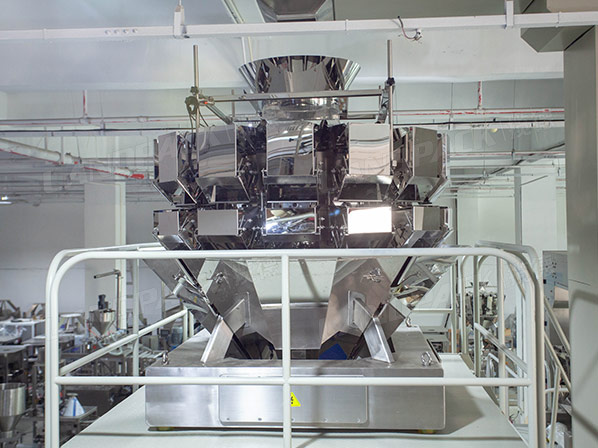

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7-inch touch screen, easy operation, and multiple languages for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage of ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system makes film running more smooth.

Application:

Apply for weighing packaging of 5-15 kg granular products, such as dog food, cat litter, cat food, fish food, and other granular pet food packaging.

Videos Introduction:

Specification:

Model	LD-420	LD-520	LD-720	LD-900	LD-1050	LD-1200
Film Thickness	0.04-0.08mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm	0.04-0.12mm
Bag Length	80-300mm	80-350mm	100-500mm	100-600mm	100-800mm	100-1000mm
Bag Width	60-200mm	100-250mm	180-350mm	260-430mm	290-505mm	290-580mm
Film Roll Diameter	Max.320mm	Max.320mm	Max.320mm	400mm	400mm	400mm
Pakaging Rate	5-60bag/min	5-60bag/min	5-55bag/min	5-20bag/min	5-20bag/min	5-20bag/min
Film Width	Max.420mm	Max.520mm	150-Max.720mm	Max.900mm	Max.900mm	Max.1200mm
Measurement Range	150-1500ml	5-2000ml	4000ml	1-25L	1-25L	1.5L-45L

Combined Parts:

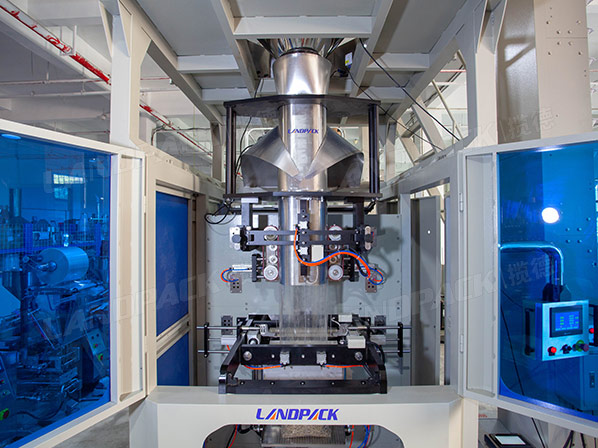

1.LD series main frame

2.Screw metering machine

3.Screw infeed conveyor

4.Product conveyor
