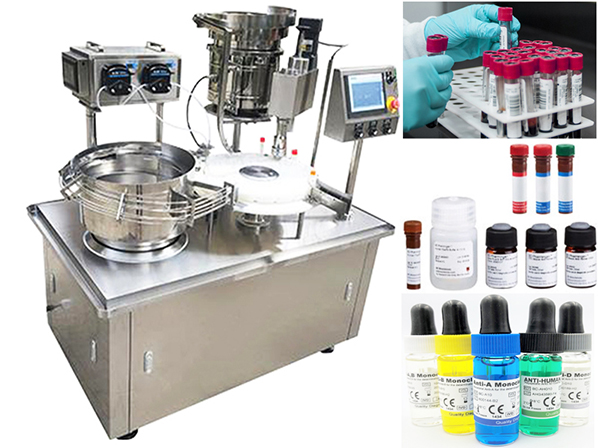

Fully automatic Nucleic Acid Detection Reagent Tube Quantitative Filling Capping Machine

Application:


Mainly used for tube and bottle packaging of liquids and pastes. For example, reagents, plastic test tubes, eye drops, e-liquids, essential oils and other small bottled products. Combination with other devices can achieve production line operation.


Details:

Model:LD-LWT003
Power: 1.8kw
Power supply: 220V/50Hz
Loading range: 1-10ml
Production capacity: 30-60BPM
Machine net weight: 450kg
Dimensions: 1200*1050*1600mm
Tel/Whtasapp: +86 18688215960
Features:
Application:
Samples:
Specification:
WorkProcess:
Inquiry
Features:

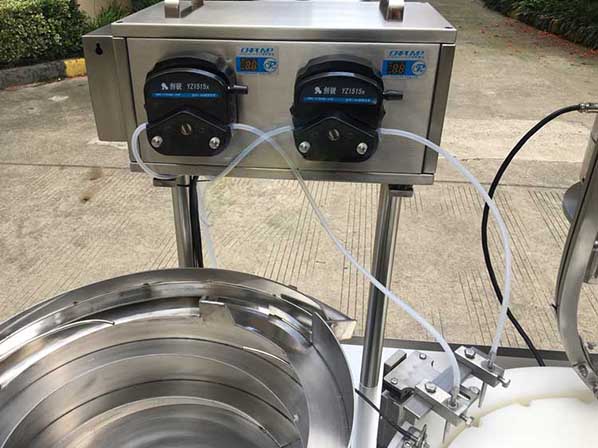

The high-precision peristaltic pump is used to perform the filling process with high precision and no cross-contamination of materials; the structure of the pump adopts a quick-connect disassembly mechanism, which is convenient for cleaning and disinfection.

Mitsubishi PLC control system, color touch screen display.

The machine has the functions of no filling without bottle and automatic counting.

The filling needle is equipped with an anti-drip device.

When filling, the filling head dives into the bottom of the bottle and rises slowly, which can effectively prevent air bubbles.

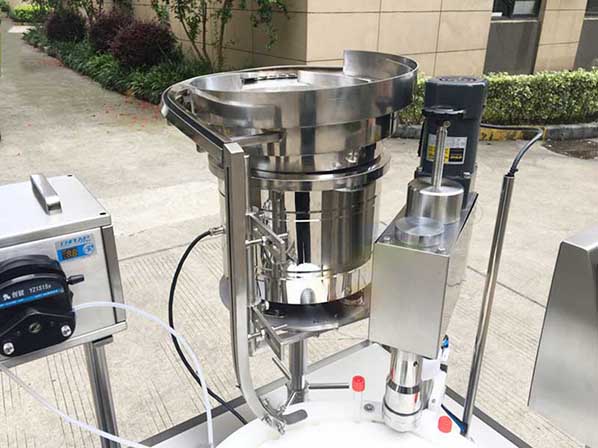

Using magnetic torque capping head, capping torque is steplessly adjustable, with constant torque capping function, correcting tilted caps, not damaging caps, and sealing tightly and reliably.

The material contact part is made of SUS316L stainless steel, and the appearance of the whole machine is SUS 304 stainless steel, which fully meets GMP requirements.

This machine can be equipped with a dust cover and a laminar flow cover (FFU) structure, which can complete filling and capping in a local 100-level environment.



Application:

Mainly used in tube and bottle packaging of liquids and pastes. For example, culture media for agricultural research and development, chemical reagents for chemical research, biological experimental amino acid reagents, hospital enzyme reagents, diagnostic reagents, protein reagents for health products, biological antibiotic reagents, hormones for scientific research institutions, nucleic acid reagents, carbohydrate reagents for pharmaceutical companies, and others Tubular liquid products can be aseptically filled with this fully automatic reagent filling and capping machine.
Samples:


Specification:

Loading range:

1-10ml

Applicable specifications reagent bottle:

filling error ≤±1%

Number of filling heads:

double heads

Number of capping heads:

single head

Qualified rate of spinning (rolling) cap:

≥99%

Production capacity:

30-60BPM

Filling method:

peristaltic pump flow type filling

Power supply:

220V/50Hz

Power:

1.8kw

Machine net weight:

450kg

Dimensions:

1200*1050*1600mm


WorkProcess:

1. This machine is an IVD, POCT and other diagnostic reagent filling and capping integrated machine independently developed by our company on the basis of imported technology.

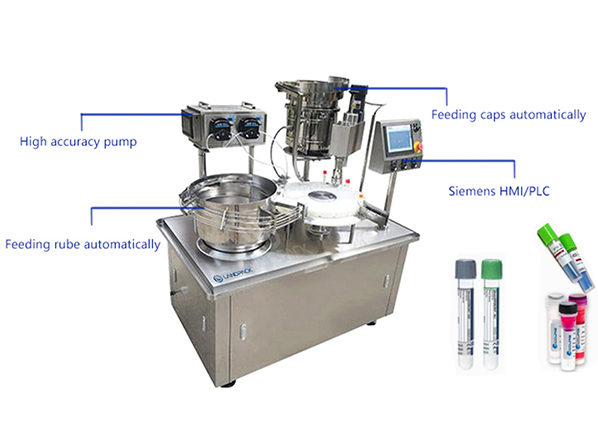

2.It can complete automatic bottle unscramble, automatic bottle loading, quantitative filling, automatic cap unscramble, cap capping and cap screwing and sealing at the same time.

3.This machine adopts high-precision closed cam indexing station with high precision, reliable operation and long service life.

4.The indexer has a simple structure and does not require maintenance for long-term use. This type of equipment is mainly used for ID, POCT and other in vitro diagnostic reagents in the pharmaceutical, biopharmaceutical industry and scientific research fields.

5.The machine has compact and reasonable design, simple and beautiful appearance, and convenient adjustment of filling volume.
