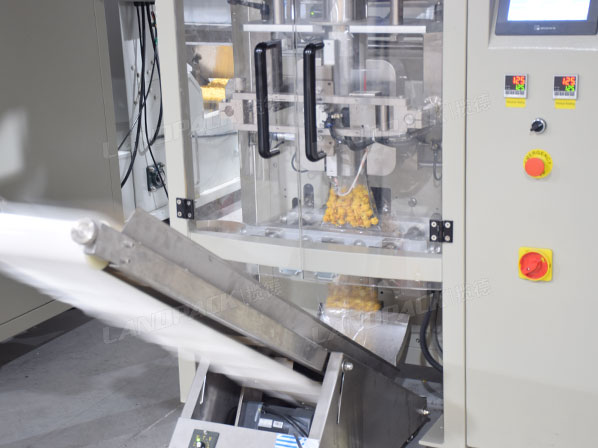

High Efficiency Popcorn Snack Vertical Packing Packaging Machine With Nitrogen Device

Application:

High Efficiency Popcorn Snack Vertical Packing Packaging Machine With Nitrogen Device is used for packaging granular, short, and powdery materials such as puffed food, shrimp strips, peanuts, popcorn, oatmeal, melon seeds, jelly, white sugar, salt, laundry detergent, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Combined Parts:
Inquiry
Features:

1. Efficient: Bag - making, filling, sealing, cutting, heating, date / lot number achieved in one time.

2. Intelligent: Packing speed and bag length can be set through the screen without part changes.

3. Profession: Independent temperature controller with heat balance enables different packing materials.

4. Characteristic: Automatic stop function, with safe operation and saving the film.

5. Convenient: Low loss, labor saving, easy for operation and maintenance.
Application:

1. Food Industry: peanuts, popcorn, jelly, data, garlic, beans, grains, soybeans, pistachios, walnuts, rice, corn, sunflower seeds, melon seeds, coffee beans, potato chips, banana chips, plantain chips, chocolate ball, shrimp, sweet candy, sugar, tea, herbs, Chinese medicine, puffed food, dry food, frozen food, frozen vegetables, frozen pea, frozen fish ball, frozen pie, and other granule products.

2. Pet Food Industry: dog food, bird food, cat food, fish food, poultry food and etc.

3. Hardware Industry: plastic pipe elbows, nails, bolts and nuts, buckles, wire connectors, screws and other construction products.



Videos Introduction:
Specification:
Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm
Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm
Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm
Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min
Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm
Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L
Combined Parts:

LD series main frame

Screw metering machine

Screw infeed conveyor

Product conveyor
