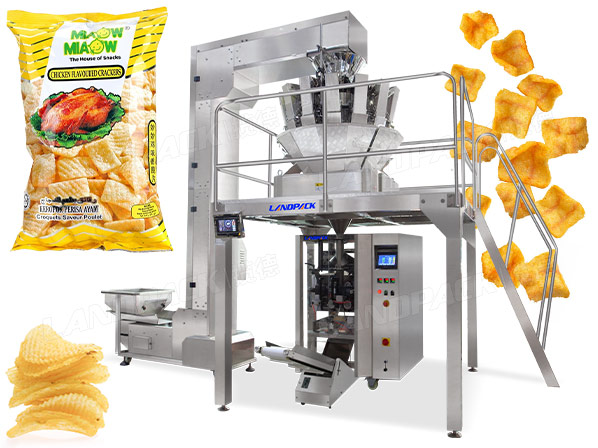

Automatic Chips Snack Popcorn Vertical Form Fill Seal Machine(VFFS) With Multihead Weigher

Application:

Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as potato chips, beef jerky, coffee beans, candy, sunflower seeds, peanut, nuts, beans, popcorn, almond, dry fruit, frozen food, jelly, biscuit, chocolate, pet food, dilatant foodstuff, hardware and plastic.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Tel/Whtasapp: +86 18688215960
Features:
Application:
Videos Introduction:
Specification:
Combined Parts:
Inquiry
Features:

Multi-head combined weigher, improve metering speed and accuracy.

7inch touch screen, easy operation and multiple language for choice.

Imported PLC system, machine performance is stable and easy for parameters adjusting.

With a memory function for storage ten sets of parameters. Easy to change packing product.

Separate PID temperature controller, suitable for various packing materials.

Multi-union roll film pulling system make film running more smooth.

Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

Sophisticated sealing framework achieve the consistency of bag sealing and cutting.

Machine automatically finish the process of filling, metering, bag forming, date printing, sealing and packing.

Low loss, labor saving, easy for operation and maintenance.
Application:

Suitable for packing all kinds of grain material, sheet material, strip material and abnormity material which such as potato chips, beef jerky, coffee beans, candy, sunflower seeds, peanut, nuts, beans, popcorn, almond, dry fruit, frozen food, jelly, biscuit, chocolate, pet food, dilatant foodstuff, hardware and plastic.
Videos Introduction:
Specification:
Model LD-420 LD-520 LD-720 LD-900 LD-1050 LD-1200
Film Thickness 0.04-0.08mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm 0.04-0.12mm
Bag Length 80-300mm 80-350mm 100-500mm 100-600mm 100-800mm 100-1000mm
Bag Width 60-200mm 100-250mm 180-350mm 260-430mm 290-505mm 290-580mm
Film Roll Diameter Max.320mm Max.320mm Max.320mm 400mm 400mm 400mm
Pakaging Rate 5-60bag/min 5-60bag/min 5-55bag/min 5-20bag/min 5-20bag/min 5-20bag/min
Film Width Max.420mm Max.520mm 150-Max.720mm Max.900mm Max.900mm Max.1200mm
Measurement Range 150-1500ml 5-2000ml 4000ml 1-25L 1-25L 1.5L-45L
Combined Parts:

LD series main frame

Screw metering machine

Screw infeed conveyor

Product conveyor
