Food Security Detector Conveyor Belt Metal Detector

Application:

Food Security Metal Detector is is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc. Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Tel/Whtasapp: +86 18688215960
Feature:
Application:
System Composition:
Specification:
Samples:
Inquiry
Feature:

Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of test material.

Detector with audible and visual alarm, and automatically exclude, stop, rewind functions, user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.

Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.

Detection accuracy over the corresponding provisions of HACCP system Detect indicators.

Can use with production line.
Application:

Food Security Metal Detector is is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc. Besides it can also be used for the detection of metallic impurities in chemicals, rubber, plastics, textiles, leather, chemical fiber, toys as well as for the detection of metallic impurities in pharmaceuticals, health products, biological products, cosmetics, gifts, packaging, papers, and so on.
System Composition:

Detection system:Dual-channel metal detection coil with rectangular aperture (no points)

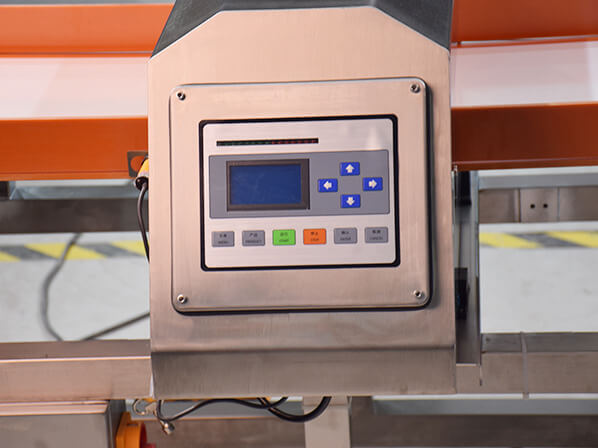

Control system: ADLINE microprocessor controller ,Level of protection: IP 65

Conveyors: high strength mirror stainless steel structure with all welded.

Joint-body PU (polyurethane) conveyor belt ,Anti-crooked running treatment for the conveying belt.

Different kinds of excluded institutions: plate over ,wall rod and rocker arm and blowing
Specification:

Detecting width 45-80cm
Detecting height 10-45cm
Detecting sensitivity Fe 0.7mm-3.0mm ,US304 1.5mm-5.0mm
Sensitivity adjustment 10 level adjustment
Detecting adjustment Manual and belt stop
Belt Speed 25m /min
Alarm mode The buzzer alarm, the motor automatically stop
Power AC100-265V,50-60Hz Single phase
Size (150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)
